Compact Slip Ring with 7 Power Channels and 2 Pneumatic Channels Featuring IP51 Protection
Compact Slip Ring with 7 Power Channels and 2 Pneumatic Channels Featuring IP51 Protection
Specifications
Brand Name :
Panlink
Model Number :
PSR-C12-7-RC2
Certification :
ISO 9001: 2015, CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
40 Million a Year
Delivery Time :
4 Weeks
Packaging Details :
Carton Box, EPE Foam, Wooden Box(For Large Goods)
Fluid Channel :
2
Max Pressure & Media :
145PSI (10bar), Air
Connector Size :
M5
Protection Degree :
IP51(higher or lower on request)
Description

Synchronized rotary transmission of 7 power channels + 2 pneumatic channels within an extremely confined space

PSR-C12-7-RC2

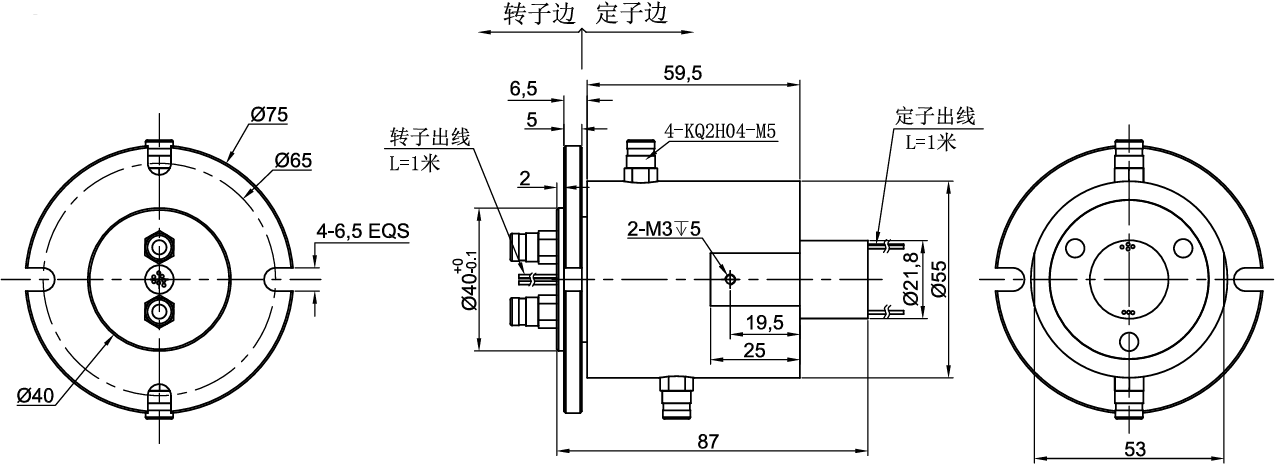

Dimensions in millimeters

Compact Slip Ring with 7 Power Channels and 2 Pneumatic Channels Featuring IP51 Protection

Specification

Circuits 7 for Power Transmission, 2 for Fluid Transmission
Fluid Rotary Union Specifications
Max Pressure & Media 145PSI (10bar), Air
Connector Size M5
Torque 1N•m
Electrical Specifications
Voltage Rating 24VDC
Current Rating 1A
Insulation Resistance Max 200MΩ @ 500VDC
Dielectric Noise 300VDC @ 50Hz, 60s
Electric Noise Max 40mΩ
Lead Cable AWG28 Teflon
Mechanical Specifications
Rotating Speed 300rpm
Operating Temperature -4℉ to +176℉ (-20℃ to +80℃)
Storage Temperature -4℉ to +185℉ (-20℃ to +85℃)
Operating Humidity 0~95%RH
Torque 1.0 N•m
Contact Material Precious Metal
Housing Material Aluminum Alloy
Protection Degree IP51(higher or lower on request)
Shock GB/T 2423.5 (IEC 60068-2-27)
Vibration GB/T 2423.10 (IEC 60068-2-6)
