Pneumatic Rotary Joint

Available in single and multi-channel passage models, the Panlink air rotary joints are designed for air, gas and vacuum use and are ideal for a number of automation and robotic applications. These compact rotary joints feature independent flow passages capable of transferring different types of media simultaneously.

Need to combine fluid with electrical power, signal and/or data transfer? No problem. Panlink hybrid rotary joints are designed to integrate directly with our standard electrical slip rings.

Features Typical Applications
• Transmit Pneumatic, such as steam, compressed air.... • Automation
• Can combine to transmit power and signals • Medical technology
• Pneumatic passage can be customized • Packaging industry
• Standard ports optional • Machine tools
• Support various pipes of 4mm,6mm,8m,10mm,12mm,15mm,etc • Food processing
• More specification can be customized: port size, gas passage no., electrical channel no., etc

Model Passages Port Size

Pipe Size

(mm)

Overall Length

(mm)

Housing Diameter

(mm)

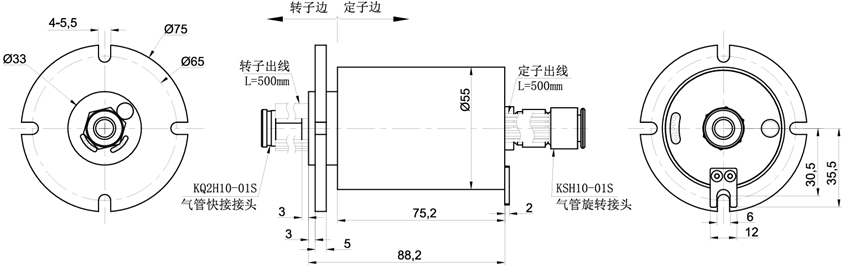

PSR-T12S-8P1G-1RC 1 RC1/8′′ 10 88.2 75
PSR-T25S-3P1E-1RC 1 8 82 105
PSR-F20-10S-RC2 2 4-M5 4 125.5 55
PSR-C12-7-RC2 2 4-M5 4 87 75

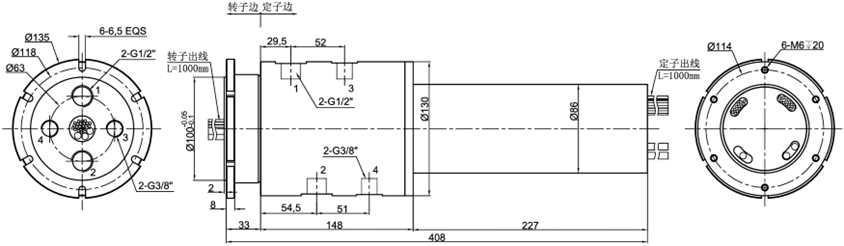

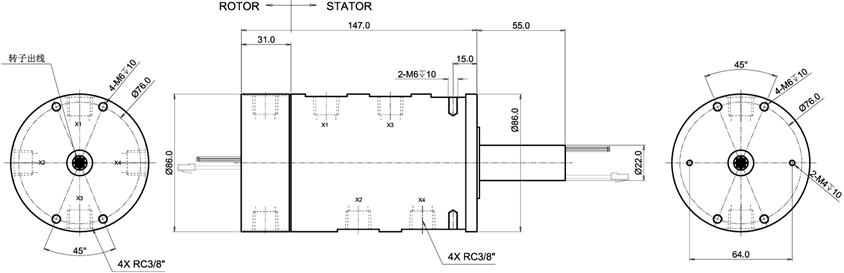

PSR-C36-6P2G-4Rc3 4 RC3/8′′ 147 86
PSR-C44-4RC1 4 RC1/8′′ 8 136 125
PSR-T25-22P3G-4RC 4

G1/2′′(1~2)

G3/8′′(3~4)

16(1~2)

12(3~4)

 408 135
PRG-T0-16RC 16 16-M5 6 161.5 64

Specification
Model PSR-T12S-8P1G-1RC
Circuit 17
Voltage 24VDC
Current

Power: 8x5A

1Gbit Ethernet: 8x2A
Insulation Resistance 500MΩ@500VDC
Electrical Noise 40mΩ max
Dielectric Strength 500VAC@50Hz
Operating Speed 300rpm
Torque ≤0.5N.m
Contact Material Precious Metal
Housing Material Aluminium Alloy
Working Temperature -20℃~+70℃
Storage Temperature -25℃~+75℃
Humidity 95±3%(30℃+5℃)
Protection Level IP51
Rotary Joint Specification
Channel 1
Pressure 0.6Mpa
Torque T≤0.5N.M
Media Compressed Air
Temperature -25℃~+80℃
Material Aluminum Alloy

Customized Pneumatic Rotary Joint IP51 With Gas And Vacuum Possible

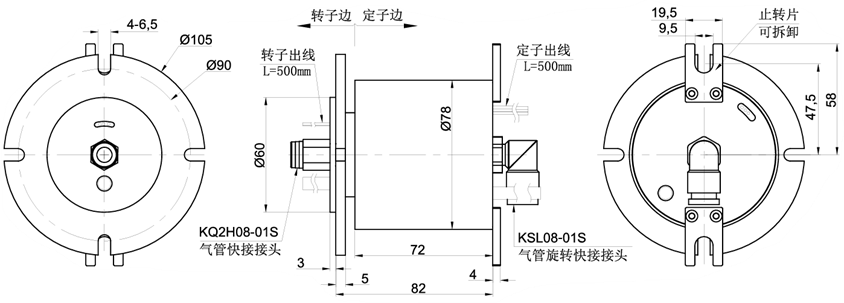

Specification
Model PSR-T25S-3P1E-1RC
Circuit 8
Voltage 220~240VAC
Current

Power: 3x5A

100Mbit Ethernet: 4x2A
Insulation Resistance 500MΩ@500VDC
Electrical Noise 40mΩ max
Dielectric Strength 500VAC@50Hz
Operating Speed 300rpm
Torque ≤1.0N.m
Contact Material Precious Metal
Housing Material Aluminium Alloy
Working Temperature -20℃~+70℃
Storage Temperature -25℃~+75℃
Humidity 95±3%(30℃+5℃)
Protection Level IP51
Rotary Joint Specification
Channel 1
Pressure 0.8Mpa
Torque T≤1.0N.M
Media Compressed Air
Temperature -20℃~+70℃
Material Aluminum Alloy

Customized Pneumatic Rotary Joint IP51 With Gas And Vacuum Possible

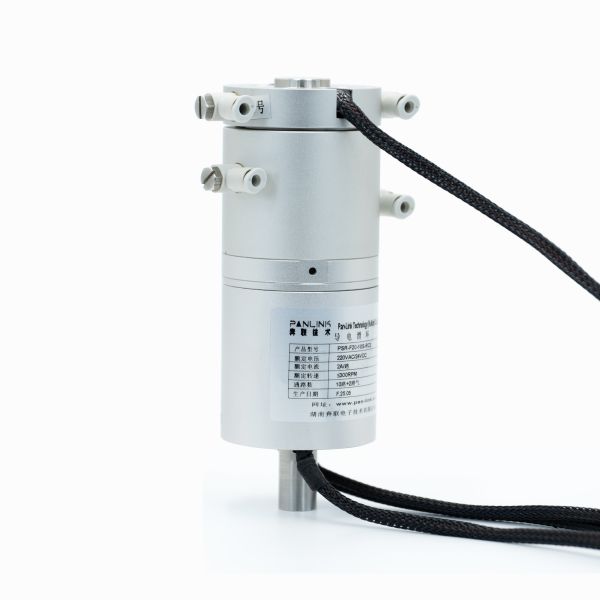

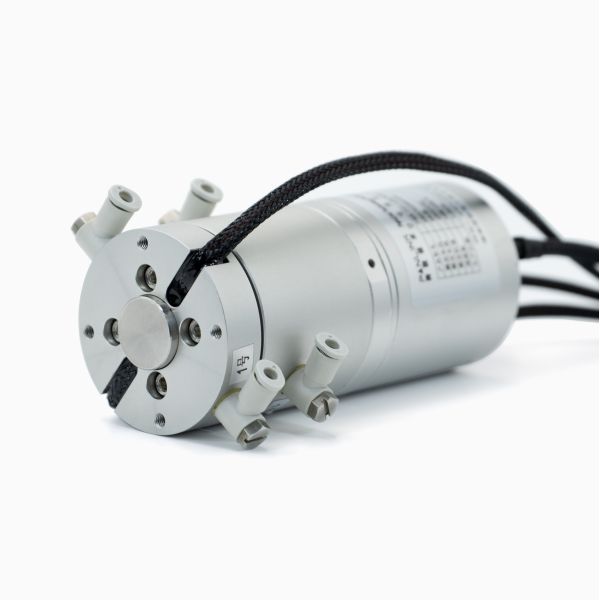

Specification
Model PSR-F20-10S-RC2
Circuit 10
Voltage 220VAC/24VDC
Current 10x2A
Insulation Resistance 200MΩ@500VDC
Electrical Noise 40mΩ max
Dielectric Strength 500VAC@50Hz
Operating Speed 300rpm
Torque ≤1.0N.m
Contact Material Precious Metal
Housing Material Aluminium Alloy
Working Temperature -20℃~+80℃
Storage Temperature -20℃~+85℃
Humidity 95±3%(30℃+5℃)
Protection Level IP51
Rotary Joint Specification
Channel 2
Pressure 1.0Mpa
Torque T≤1.0N.M
Media Compressed Air
Temperature -20℃~+80℃

Customized Pneumatic Rotary Joint IP51 With Gas And Vacuum PossibleCustomized Pneumatic Rotary Joint IP51 With Gas And Vacuum Possible

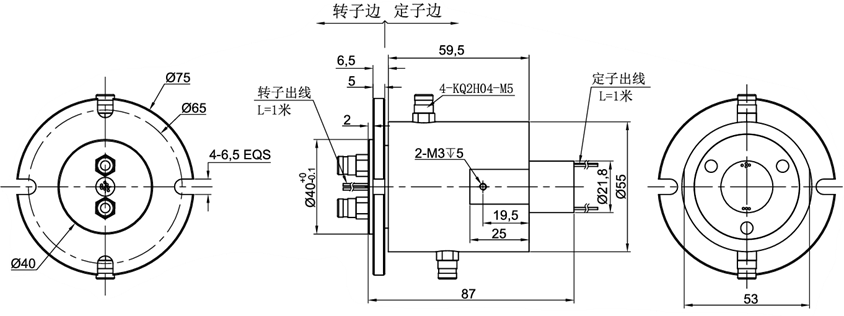

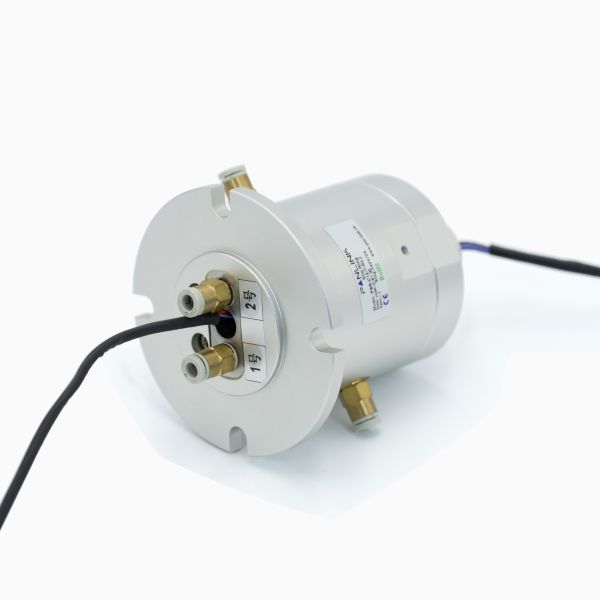

Specification
Model PSR-C12-7-RC2
Circuit 7
Voltage 24VDC
Current 7x1A
Insulation Resistance 200MΩ@500VDC
Electrical Noise 40mΩ max
Dielectric Strength 300VAC@50Hz
Operating Speed 300rpm
Torque ≤1.0N.m
Contact Material Precious Metal
Housing Material Aluminium Alloy
Working Temperature -20℃~+80℃
Storage Temperature -20℃~+85℃
Humidity 95±3%(30℃+5℃)
Protection Level IP51
Rotary Joint Specification
Channel 2
Pressure 1.0Mpa
Torque T≤1.0N.M
Media Air
Temperature -20℃~+80℃

Customized Pneumatic Rotary Joint IP51 With Gas And Vacuum PossibleCustomized Pneumatic Rotary Joint IP51 With Gas And Vacuum Possible

Specification
Model PSR-C36-6P2G-4Rc3
Circuit 24
Voltage 220VAC/24VDC
Current 5 A/ Way
Insulation Resistance 500MΩ@500VDC
Dynamic Resistance Variation Value ≤10mΩ
Dielectric Strength 500VAC@50Hz
Operating Speed 300rpm
Torque ≤0.1N.m
Contact Material Precious Metal
Housing Material Aluminium Alloy
Working Temperature -20℃~+80℃
Storage Temperature -25℃~+85℃
Humidity 95±3%(30℃+5℃)
Protection Level IP51
Rotary Joint Specification
Channel 4
Pressure 1.0Mpa
Torque T≤1.0N.M
Media Air
Temperature -20℃~+70℃
Material Aluminum Alloy

Customized Pneumatic Rotary Joint IP51 With Gas And Vacuum Possible

Specification
Model PSR-C44-4RC1
Circuit 44
Voltage 380VAC/24VDC
Current 2 A/Way
Insulation Resistance 200MΩ@500VDC
Electrical Noise 20mΩ max
Dielectric Strength 200VAC@50Hz
Operating Speed 300rpm
Torque ≤1.0N.m
Contact Material Precious Metal
Housing Material Aluminium Alloy
Working Temperature -20℃~+80℃
Storage Temperature -20℃~+85℃
Humidity 95±3%(30℃+5℃)
Protection Level IP51
Rotary Joint Specification
Channel 4
Pressure 0.6Mpa
Torque T≤1.0N.M
Media Compressed Air
Temperature -20℃~+80℃

Customized Pneumatic Rotary Joint IP51 With Gas And Vacuum Possible

Specification
Model PSR-T25-22P3G-4RC
Circuit 49
Voltage 380VAC
Current 20 A/Way
Insulation Resistance 500MΩ@1000VDC
Electrical Noise 40mΩ max
Dielectric Strength 500VAC@50Hz
Operating Speed 300rpm
Torque ≤1.0N.m
Contact Material Precious Metal
Housing Material Aluminium Alloy
Working Temperature -30℃~+80℃
Storage Temperature -30℃~+85℃
Humidity 95±3%(30℃+5℃)
Protection Level IP51
Rotary Joint Specification
Channel 4
Pressure 1.0Mpa
Torque T≤1.0N.M
Media Compressed Air
Temperature -30℃~+80℃

Customized Pneumatic Rotary Joint IP51 With Gas And Vacuum Possible

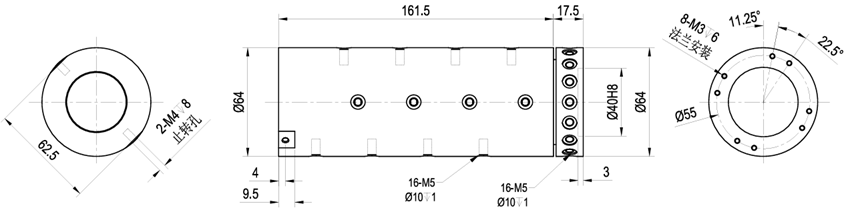

Rotary Joint Specification
Model PRG-T0-16RC
Channel 16
Pressure -100KPa~<1MPa
Torque 10N.M
Media Air & Nitrogen & Vacuum
Temperature -20℃~+80℃
Speed 100rpm
Working Temperature -20℃~+80℃
Lifetime 5 million revolutions
