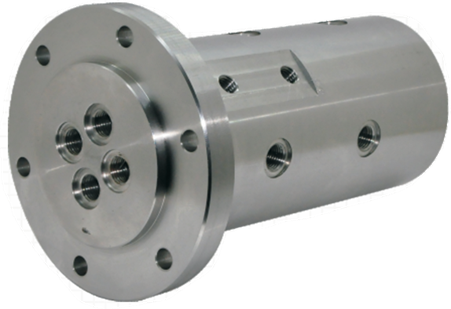

280L/min 35MPa Oil Rotary Joint Customizable Installation Flanges
280L/min 35MPa Oil Rotary Joint Customizable Installation Flanges
Specifications
Brand Name :
Panlink
Certification :
ISO 9001: 2015, CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Packaging Details :
Carton Box, EPE Foam, Wooden Box(For Large Goods)
Name :
Fluid Rotary Joint
Transmission medium :
hydraulic oil
Transmission channels :
2-4 Channels
Transmission pressure :
35MPa
Flow rate :
280L/min
Price :
Negotiable
Delivery Time :
4 Weeks
Supply Ability :
40 Million a Year
Description

Oil Rotary Joint Customizable Installation Flanges to Meet Specific Customer Requirements

Oil Rotary Joint

Specification

 280L/min 35MPa Oil Rotary Joint Customizable Installation Flanges
• Transmission medium: hydraulic oil.
• Transmission channels: 2-4 channels.
• Transmission pressure: 35MPa.
• Flow rate: 280L/min.

Feature
• Customizable installation flanges to meet specific customer requirements.
• Equipped with a double seal shaft for enhanced protection.
• Houses the mechanism in a stainless steel casing for durability.
• Utilizes a hardened steel spindle for strength and longevity.
• Designed to work in conjunction with electric slip rings to facilitate the comprehensive transmission of hydraulic power, electrical power, and control signals.
• Optional customer mounting flanges available.
• Offers a customizable pipeline interface.
• Can be integrated with any channel-specific electric slip ring.
• Compatibility with encoders for enhanced functionality.
