Specifications
Brand Name :
Panlink
Model Number :
PSR-T50-5P5S-E
Certification :
ISO 9001: 2015, CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
40 Million a Year
Delivery Time :
4 Weeks
Packaging Details :
Carton Box, EPE Foam, Wooden Box(For Large Goods)
100M Ethernet Transmission :
1 Channel
Fluid Transmission :
3 Channel
Max Pressure & Media :
(1×) 145PSI (10bar) Air, (1×) 145PSI (10bar) Nitrogen, (1×) -10.15PSI (-0.7bar) Vacuum
Connector Size :
G1/8´´(Air, Nitrogen), M5(Vacuum)
Rotating Speed :
250rpm
Protection Degree :
IP51(higher or lower on request)
Description

3-channel FORJ for Air, Nitrogen and Vacuum Transfer G1/8´´ and M5 with Ethernet Transmission

PSR-T50-5P5S-E

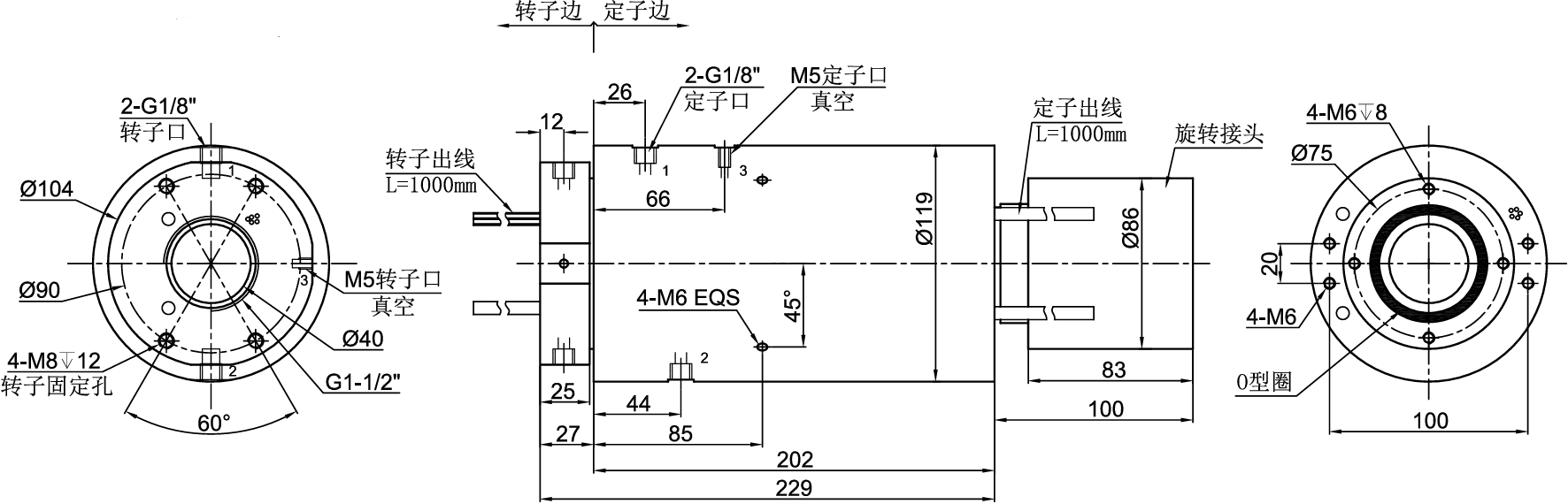

Dimensions in millimeters

3-Channel FORJ with Ethernet Transmission for Air, Nitrogen, and Vacuum Transfer Featuring G1/8'' and M5 Connectors

Specification

Circuits 5 for Power Transmission, 4 for Signal Transmission, 1 for 100M Ethernet Transmission, 3 for Fluid Transmission
Fluid Rotary Union Specifications
Max Pressure & Media (1×) 145PSI (10bar) Air, (1×) 145PSI (10bar) Nitrogen, (1×) -10.15PSI (-0.7bar) Vacuum
Connector Size G1/8´´(Air, Nitrogen), M5(Vacuum)
Housing Material Aluminum Alloy
Operating Temperature -22℉ to +176℉ (-30℃ to +80℃)
Electrical Specifications
Voltage Rating 24VDC/VAC
Current Rating 1A, 10A
Insulation Resistance Max 500MΩ @ 500VDC
Dielectric Noise 500VAC @ 50Hz, 60s
Electric Noise Max 40mΩ
Lead Cable Teflon Wire, CAT6A
Mechanical Specifications
Rotating Speed 250rpm
Operating Temperature -22℉ to +176℉ (-30℃ to +80℃)
Storage Temperature -22℉ to +185℉ (-30℃ to +85℃)
Operating Humidity 0~95%RH
Torque 15.0 N•m
Contact Material Precious Metal
Housing Material Aluminum Alloy
Protection Degree IP51(higher or lower on request)
Shock GB/T 2423.5 (IEC 60068-2-27)
Vibration GB/T 2423.10 (IEC 60068-2-6)
