Specifications
Brand Name :
IRS4
Model Number :
PE300BFA
Place of Origin :
USA
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000PCS
Delivery Time :
5-8 work days
Packaging Details :
Standard packaging
Nominal Power :
300 watts
Power Range :
180 - 320 watts
Nominal Current :
21 amps (DC)
Current Range :
10 - 22 amps (DC)
Ignition Voltage :
23 - 35 kilovolts
Nominal Operating Voltage :
14 volts (DC)
Description

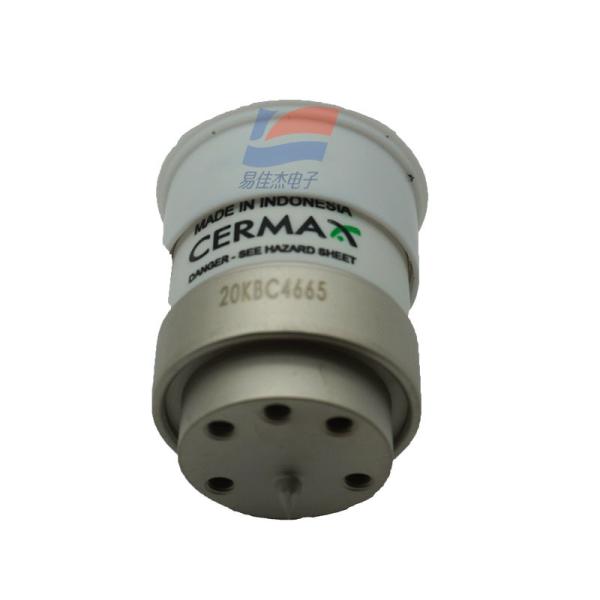

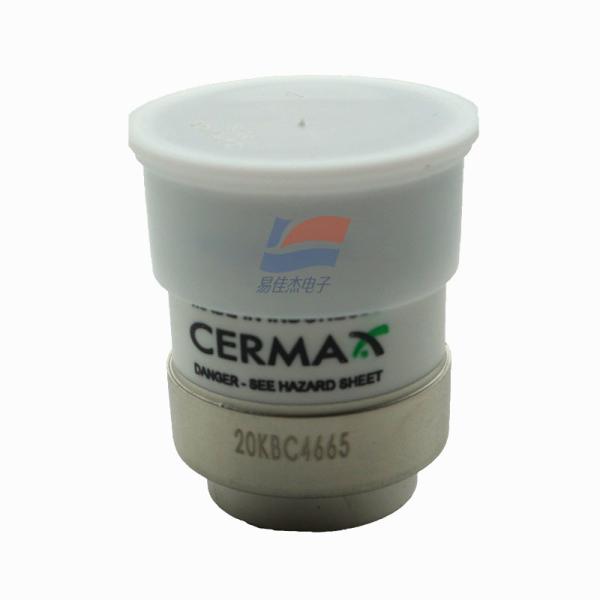

PE300BFA 300W Xenon Lamp Cold Light Bulb for Medical Endoscopy

Application Scenarios:

  • Medical Endoscopy: It serves as a cold light source for endoscope devices such as electronic gastroscopes and laparoscopes, providing illumination for medical examinations.
  • Surgical Microscopes: It offers bright and clear lighting during surgical procedures, helping surgeons observe the surgical site more clearly.
  • Phototherapy: In some medical treatments, such as phototherapy, it provides the required light source.
  • Industrial Applications: It is used in machine vision, spectroscopy, UV curing, video projection, and other industrial fields.

Product Features:

  • High Brightness: It provides a visible light output of 5000 lumens, ensuring the need for brightness in medical imaging and diagnosis.
  • Broad Spectral Range: The spectral range of the xenon lamp is wide, from ultraviolet to infrared, which is suitable for a variety of medical and scientific applications.
  • Quick Start and Instant Switch: It can be started and turned off immediately without preheating or cooling, improving use efficiency.
  • Long Lifespan: The typical lifespan is 1000 hours, which reduces the frequency of bulb replacement and maintenance costs.
  • Environment - Friendly: It does not contain mercury and is pollution - free to the environment.
  • High Color Temperature: The color temperature is about 5800K, which is close to natural light and helps to more accurately observe the color of tissues and blood vessels.
  • Compact Design: Its compact design allows it to provide high - intensity illumination while maintaining a small size and weight, making it easy to integrate into various medical devices....

Manufacturer Product Number PE300BFA
Series Cermax®
Type Short - arc Parabolic Lamp
Style Ceramic Body
Nominal Power 300 watts
Power Range 180 - 320 watts
Nominal Current 21 amps (DC)
Current Range 10 - 22 amps (DC)
Ignition Voltage 23 - 35 kilovolts (system dependent)
Nominal Operating Voltage 14 volts (DC)
Operating Voltage Range 13 - 16 volts (DC)
Lifetime 1000 hours typical
Maximum Temperature 150 °C
Total Visible Output 5000 lumens
Radiant Output 50 watts
UV Output (<390 nm) 2.6 watts
IR Output (>770 nm) 29 watts
Reflector Type Parabolic
Window Diameter 1 inch (25.4 mm)
Focused Output (8mm Aperture) 3130 lumens, 29 watts
Focused Output (6mm Aperture) 1410 lumens, 14 watts
Peak Intensity 3.0 x 10^5 candelas
Color Temperature 5600 - 5900 kelvin
Arc Gap 0.049 inches (1.24 mm)
Cathode Defocus 'd' 0.003 inches (0.08 mm)
Weight 132 grams
