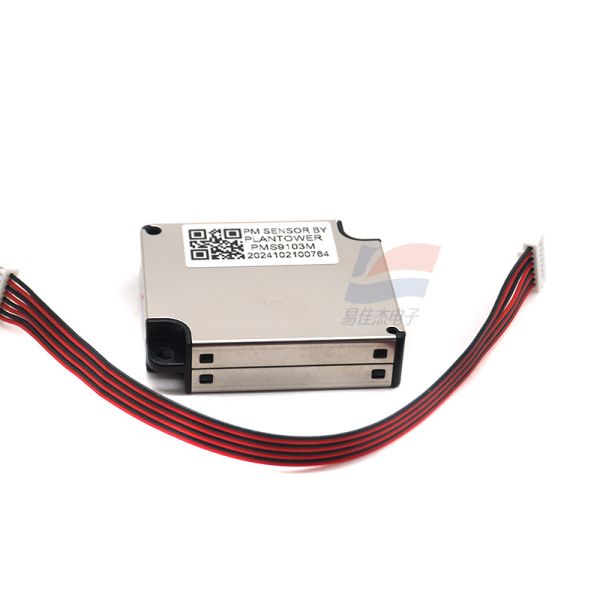

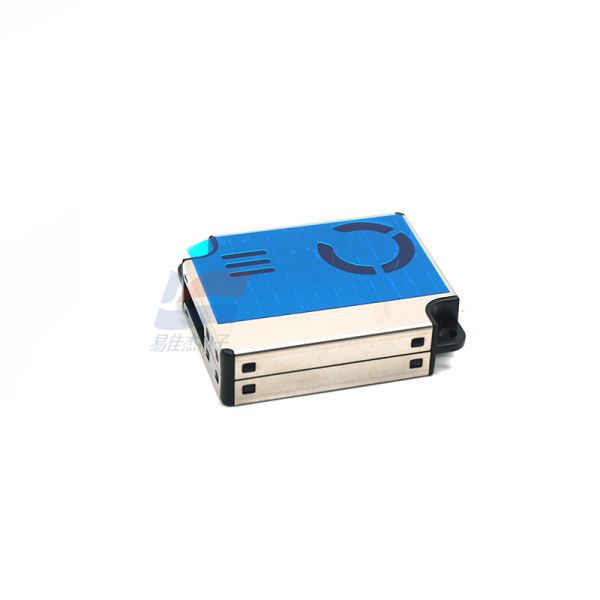

PMS9103M Dust Particle Sensor Module PM2.5 Real Time Response

Main characteristics
* Zero false alarm rate
* Real-time response
* Correct data
* Minimum distinguishable particle diameter :0.3 micrometer
* High anti-interference performance because of the new structure of six sides shielding
* Optional direction of air inlet and outlet in order to adapt the different design

Specification:

Parameter Index Unit
Particle Range of measurement 0.3~1.0; 1.0~2.5; 2.5~10 Micrometer (μm)
Particle Counting Efficiency 50%@0.3μm 98%@≥0.5μm -
Particle Effective Range
(PM2.5 standard)		 0~500 μg/m³
Particle Maximum Range
(PM2.5 standard) *		 ≥1000 μg/m³
Particle Resolution 1 μg/m³
Particle Maximum Consistency Error (PM2.5 standard data) ±10%@100~500μg/m³
±10μg/m³@0~100μg/m³		 -
Particle Standard Volume 0.1 Litre (L)
Single Response Time <1 Second (s)
Total Response Time <10 Second (s)
DC Power Supply Typ: 5.0 Min:4.5 Max:5.5 Volt (V)
Active Current ≤100 Milliampere (mA)
Standby Current ≤10
