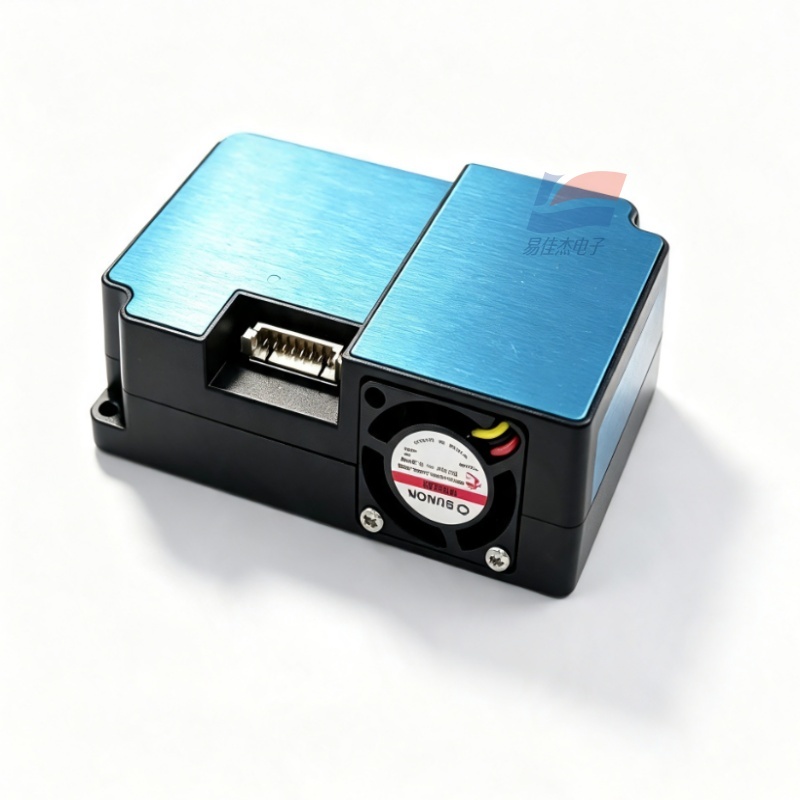

YJJ PMS1003 Laser PM2.5 PM10 Dust Sensor UART Digital Air Particle Detection Module

Features:

I. Product Introduction

PMS1003 is a general-purpose laser scattering type particulate matter sensor, equipped with a miniature fan for suction and sampling, TTL-UART digital output. It can simultaneously detect multiple particle size ranges of 0.3 - 10 μm dust and output PM1.0/PM2.5/PM10 concentrations. It is mainly used in air detection instruments, purifiers, and environmental monitoring equipment development.

II. Detailed Technical Parameters

Table

Parameter Item Specification Parameters

Detection Principle Laser Mie Scattering

Resolvable Particle Size Ranges 0.3 - 1.0 μm, 1.0 - 2.5 μm, 2.5 - 10 μm

Counting Efficiency 50% @ 0.3 μm; 98% ≥ 0.5 μm

PM2.5 Effective Measurement Range 0 - 500 μg/m³

PM2.5 Overload Measurement Range Up to ≥ 1000 μg/m³

Concentration Resolution 1 μg/m³

Measurement Error 0 - 100 μg/m³: ± 10 μg/m³; 100 - 500 μg/m³: ± 10% FS

Single Sampling Response < 1s; Overall Stable Response ≤ 10s

Standard Sampling Air Volume 0.1L

Power Supply Voltage DC 4.5 - 5.5V, typical 5V

Power Consumption Current ≤ 100mA

Standby Sleep Current ≤ 200μA

Communication Interface TTL-UART (3.3V Level), Sleep/Continuous Sampling Switching

Operating Temperature Range -10°C ~ +60°C

Operating Humidity Range 0 - 95% RH, No Condensation

Storage Temperature Range -40°C ~ +85°C

Overall Size 65 × 42.3 × 23 mm

Mean Time Between Failures ≥ 3 Years

III. Pin Functions

VCC - 5V Power Supply

GND - Ground

SET - Mode Pin; High level for continuous sampling, Low level for sleep and power saving RXD

TXD (3.3V serial port transmission/reception)

RESET reset pin

IV. Main Product Advantages

Built-in fan for active intake, fast detection response

Output of multiple particle size dust quantity, PM1.0/PM2.5/PM10 mass concentration

Support for sleep mode and low power consumption, compatible with battery-powered devices

TTL serial port directly connected to microcontroller, simple development

V. Industry Application Purposes

Household air purifiers, fresh air system dust monitoring probes

Indoor air quality detectors, PM2.5 alarmers

Smart home, building security control systems

Workshop and factory, construction site dust simple monitoring equipment

Outdoor portable environmental detectors, environmental monitoring terminals

Charging piles, control cabinets, air detection in livestock farms
