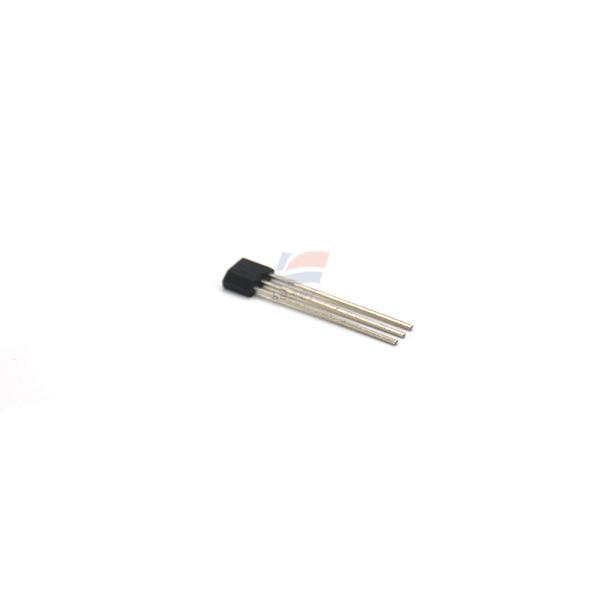

CS3040 Hall - effect sensor Wide Power Supply Voltage Range
CS3040 Hall - effect sensor Wide Power Supply Voltage Range
CS3040 Hall - effect sensor Wide Power Supply Voltage Range
CS3040 Hall - effect sensor Wide Power Supply Voltage Range
CS3040 Hall - effect sensor Wide Power Supply Voltage Range
CS3040 Hall - effect sensor Wide Power Supply Voltage Range
Specifications
Model Number :
CS3040
Place of Origin :
CN
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000PCS
Delivery Time :
5-8 work days
Packaging Details :
Standard packaging
Power supply voltage :
4.5V~24V
Output current :
10mA
Operating environment temperature :
- 40℃~125℃
Storage temperature :
- 55℃~150℃
Description

CS3040 Hall - effect sensor Wide Power Supply Voltage Range

Product Composition:

The CS3040 Hall - effect sensor is composed of a voltage regulator, a Hall voltage generator, a differential amplifier, a Schmitt trigger, and an open - collector output stage.

Working Principle

Its input is the magnetic induction intensity, and the output is a digital voltage signal. It is a unipolar - working magneto - sensitive circuit, suitable for working under rectangular or cylindrical magnets.

Product Features:

  • Wide power supply voltage range.
  • Fast switching speed, no instantaneous jitter.
  • Wide operating frequency range (DC~100KHz).
  • Long service life, small size, and convenient installation.
  • It can be directly interfaced with transistors and logic circuits such as TTL and MOS.

Limit Parameters:

  • Power supply voltage: 4.5V~24V.
  • Magnetic induction intensity: unlimited.
  • Output current: up to 10mA.
  • Operating environment temperature (Type I): - 40℃~125℃.
  • Storage temperature: - 55℃~150℃.

Electrical Characteristics (TA = 25℃)

  • Output low - level voltage: The typical value is 0.05V, and the maximum value is 1.2V when Vcc = 4.5V~24V.
  • Output leakage current: The typical value is 8μA, and the maximum value is 12μA when Vo = Vccmax and VCC is open - circuit.
  • Power supply current: The typical value is 0.12mA~0.14mA.
  • Output rise time: The typical value is 0.12μs when Vcc = 12V and RL = 480Ω.
  • Output fall time: The typical value is 0.14μs when Vcc = 12V and CL = 20pF.

Power Supply Voltage (VCC) 4.5V - 24V
Magnetic Induction Intensity (B) Unlimited
Output Current (IOL) Up to 10mA
Operating Environment Temperature (Type I) - 40℃ - 125℃
Storage Temperature (TS) - 55℃ - 150℃
