MMA8653FCR1 Low - power Three - axis Capacitive Micro - mechanical Accelerometer launched
MMA8653FCR1 Low - power Three - axis Capacitive Micro - mechanical Accelerometer launched
MMA8653FCR1 Low - power Three - axis Capacitive Micro - mechanical Accelerometer launched
MMA8653FCR1 Low - power Three - axis Capacitive Micro - mechanical Accelerometer launched
MMA8653FCR1 Low - power Three - axis Capacitive Micro - mechanical Accelerometer launched
MMA8653FCR1 Low - power Three - axis Capacitive Micro - mechanical Accelerometer launched
Specifications
Model Number :
MMA8653FCR1
Place of Origin :
USA
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000PCS
Delivery Time :
5-8 work days
Packaging Details :
Standard packaging
Resolution :
10 - bit
Supply Voltage :
1.95V to 3.6V
Digital Interface Voltage :
1.62V to 3.6V
Output Data Rate (ODR) :
1.56Hz to 800Hz
Description

MMA8653FCR1 Low - power Three - axis Capacitive Micro - mechanical Accelerometer launched

Product Features:

  • It has embedded functions and flexible user - programmable options, and can be configured with two interrupt pins. The embedded interrupt function can save overall power consumption by reducing the need for the host processor to continuously poll data.
  • It supports accessing low - pass or high - pass filtered data, which minimizes the data analysis required for jitter detection and enables faster switching.
  • The device can be configured to generate inertial wake - up interrupt signals in any combination of embedded functions, allowing the accelerometer to monitor inertial events while remaining in a low - power mode during inactive periods.
  • It has functions such as free - fall state detection, orientation (portrait/landscape) detection with a default hysteresis, and automatic ODR change triggered by sleep state changes. It also has a self - test function to ensure the accuracy and reliability of the sensor.

Application Scenarios:

  • Widely used in tilt compensation of electronic devices, static direction detection, shock and vibration monitoring, and user - interface interaction (such as tilt menu scrolling).
  • Especially useful in portable devices, it can realize motion detection, power - saving mode switching, and real - time activity analysis, such as pedometers and hard - drive free - fall detection.

Package Form:

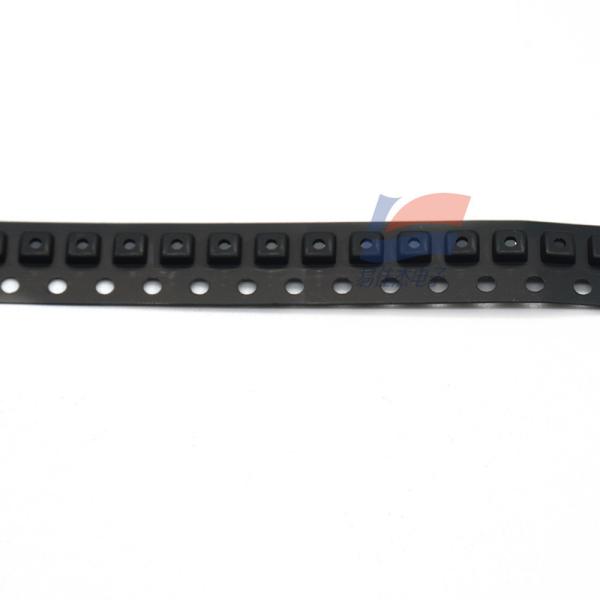

  • Adopts a small - sized 10 - pin DFN package (2mm×2mm×1mm), which is convenient for integration into various compact electronic devices.

Measurement Technology Capacitive Micro - mechanical -
Resolution 10 - bit -
Full - scale Range ±2g, ±4g, ±8g -
Sensitivity 64 LSB/g (for ±8g range), 128 LSB/g (for ±4g range), 256 LSB/g (for ±2g range) -
Output Data Rate (ODR) 1.56 - 800 Hz
Output Type Digital -
Communication Interface I²C -
Supply Voltage 1.95 - 3.6 V
Digital Interface Voltage 1.62 - 3.6 V
Operating Current 184 (Typical) μA
