Specifications
Model Number :
GH-311 GH-311RT
Place of Origin :
CN
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000PCS
Delivery Time :
5-8 work days
Packaging Details :
Standard packaging
Operating Voltage :
DC 5 - 12V
Operating Current :
3mA
Operating Frequency :
40KHz
Ranging Range :
2cm - 4m
Description

GH-311 GH-311RT Ultrasonic Distance Measurement Module Is A High-performance Cost-effective Non-contact Distance Sensing Module

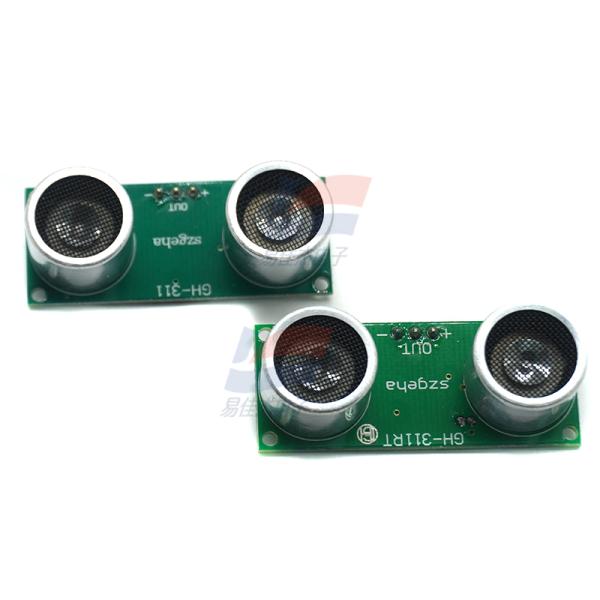

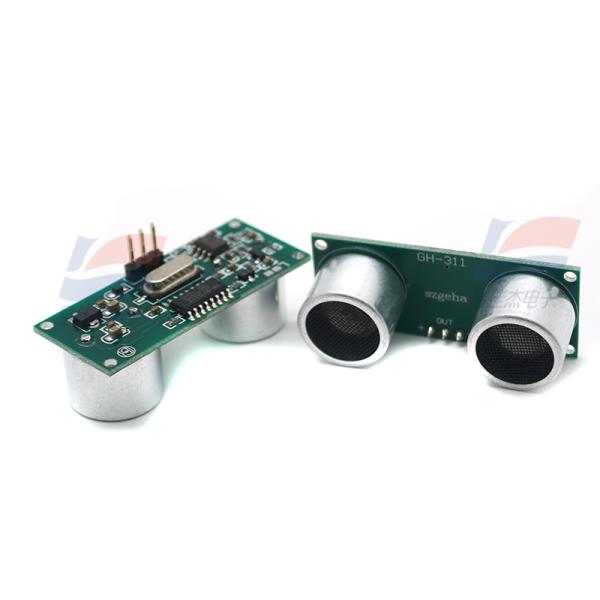

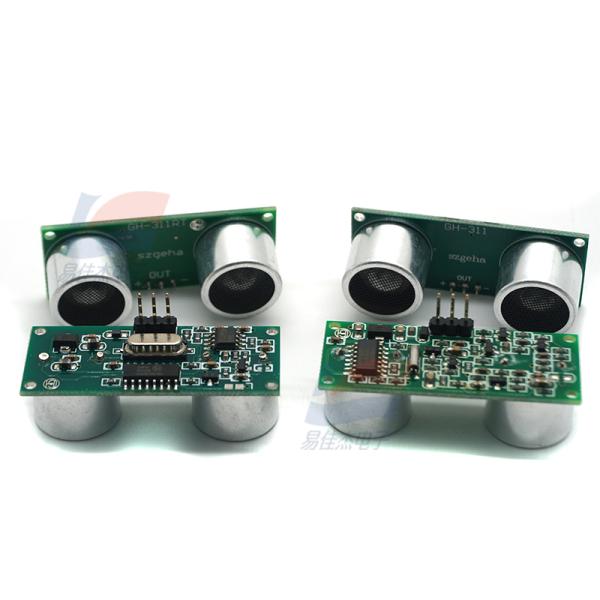

GH-311 ultrasonic ranging module is a high-performance and cost-effective non-contact distance sensing module. It has a measuring range of 0.02 - 4.00 m and a measuring accuracy of 0.5 cm. There is no direct contact with the measured object during measurement, and it can clearly and stably determine the distance of the object.

  • Product Features:

  • Small size and easy to use;
  • Low voltage and low power consumption;
  • Wide measuring range;
  • High measuring accuracy;
  • Small blind zone;

  • Product Applications:

  • Applied in distance measurement occasions;
  • Measuring the distance between objects;
  • Obstacle avoidance for program-controlled cars;
  • Obstacle avoidance for robots;
  • Teaching instruments;
  • Security and industrial control;

Operating Voltage DC 5 - 12V
Operating Current 3mA
Operating Frequency 40KHz
Ranging Range 2cm - 4m
Resolution 1mm
Measuring Angle 30 degrees
Output Switch Quantity
Response Cycle 100ms
Operating Temperature -10 - 60℃
Storage Temperature -20 - 80℃
