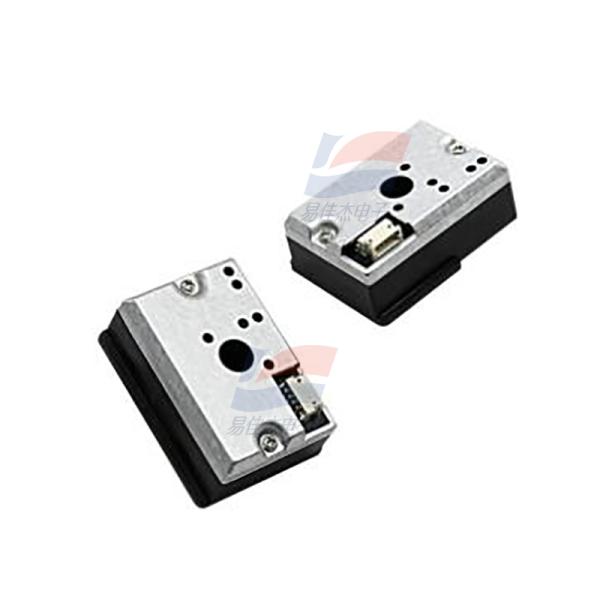

APM3001 Infrared Particle Sensor Low Power Consumption Air Testing
APM3001 Infrared Particle Sensor Low Power Consumption Air Testing
Specifications
Brand Name :
YJJ
Model Number :
APM3001
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000/pcs/month
Delivery Time :
3-5workingdays
Packaging Details :
Standard Package
Power supply voltage :
4.8-5.2V
Working current :
10-12mA
Measurement of particle size :
1-10um
Particle concentration range :
0-1000m3
Description

APM3001 Infrared Particle Sensor Low Power Consumption Air Testing

Infrared particle sensor
• Strong anti-interference ability
• Low power consumption
• Wide measurement range
• Fast response
• Integrated MCU, output concentration value (μg/m3)
• Compact size, length 46.3× width 34.2× height 19mm

Product Description
The infrared particle sensor uses the principle of light scattering to detect the concentration of particles in the air (particle size between 1 and 10 μm). It has a built-in infrared light-emitting diode and a photoelectric sensor. The light emitted by the light-emitting diode will be scattered when passing through the particles. The photoelectric sensor can calculate the concentration of particles in the air by detecting the intensity of the scattered light. The sensor supports the UART/PWM interface to output the measured value.

Specification:

Data refresh rate 1S
Power-on stabilization time 60S
Response time 8S
Lifespan >5Y
Dimensions 46.3×34.2×19mm
Operating temperature -20~75℃
Storage temperature -40~85℃
