MMA8451QT MMA8452QT Accelerometers Digital accelerometer 3 Axis
MMA8451QT MMA8452QT Accelerometers Digital accelerometer 3 Axis
MMA8451QT MMA8452QT Accelerometers Digital accelerometer 3 Axis
MMA8451QT MMA8452QT Accelerometers Digital accelerometer 3 Axis
MMA8451QT MMA8452QT Accelerometers Digital accelerometer 3 Axis
MMA8451QT MMA8452QT Accelerometers Digital accelerometer 3 Axis
MMA8451QT MMA8452QT Accelerometers Digital accelerometer 3 Axis
MMA8451QT MMA8452QT Accelerometers Digital accelerometer 3 Axis
Specifications
Brand Name :
YJJ
Model Number :
MMA8451QT MMA8452QT
Place of Origin :
USA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000pcs/Month
Delivery Time :
3-5workingdays
Packaging Details :
Standard Package
Sensor Type :
3-axis
Sensing Axis :
X, Y, Z
Acceleration :
2 g, 4 g, 8 g
Sensitivity :
1024 counts/g, 2048 counts/g, 4096 counts/g
Description

MMA8451QT Accelerometers Digital accelerometer 3 Axis

The MMA8451Q is a smart, low-power, three-axis, capacitive, micromachined accelerometer with 14 bits of resolution. This accelerometer is packed with embedded functions with flexible user programmable options, configurable to two interrupt pins. Embedded interrupt functions allow for overall power savings relieving the host processor from continuously polling data. There is access to both low-pass filtered data as well as high-pass filtered data, which minimizes the data analysis required for jolt detection and faster transitions. The device can be configured to generate inertial wakeup interrupt signals from any combination of the configurable embedded functions allowing the MMA8451Q to monitor events

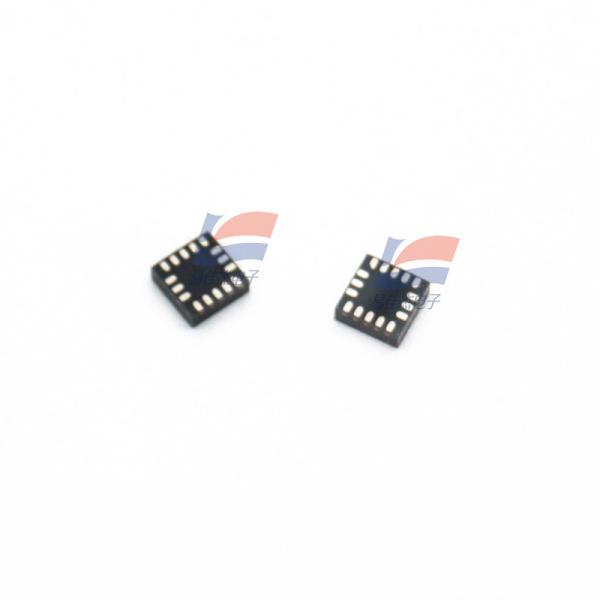

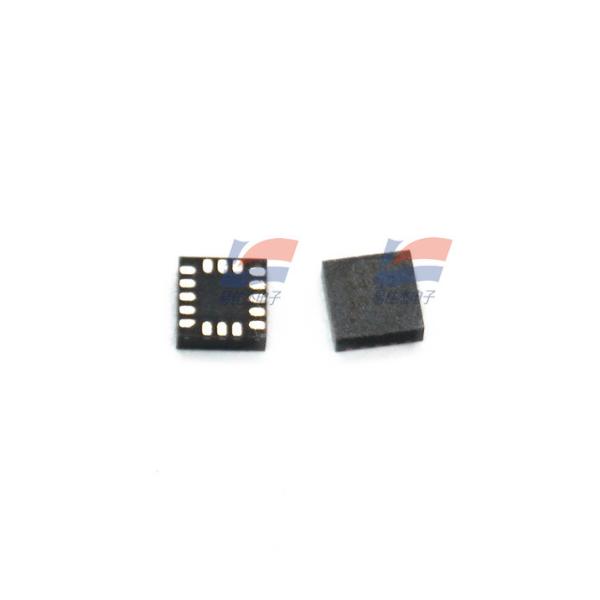

and remain in a low-power mode during periods of inactivity. The MMA8451Q is available in a 16-pin QFN, 3 mm x 3 mm x 1 mm package.

Output Type
 Digital
Interface Type I2C
Resolution 8 bit, 14 bit
Supply Voltage - Max 3.6 V
Supply Voltage - Min 1.95 V
Operating Supply Current 165 uA
Minimum Operating Temperature - 40℃
Maximum Operating Temperature + 85℃
Mounting Style SMD/SMT
Package / Case QFN-16
