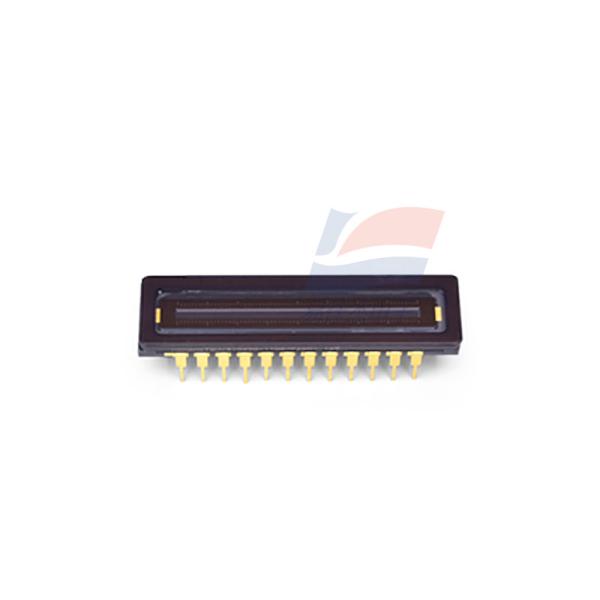

S11156-2048-02 CCD Linear Image Sensor Back Illuminated With Electronic Shutter
S11156-2048-02 CCD Linear Image Sensor Back Illuminated With Electronic Shutter
Specifications
Brand Name :
Hamamatsu
Certification :
S11156-2048-02
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, ,
Supply Ability :
1000pcs/Month
Delivery Time :
3-5workingdays
Packaging Details :
Standard Package
Type :
Built-in electronic shutter type
Image size :
28.672 x 1.000 mm
Number of effective pixels :
2048 x 1 pixel
Pixel size :
14 x 1000 μm
Description

S11156-2048-02 CCD Linear Image Sensor Back Illuminated With Electronic Shutter

The S11156-2048-02 is a back-illuminated CCD linear image sensor with built-in electronic shutter for spectrometers. The image sensor uses a resistive gate structure for high-speed transmission. The pixel length meets the requirements of spectrometers, but the image delay is low during readout. The image delay is reduced by nearly 10 orders of magnitude compared to the previous generation (S11156-2048-01). It should be noted that the transmittance at long wavelengths in the dead layer covering the horizontal shift register is reduced compared to the previous generation.

Features
-Built-in electronic shutter
-Minimum integration time: 2 us
-High sensitivity in the UV region (spectral response range: 200 to 1100 nm)
-Readout speed: max. 10 MHz -
Image lag: typ. 0.1%.

Datasheet:

Spectral response range 200 to 1100 nm
Line rate (typical) 2327 lines/sec
Line rate (maximum) 4633 lines/sec
Dark current (typical) 15000 electrons/pixel/sec
Read noise (typical) 30 electrons rms
Cooling Uncooled
Window material Quartz
