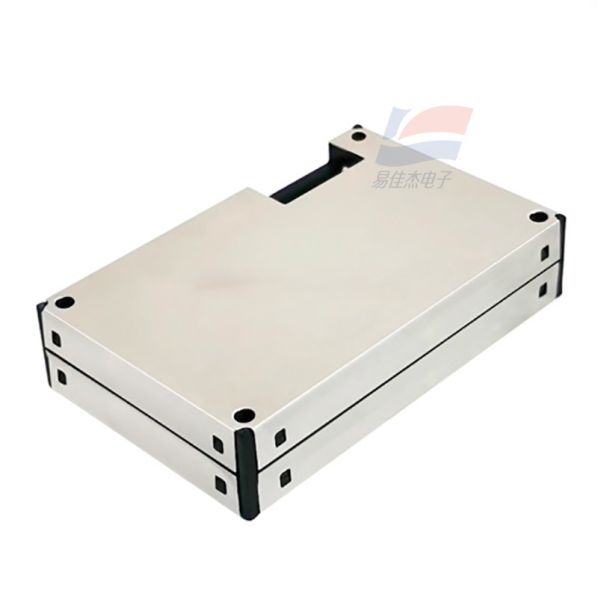

YJJ APM10 laser Scattering Principle Of laser Particulate Sensor Is Applied To Fresh Air System
YJJ APM10 laser Scattering Principle Of laser Particulate Sensor Is Applied To Fresh Air System
YJJ APM10 laser Scattering Principle Of laser Particulate Sensor Is Applied To Fresh Air System
YJJ APM10 laser Scattering Principle Of laser Particulate Sensor Is Applied To Fresh Air System
Specifications
Brand Name :
YJJ
Model Number :
APM10
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1500
Delivery Time :
5-8 days
Packaging Details :
Palletized
Standby Current‌ :
Less than 3mA
‌Size‌ :
49×31.5×10.8mm
‌Temperature Range‌ :
-10°C to +70°C
‌Resolution‌ :
1 μm resolution
‌Data Refresh Rate‌ :
Up to 1 times per second
Stability‌ :
Fully metal shielded casing
‌Concentration range‌ :
0 - 1000μg/m³
Particle size range‌ :
0.3μm to 10μm
Description

Product Description:

YJJ APM10 laser Scattering Principle of laser Particulate Sensor Is Applied to Fresh Air System

Features:

Working principle

Based on the principle of laser scattering, by measuring the scattering intensity of particles in the air, combined with the Mie theory, the concentration and size distribution of particles can be calculated.

Measurement range

‌Particle size range‌: 0.3μm to 10μm

‌Concentration range‌: 0 - 1000μg/m³ (measurement accuracy of PM2.5 concentration ±15% of reading)

Technical Specifications

‌Supply Voltage‌: 4.75~5.25V DC

‌Operating Current‌: Approximately 50mA

‌Standby Current‌: Less than 3mA

‌Size‌: 49×31.5×10.8mm (Ultra-thin design)

‌Temperature Range‌: -10°C to +70°C (Operation), -30°C to +85°C (Storage)

Performance Characteristics

‌Resolution‌: 1 μm resolution

‌Data Refresh Rate‌: Up to 1 times per second

‌Stability‌: Fully metal shielded casing, strong anti-interference capability

‌Calibration Method‌: Self-calibration upon startup

Application scenario

Suitable for devices such as air purifiers, fresh air systems, air conditioners, etc., and supports digital output interfaces (such as UART/I²C).

Specifications:

Particle size range‌ 0.3μm to 10μm
‌Concentration range‌ 0 - 1000μg/m³
Supply Voltage‌ 4.75~5.25V DC
Operating Current‌ Approximately 50mA
