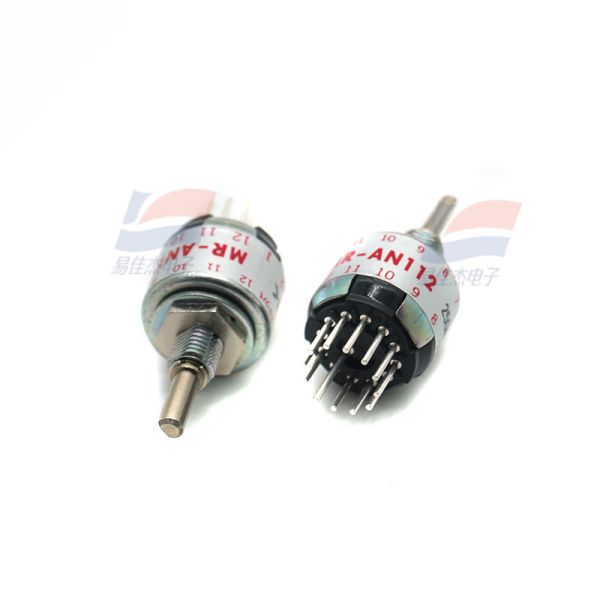

MR-AN112 High-reliability Mechanical Switch Designed For On/off Control In Industrial
MR-AN112 High-reliability Mechanical Switch Designed For On/off Control In Industrial
MR-AN112 High-reliability Mechanical Switch Designed For On/off Control In Industrial
MR-AN112 High-reliability Mechanical Switch Designed For On/off Control In Industrial
MR-AN112 High-reliability Mechanical Switch Designed For On/off Control In Industrial
MR-AN112 High-reliability Mechanical Switch Designed For On/off Control In Industrial
MR-AN112 High-reliability Mechanical Switch Designed For On/off Control In Industrial
MR-AN112 High-reliability Mechanical Switch Designed For On/off Control In Industrial
MR-AN112 High-reliability Mechanical Switch Designed For On/off Control In Industrial
MR-AN112 High-reliability Mechanical Switch Designed For On/off Control In Industrial
MR-AN112 High-reliability Mechanical Switch Designed For On/off Control In Industrial
MR-AN112 High-reliability Mechanical Switch Designed For On/off Control In Industrial
Specifications
Model Number :
MR-AN112
Place of Origin :
Japan
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000pcs
Delivery Time :
3-5work days
Packaging Details :
Paper box
Electrical Rating :
AC 125V / 1A; DC 24V / 2A
Contact Resistance :
≤ 50 mΩ (initial)
Insulation Resistance :
≥ 100 MΩ (at DC 500V)
Operating Force :
150 ± 50 gf (standard); 250 ± 50 gf (heavy-duty option)
Travel Distance :
0.25 ± 0.05 mm
Service Life :
≥ 100,000 cycles (mechanical); ≥ 50,000 cycles (electrical)
Description

MR-AN112 High-reliability Mechanical Switch Designed For On/off Control In Industrial

1. General Description:

The MR-AN112 is a high-reliability mechanical switch designed for on/off control in industrial, commercial, and consumer electronic applications. It features a robust structural design, stable electrical performance, and long service life, ensuring consistent operation even in frequent-use scenarios.

2. Product Features:

  • Dual Type Options: Momentary and latching versions available to match different control logic needs.
  • Flame-Retardant Housing: PA66 material with UL94 V-0 rating enhances safety in electrical applications.
  • Stable Contact Performance: AgNi alloy contacts reduce oxidation and ensure low contact resistance over time.
  • Wide Temperature Adaptability: Operates reliably in extreme temperature ranges from -30 °C to +85 °C.
  • Compact Size: Small footprint (6.2×6.2 mm) suitable for space-constrained PCB layouts.

3. Applications:

  • Industrial control panels (start/stop buttons, parameter adjustment)
  • Consumer electronics (remote controls, audio equipment, home appliances)
  • Medical devices (low-voltage control switches, diagnostic equipment)
  • Automotive electronics (auxiliary control switches, in-car infotainment)
  • Smart home devices (sensor trigger switches, lighting control)
  • Test and measurement instruments (function selection, reset buttons)
Switch Type Momentary (push-to-make) / Latching (push-on, push-off) (optional)
Electrical Rating AC 125V / 1A; DC 24V / 2A
Contact Resistance ≤ 50 mΩ (initial)
Insulation Resistance ≥ 100 MΩ (at DC 500V)
Dielectric Strength AC 1500V (50/60Hz) for 1 minute (between contacts and housing)
Operating Force 150 ± 50 gf (standard); 250 ± 50 gf (heavy-duty option)
Travel Distance 0.25 ± 0.05 mm
Service Life ≥ 100,000 cycles (mechanical); ≥ 50,000 cycles (electrical)
Operating Temperature Range -30 °C to +85 °C (no condensation)
Storage Temperature Range -40 °C to +100 °C (no condensation)
Housing Material PA66 (polyamide 66, flame-retardant UL94 V-0)
Contact Material Silver-nickel (AgNi) alloy
Terminal Type Through-hole (DIP) / Surface-mount (SMD) (optional)
Dimensions (L×W×H) 6.2 mm × 6.2 mm × 4.5 mm (standard)
