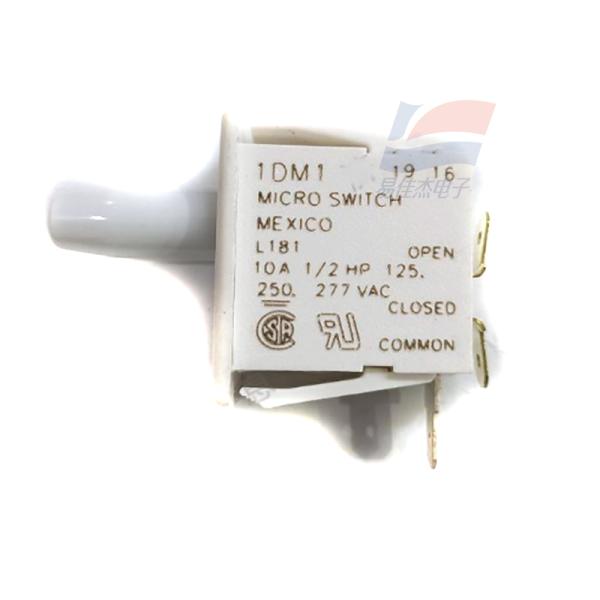

YJJ 1DM1 Microswitch Basic/Fast-acting Switch 10A 277VAC Piston Single-Pole Double-Throw
YJJ 1DM1 Microswitch Basic/Fast-acting Switch 10A 277VAC Piston Single-Pole Double-Throw
YJJ 1DM1 Microswitch Basic/Fast-acting Switch 10A 277VAC Piston Single-Pole Double-Throw
YJJ 1DM1 Microswitch Basic/Fast-acting Switch 10A 277VAC Piston Single-Pole Double-Throw
YJJ 1DM1 Microswitch Basic/Fast-acting Switch 10A 277VAC Piston Single-Pole Double-Throw
YJJ 1DM1 Microswitch Basic/Fast-acting Switch 10A 277VAC Piston Single-Pole Double-Throw
YJJ 1DM1 Microswitch Basic/Fast-acting Switch 10A 277VAC Piston Single-Pole Double-Throw
YJJ 1DM1 Microswitch Basic/Fast-acting Switch 10A 277VAC Piston Single-Pole Double-Throw
Specifications
Type :
Micro Switch
Contact type :
SPDT
AC voltage rating :
125 VAC, 250 VAC, 277 VAC
Current rating :
10A
Termination type :
Quick Connect
Actuator :
Plunger
Switch function :
ON - (OFF), OFF - (ON)
Working force :
4.17 N
Brand Name :
YJJ
Model Number :
1DM1
Place of Origin :
USA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, ,
Supply Ability :
2200
Delivery Time :
5-8 days
Packaging Details :
Bagged
Description

Product Description:

YJJ 1DM1 Microswitch Basic/Fast-acting Switch 10A 277VAC Piston Single-pole Double-throw

Features:

Parameters of - 1DM1 quick-action switch are as follows:

Basic parameters

‌Rated current‌: 10 A

‌Rated voltage‌: 277 VAC

‌Operating force‌: 4.2 N

‌Actuator type‌: Plunger (push rod type)

Contact and Terminal Connection

‌Contact Type‌: SPDT (Single-Pole Double-Throw)

‌Switch Function‌: ON - (OFF), OFF - (ON)

Physical Characteristics

‌Installation Style‌: Chassis Mount (Rack Installation)

‌Dimensions‌: Non-standard size (Specific dimensions should be referred to the data sheet)

Environmental adaptability

‌Operating temperature range‌: -37 ℃ to +82 ℃

Protection level: Non-lit type

Other Notes

‌Weight: Approximately 12.500 g

‌Delivery Timeframe: Approximately 7-10 days (subject to actual inventory and order quantity) REACH - SVHC:

Type: Micro Switch

Contact type: SPDT

Switch function: ON - (OFF), OFF - (ON)

Actuator: Plunger

Current rating: 10 A

AC voltage rating: 125 VAC, 250 VAC, 277 VAC

Working force: 4.17 N

Termination type: Quick Connect

Installation style: Chassis Mount

Actuator style: Plunger

Contact material: Silver

Lighting: Non-Illuminated

Maximum operating temperature: + 82 °C

Minimum operating temperature: - 37 °C

Product type: Snap Action Switches 50

Subcategory: Switches

Trademark name: Microswitch

Unit weight: 12.500 g

Specifications:

Installation style Chassis Mount
Actuator style Plunger
Contact material Silver
Lighting‌ Non-Illuminated
