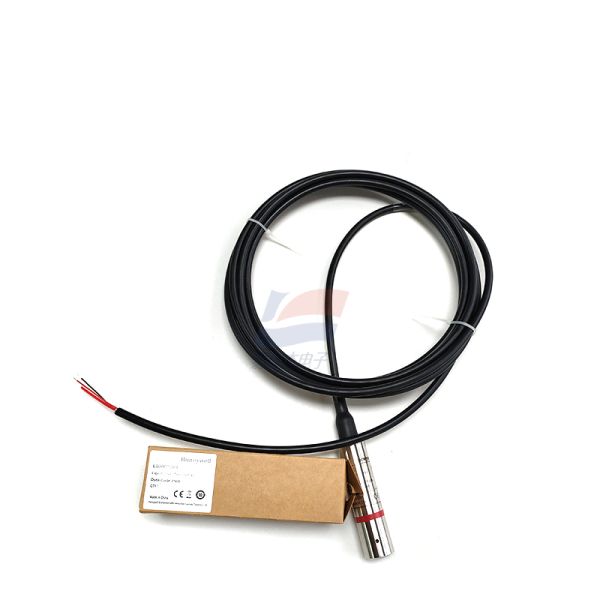

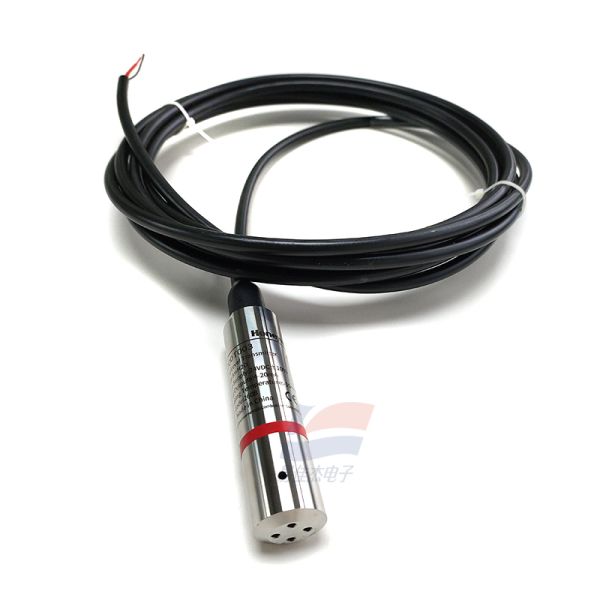

L8000T003 Submersible Level Transmitter 3-Meter Liquid Level 24 VDC Power Supply
L8000T003 Submersible Level Transmitter 3-Meter Liquid Level 24 VDC Power Supply
L8000T003 Submersible Level Transmitter 3-Meter Liquid Level 24 VDC Power Supply
L8000T003 Submersible Level Transmitter 3-Meter Liquid Level 24 VDC Power Supply
L8000T003 Submersible Level Transmitter 3-Meter Liquid Level 24 VDC Power Supply
L8000T003 Submersible Level Transmitter 3-Meter Liquid Level 24 VDC Power Supply
L8000T003 Submersible Level Transmitter 3-Meter Liquid Level 24 VDC Power Supply
L8000T003 Submersible Level Transmitter 3-Meter Liquid Level 24 VDC Power Supply
L8000T003 Submersible Level Transmitter 3-Meter Liquid Level 24 VDC Power Supply
L8000T003 Submersible Level Transmitter 3-Meter Liquid Level 24 VDC Power Supply
L8000T003 Submersible Level Transmitter 3-Meter Liquid Level 24 VDC Power Supply
L8000T003 Submersible Level Transmitter 3-Meter Liquid Level 24 VDC Power Supply
Specifications
Model Number :
L8000T003
Place of Origin :
USA
Price :
Negotiable
Packaging Details :
Standard Box
Supply Ability :
10000pcs/Month
Operating Temperature :
-10°C to +80°C
Payment Terms :
L/C, D/A, D/P, T/T,
Measurement Principle :
Submersible hydrostatic level measurement
Delivery Time :
3-5Workingdays
Output Signal :
4–20 mA standard industrial current signal
Brand Name :
YJJ
MOQ :
1
Measurement Range :
3-meter liquid level
Description

L8000T003 Submersible Level Transmitter 3-Meter Liquid Level 24 VDC Power Supply

Key Applications
*Liquid level monitoring for water tanks associated with air compressors and other compressors (most common application for this model)
*Level measurement in sewage treatment plants, storage reservoirs, and sewage wells
*Level monitoring for rivers, reservoirs, fire-fighting water tanks, and chemical storage tanks
*Level detection for oil and water tanks in mining equipment and construction machinery

Operating Principle
The sensor is submerged at the bottom of the liquid, where the liquid pressure acts upon the built-in diffused silicon pressure-sensing element. This converts the hydrostatic pressure signal into a 4–20 mA current signal, which is transmitted to a PLC or digital display unit to enable real-time liquid level monitoring, high/low-level alarms, and automatic pump start/stop control.

Specification:

Protection Rating Submersible type; suitable for direct immersion in sewage, clean water, or industrial media.
Power Supply Standard 24V DC

L8000T003 Submersible Level Transmitter 3-Meter Liquid Level 24 VDC Power Supply
