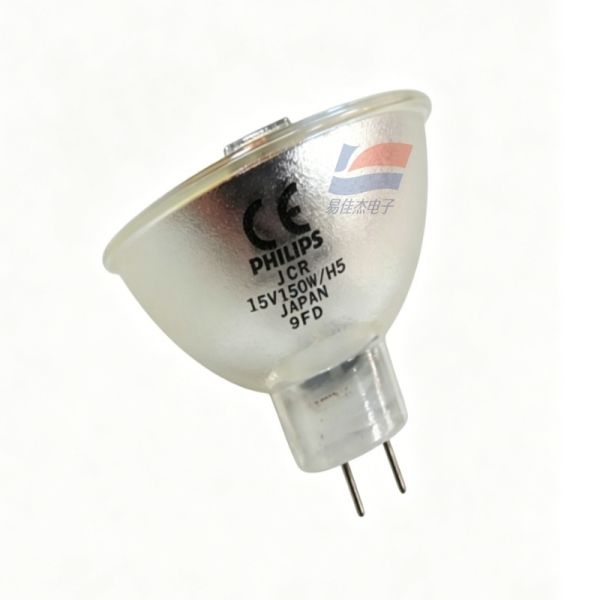

YJJ JCR 15V150WH5 Halogen Bulb for Long-Life Gastro-Intestinal Endoscope Cold Light Source 249235
YJJ JCR 15V150WH5 Halogen Bulb for Long-Life Gastro-Intestinal Endoscope Cold Light Source 249235
YJJ JCR 15V150WH5 Halogen Bulb for Long-Life Gastro-Intestinal Endoscope Cold Light Source 249235
YJJ JCR 15V150WH5 Halogen Bulb for Long-Life Gastro-Intestinal Endoscope Cold Light Source 249235
YJJ JCR 15V150WH5 Halogen Bulb for Long-Life Gastro-Intestinal Endoscope Cold Light Source 249235
YJJ JCR 15V150WH5 Halogen Bulb for Long-Life Gastro-Intestinal Endoscope Cold Light Source 249235
YJJ JCR 15V150WH5 Halogen Bulb for Long-Life Gastro-Intestinal Endoscope Cold Light Source 249235
YJJ JCR 15V150WH5 Halogen Bulb for Long-Life Gastro-Intestinal Endoscope Cold Light Source 249235
YJJ JCR 15V150WH5 Halogen Bulb for Long-Life Gastro-Intestinal Endoscope Cold Light Source 249235
YJJ JCR 15V150WH5 Halogen Bulb for Long-Life Gastro-Intestinal Endoscope Cold Light Source 249235
Specifications
Model Number :
JCR 15V150WH5
Outer diameter :
50 mm
Price :
Negotiable
Packaging Details :
Box pack
Focal point :
H5 standard focal length
Supply Ability :
1500
Working current :
10 A
Reflective film :
Cold light film
Payment Terms :
L/C, D/A, D/P, T/T, ,
Color temperature :
3100 K
Color Rendering Index (CRI) :
100
Delivery Time :
5-8 days
Rated power :
150 W
Brand Name :
YJJ
Place of Origin :
Netherlands
MOQ :
1
Rated voltage :
15 V
Description

Product Description:

YJJ JCR 15V150WH5 Halogen Bulb for Long-Life Gastro-Intestinal Endoscope Cold Light Source 249235

Features:

Basic Information

Model: JCR 15V150WH5

Material Number: 249235

Product Type: MR16 Reflective Cup Halogen Lamp

Electrical Parameters

Rated Voltage: 15 V

Rated Power: 150 W

Working Current: 10 A

Optical Parameters

Color Temperature: 3100 K

Color Rendering Index (CRI): 100

Reflective Film: Cold Light Film, Reflects Infrared Light Backward, Low Temperature on Light Emitting Surface

Focus: H5 Standard Focal Length (Compatible with Fiber Optic Cold Light Source)

No Ultraviolet Leakage, Suitable for Optical Inspection Equipment

Physical Dimensions

Lamp Base: GZ6.35 Double Pins

Outer Diameter: 50 mm

Total Length: 42 mm

Installation Position: BDH, Downward Installation Allowed ±90°

Service Life

Rated Average Life: 500 h Application scope

Fiber optic cold light source, endoscope light source, microscope, optical projector, AOI equipment, dental lighting, slit lamp instrument

Compatible alternatives

KLS JCR 15V150WH5, with fully interchangeable mounting position, focal length, and electrical parameters

Specifications:

Installation position BDH
Total length 42 mm
Outer diameter 50 mm
Lamp holder GZ6.35 double-pin
Focal point H5 standard focal length

YJJ JCR 15V150WH5 Halogen Bulb for Long-Life Gastro-Intestinal Endoscope Cold Light Source 249235
