Product Description:

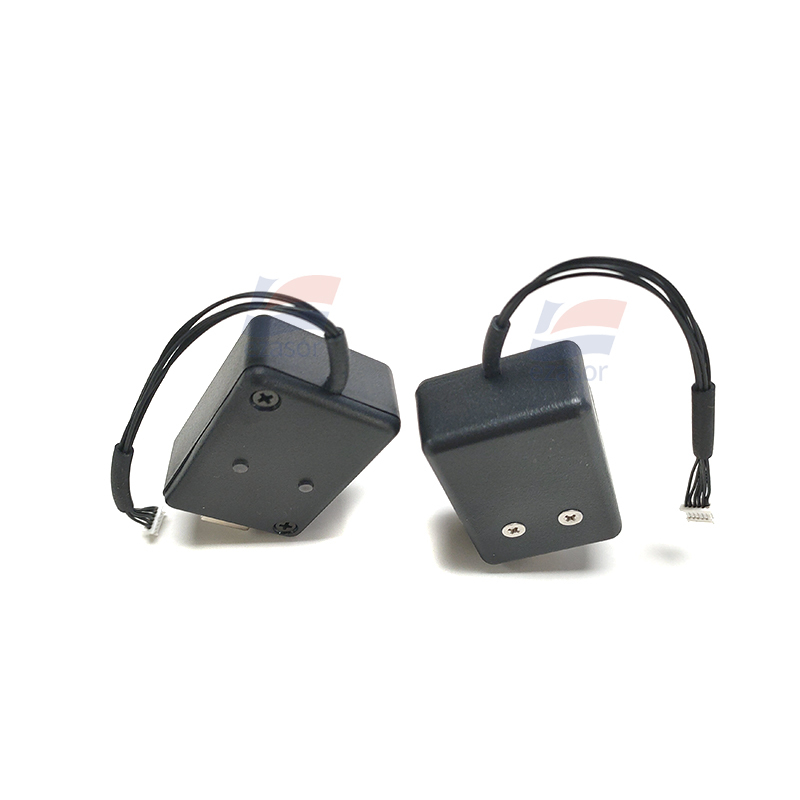

YJJ USB-SPI Converter Module for OPC-N3 Dust Monitoring & Lab Measurement

Features:

OPC-N3 Optical Particulate Matter Counter (with USB-SPI Converter)

Parameter Description:

Principle: Laser Light Scattering Optical Particle Counter; USB-SPI Converter realizes USB-to-SPI conversion on the PC side, directly reading the SPI data from the OPC-N3 sensor

Core Parameters of OPC-N3 Sensor

| Model | OPC-N3

| Detection Principle | Laser Light Scattering Single Particle Counting, 1st Level Safety Laser

| Particle Size Detection Range | 0.35 - 40 μm (Spherical Equivalent Particle Size)

| Particle Size Channels | 24 Particle Size Grading Channels, Output Particle Size Distribution Histogram

| Output Particulate Matter Indicators | PM1, PM2.5, PM4.25, PM10 Mass Concentration

| Maximum Mass Concentration | 2000 μg/m³

| Maximum Particle Count Rate | 10000 Particles/Second |

| Sampling Flow Rate | Total Flow Rate 5.5L/min; Sampling Flow Rate 220 mL/min |

| Power Supply Voltage | DC 4.8 - 5.2V (Typical 5V) |

| Working Current | Measurement Mode 175mA; Standby < 50mA |

| Built-in Sensors | Internal Temperature and Humidity Compensation Sensor

| Native Communication Interface | SPI-Mode1 (3.3V Logic); Micro-USB; Supports Micro-SD Local CSV Storage |

| Working Temperature | -10℃ ~ +50℃

| Working Humidity | 0 - 95% RH, No Condensation

| Physical Dimensions | 75 mm × 60 mm × 63.5 mm |

| Weight | < 105g |

| Warranty | 24 Months

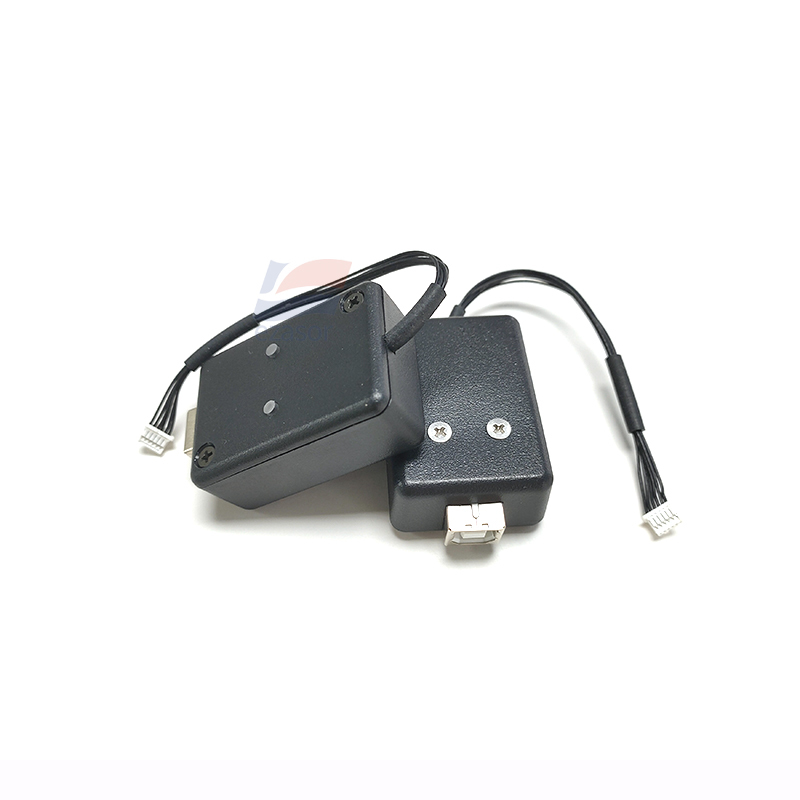

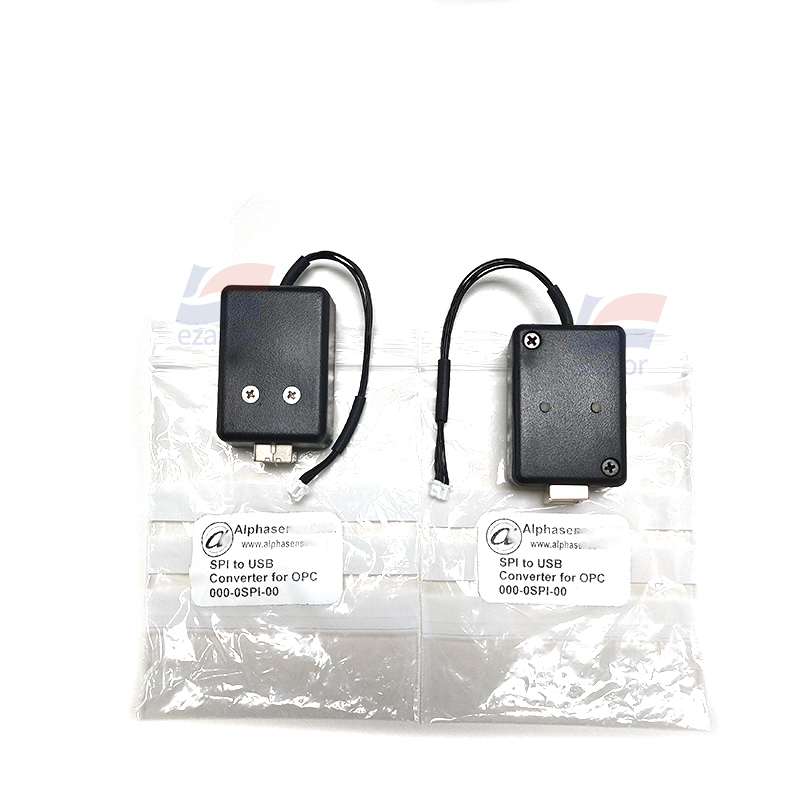

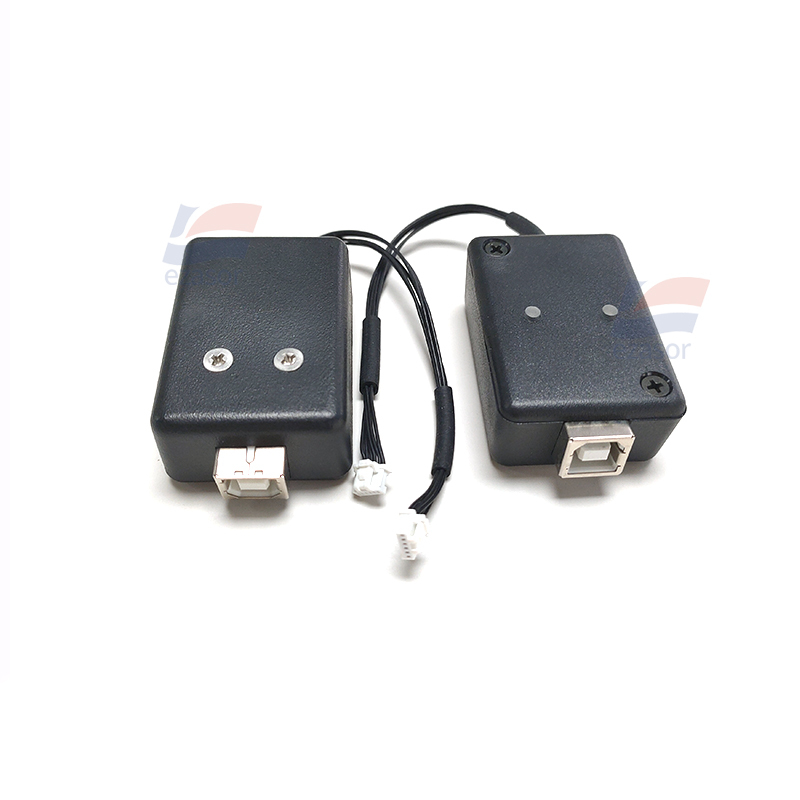

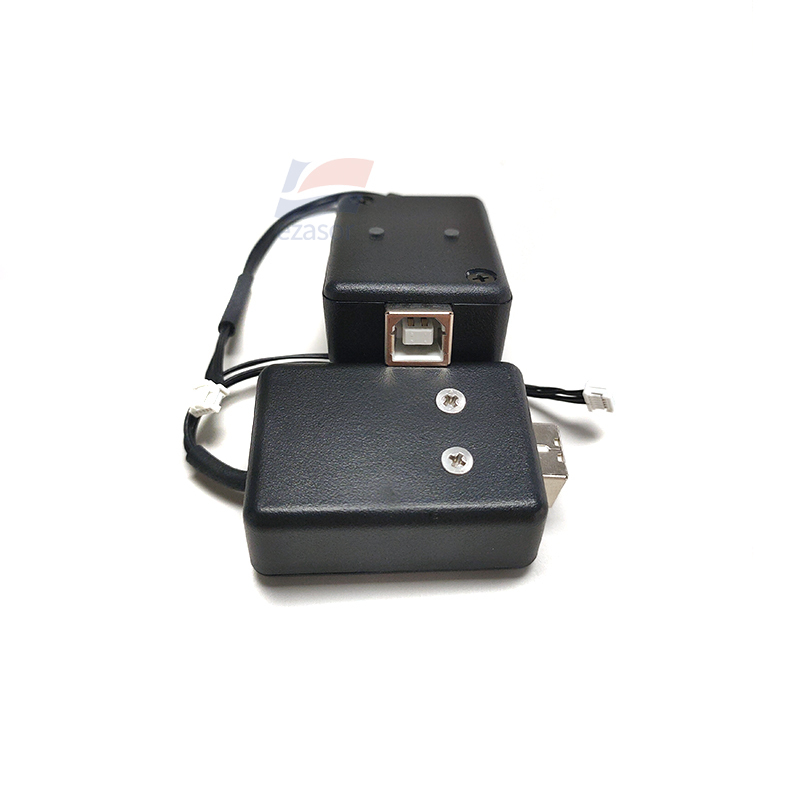

USB-SPI Converter (with Adapter) Description

> Function: Computer USB Interface to SPI, directly reads the SPI data from the OPC-N3, eliminating the need for MCU single-chip development

1. Interface: USB2.0; SPI Signals: SCK, MOSI, MISO, CS, GND; SPI Mode 1, matching the OPC-N3 communication timing

2. IO Level: 3.3V Logic Level, compatible with OPC-N3 SPI Interface

3. Power Supply: OPC-N3 requires independent 5V power supply, **cannot be powered by the USB-SPI Adapter**, to avoid insufficient power supply causing abnormal fan and laser

4. Software: PC Host Computer reads histogram, PM Concentration, Temperature and Humidity Data

Main Features

1. 24 Channel Particle Size Grading, can output complete particle size distribution, not only PM mass values, can detect large particles such as pollen

2. Built-in Temperature and Humidity Compensation, suitable for complex outdoor environments; supports SD card offline recording

3. Combined with USB-SPI Converter, PC directly collects data, quickly conducting scheme evaluation and laboratory testing

4. Industrial Grade, suitable for high-pollution cities, construction site dust, atmospheric environment monitoring

Typical Application Scenarios

Urban Air Quality Monitoring, Construction Site Dust Monitoring, Atmospheric Research Sampling, Pollen/Allergen Monitoring, Industrial Park Particulate Matter Monitoring, Environmental Monitoring Station, Indoor and Outdoor Air Quality Monitoring Equipment Development

Specifications:
