Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dongguan CHINA
Price :
5-200RNB/P
Payment Terms :
L/C,T/T
Delivery Time :
It depends on the actual situation
MOQ :
200
Packaging Details :
cardboard box
Supply Ability :
2000 copies/Day
Polish :
UPC,APC
Fiber Type :
SM/MM
Connector :
SC,FC,LC,ST,MU,DIN,MTRJ,E2000,MPO
Cord Type :
Simplex ,Duplex
Cable Jacket :
PVC,LSZH,OFNR,OFNP
Highlight :
pigtail fiber optic cable, fiber optic components
Description
Pigtail SC UPC Fiber Optic Patch Cord Low Insertion Loss Good In Exchange

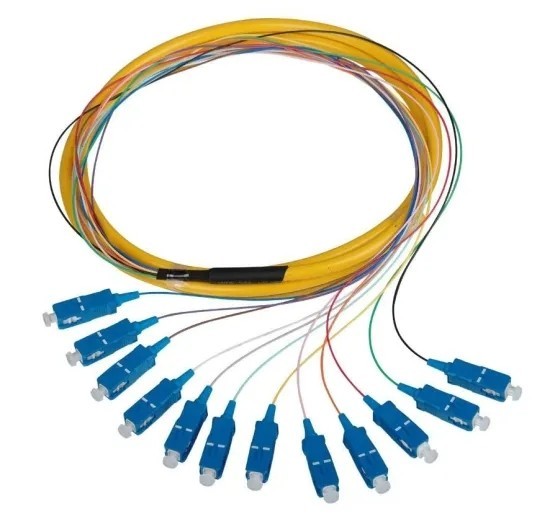

SC/UPC Fiber Optic Pigtail

SC fiber optic Pigtail is a fiber optic cable capped at one end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch, or other telecommunication equipment.

SC fiber optic cable is available in both single mode and multimode versions. The SC connector has a zirconia ceramic ferrule with pre-polished UPC profile and convex spherical end.

These end-face types allow for faster polishing, and low back reflection and optical loss, while ensuring maximum repeatability.

Features
  • Low insertion loss and back reflection loss
  • Ferrule end surface pre-domed
  • Excellent mechanical endurance
  • Good in repeatability
  • Good in exchange
Applications
  • Telecommunications
  • CATV, LAN, MAN, WAN, Test & Measurement
  • Military industry
  • Medical
Technical Parameters
Parameter Unit PC(SM) UPC(SM) APC(SM) PC(MM)
Insertion Loss (Typical) dB ≤0.3 ≤0.3 ≤0.2 ≤0.2
Return Loss dB ≥45 ≥50 ≥60 ≥35
Mechanical Endurance (500T) dB ≤0.2
Exchangeability dB ≤0.2
Durability Time ＞500
Vibration dB ≤0.2
Operating Temperature ℃ ﹣40 ～﹢75
Storage Temperature ℃ ﹣45 ～﹢85
Cable Diameter mm Ф2.0mm± 2%
Fiber Characteristics
Item Construction
Fiber Type Single mode: G652, Multimode: G651
Mode Field Diameter @1310NM 9.0±0.5μm
Cladding Diameter 125±1μm
Core Concentricity Error 0.6μm ≦
Cladding Non-Circularity 1.0% ≦
Primary Coating Diameter 250±15μm
Coating-Cladding Concentricity Error ≦12.5μm
Fiber Curl Radius 4m ≧
Casing LSZH or better (OFNR-rated). The non-circular < 2%. Yellow color printed cables information, type, length
The Bend Radius 3 cm
Greatest Tension Installation: ≥ 200 N
Operating: ≥ 200 N
The Force Mashed 550 N/cm
