Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dongguan CHINA
Price :
5-200RNB/P
Payment Terms :
L/C,T/T
Delivery Time :
It depends on the actual situation
MOQ :
200
Packaging Details :
cardboard box
Supply Ability :
2000 copies/Day
Polish :
UPC,APC
Fiber Type :
SM/MM
Connector :
SC,FC,LC,ST,MU,DIN,MTRJ,E2000,MPO
Cord Type :
Simplex ,Duplex
Cable Jacket :
PVC,LSZH,OFNR,OFNP
Highlight :
pigtail fiber optic cable, fiber optic components
Description
Polish UPC APC Pigtail Fiber Optic Cable High Temperature Stability
High Temp Stability Optical Fiber Patch Cord UPC APC 0.5m 1m 3m 5m 10m Length
Product Overview

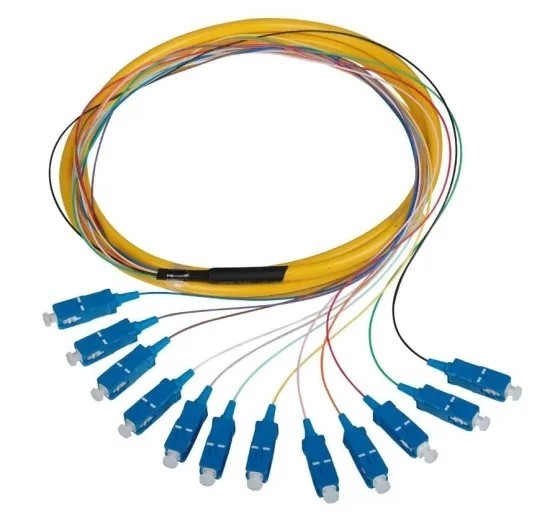

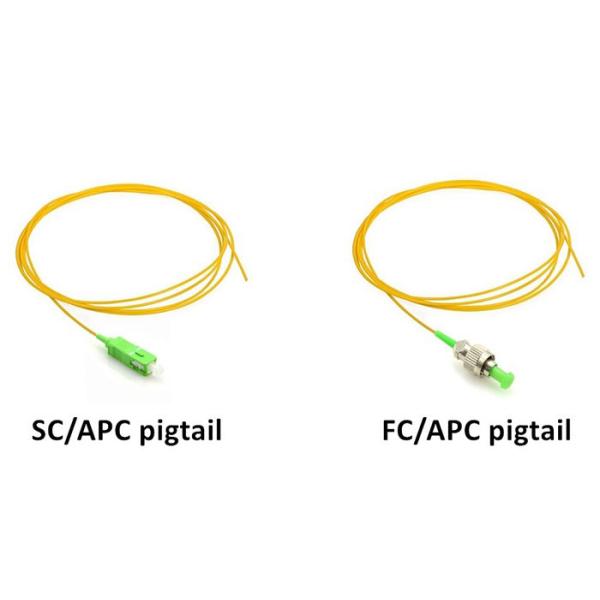

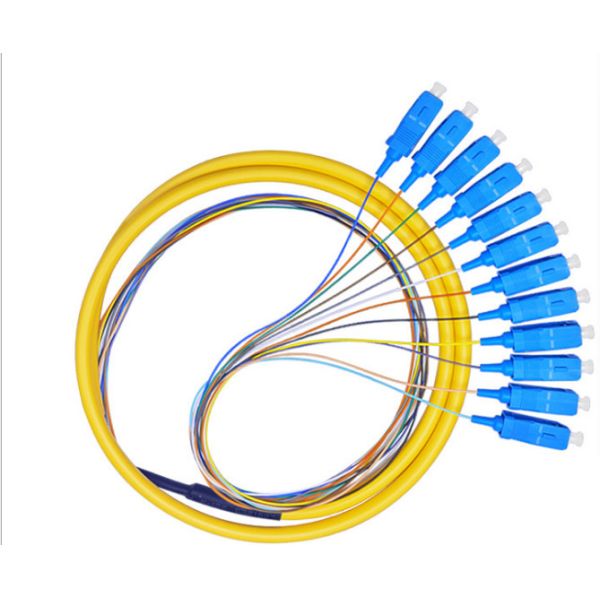

An optical fiber pigtail is a length of fiber with a connector at one end, used for connecting the beam path. It can have various types of connectors and three types of polished fiber end-faces (PC, UPC, and APC). Our advanced techniques and equipment ensure high-quality mass production.
Key Features
  • Low insertion loss
  • High return loss
  • Good repeatability
  • Good exchangeability
  • High temperature stability
Applications
Applications include optical fiber communication systems:
  • Optic-fiber data communications in various applications
  • Multiple applications utilizing optic-fiber data communications
  • Different scenarios benefiting from optic-fiber access networks
  • LAN optic-fiber sensors for multiple applications
Technical Parameters
Parameter Single Mode Multi-mode PC
Polish UPC APC PC
Insertion Loss ≤0.2dB ≤0.3dB ≤0.2dB
Return Loss ≥55dB ≥65dB ≥35dB
Interchangeability ≤0.2dB
Salt Spray ≤0.1dB
Repeatability ≤0.1dB (1000 times)
Vibration ≤0.2dB (550Hz 1.5mm)
Temperature ≤0.2dB (-40+85 sustain 100 hours)
Humidity ≤0.2dB (+25+65 93 R.H.100 hours)
Apex Offset 0μm ~ 50μm
Radius of Curvature 7mm ~ 25mm
Standards-Compliant ROHS, IEC and GR-326
Specifications
Fiber Type
Single mode: 9/125-G652D, 9/125-G657
Multi-mode: 50/125-OM2, 62.5/125-OM1, 50/125-OM3
Fiber
Corning, China Fiber, other
Connector
SC, FC, LC, ST, MU, DIN, MTRJ, E2000, MPO, SMA, D4 and others
Polishing
PC, UPC, APC, MTRJ Male connector, MTRJ female connector
Cord Type
Simplex, Duplex
Cable Diameter
0.9mm, 2.0mm, 1.8mm, 3.0mm
Cable Jacket
PVC, LSZH, OFNR, OFNP
Length (M)
0.5m, 1m, 3M, 5m, 10m, 20m, 200m or other

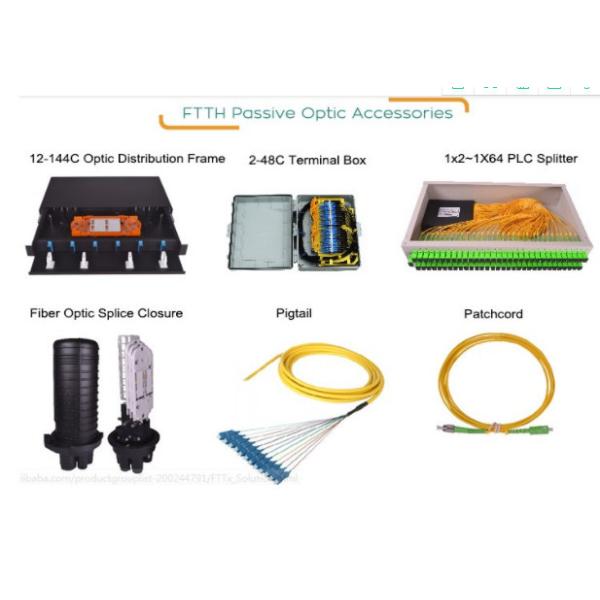

Product Appearance
High Temp Stability Optical Fiber Patch Cord UPC APC 0.5m 1m 3m 5m 10m Length
High Temp Stability Optical Fiber Patch Cord UPC APC 0.5m 1m 3m 5m 10m Length
