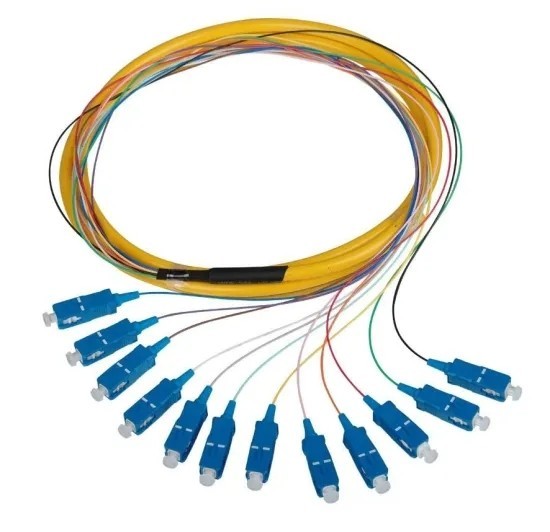

Customized Fiber Optic Pigtail Single Mode Simplex SC APC Fiber Pigtails
Customized Fiber Optic Pigtail Single Mode Simplex SC APC Fiber Pigtails
Customized Fiber Optic Pigtail Single Mode Simplex SC APC Fiber Pigtails
Customized Fiber Optic Pigtail Single Mode Simplex SC APC Fiber Pigtails
Customized Fiber Optic Pigtail Single Mode Simplex SC APC Fiber Pigtails
Customized Fiber Optic Pigtail Single Mode Simplex SC APC Fiber Pigtails
Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dongguan CHINA
Price :
5-200RNB/P
Payment Terms :
L/C,T/T
Delivery Time :
It depends on the actual situation
MOQ :
200
Packaging Details :
cardboard box
Supply Ability :
2000 copies/Day
Name :
Fiber Optic Pigtail Single Mode
Polish :
UPC,APC
Fiber Type :
SM/MM
Connector :
SC,FC,LC,ST,MU,DIN,MTRJ,E2000,MPO
Cable Jacket :
PVC,LSZH,OFNR,OFNP
Highlight :
SC APC Fiber Optic Pigtail, Simplex Fiber Optic Pigtail, single mode ofc pigtail
Description
Lightweight Fiber Optic Pigtail Single Mode Simplex SC APC Fiber Pigtails
Product Overview

Fiber optic pigtails offer a rapid means of creating communication devices in the field. They are manufactured, produced, and evaluated in accordance with industrial protocols and performance requirements, ensuring they fulfill even the most rigorous mechanical and performance specifications.

Customized Fiber Optic Pigtail Single Mode Simplex SC APC Fiber Pigtails
Key Features
  • Available connector types: SC, LC, FC, MU, ST, MT-RJ, and E2000
  • Superior polishing standards: PC, APC, UPC, and SPC
  • Cable diameter options: φ0.9mm, φ2.0mm, or φ3.0mm
  • Fiber types: single mode (9125) or multi-mode (50/125 or 62.5/125)
  • Available configurations: fiber bunches, ribbon fan-outs, and pigtails
  • Connector configurations: simplex and duplex
  • Low insertion loss and high return loss
  • Highly exchangeable and durable connectors
  • Customized specifications available
Technical Specifications
Item SM (Single Mode) MM (Multimode)
Fiber Cable Type G652D/G655/G657A1/G657A2 OM1 / OM2/OM3/OM4
Fiber Diameter (um) 9/125 62.5/125 / 50/125
Cable OD (mm) 0.9/1.6/1.8/2.0/2.4/3.0
Endface Type PC / UPC / APC UPC
Typical Insertion Loss (dB) <0.2 / <0.15 / <0.2 <0.1 / <0.1
Return Loss (dB) >45 / >50 / >60 /
Insert-pull Test (dB) <0.2 / <0.3 / <0.15 -
Interchangeability (dB) <0.1 / <0.15 / <0.1 -
Anti-tensile Force (N) >70
Temperature Range (ºC) -40~+80
