SC APC Single Mode Optical Fiber Patch Cord Simplex / Duplex Fiber Optic Pigtails OEM
SC APC Single Mode Optical Fiber Patch Cord Simplex / Duplex Fiber Optic Pigtails OEM
SC APC Single Mode Optical Fiber Patch Cord Simplex / Duplex Fiber Optic Pigtails OEM
SC APC Single Mode Optical Fiber Patch Cord Simplex / Duplex Fiber Optic Pigtails OEM
SC APC Single Mode Optical Fiber Patch Cord Simplex / Duplex Fiber Optic Pigtails OEM
SC APC Single Mode Optical Fiber Patch Cord Simplex / Duplex Fiber Optic Pigtails OEM
SC APC Single Mode Optical Fiber Patch Cord Simplex / Duplex Fiber Optic Pigtails OEM
SC APC Single Mode Optical Fiber Patch Cord Simplex / Duplex Fiber Optic Pigtails OEM
Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dongguan CHINA
Price :
5-200RNB/P
Payment Terms :
L/C,T/T
Delivery Time :
It depends on the actual situation
MOQ :
200
Packaging Details :
cardboard box
Supply Ability :
2000 copies/Day
Name :
SC APC Single Mode Fiber Optic Pigtails
Polish :
UPC,APC
Fiber Type :
SM/MM
Connector :
SC,FC,LC,ST,MU,DIN,MTRJ,E2000,MPO
Cord Type :
Simplex ,Duplex
Cable Jacket :
PVC,LSZH,OFNR,OFNP
Highlight :
pigtail fiber optic cable, fiber optic components
Description
SC APC Single Mode Fiber Optic Pigtails Simplex / Duplex Cord Type OEM
Product Overview

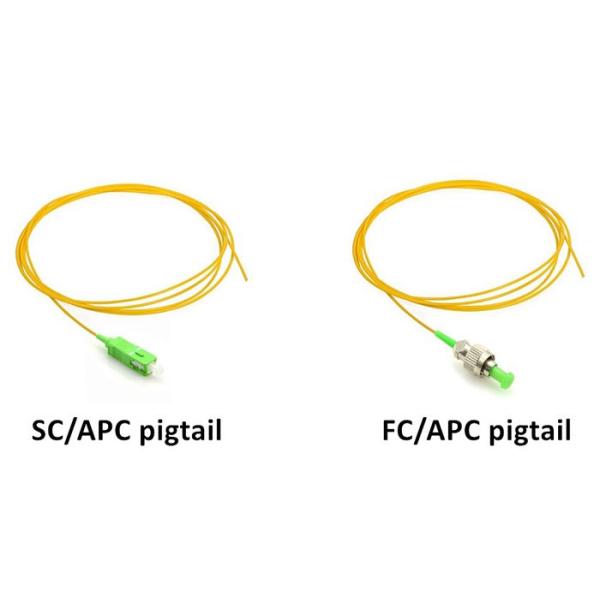

Optical Fiber Pigtail is a length of optical fiber with one end adding connectors to connect beam path. Pigtail is a length of fiber permanently attached connector only at one end. Pigtail assembled with various types of connectors (such as FC, SC, ST, LC, MU, MTRJ etc.) There are three kinds of polished fiber end-face: PC, UPC and APC. We employ advanced technique and equipment to manufacture so as to ensure the high quality of mass production.

SC APC Single Mode Optical Fiber Patch Cord Simplex / Duplex Fiber Optic Pigtails OEM SC APC Single Mode Optical Fiber Patch Cord Simplex / Duplex Fiber Optic Pigtails OEM
Key Features
  • Low insertion loss
  • High return loss
  • Good repeatability
  • Good exchangeability
  • High temperature stability
Applications
  • Optical fiber communication systems
  • Optic-fiber data communications
  • Optic-fiber access networks
  • LAN optic-fiber sensors
Technical Parameters
Parameter Single Mode Multi-mode
Polish UPC APC | PC
Insertion Loss ≤0.2dB ≤0.3dB | ≤0.2dB
Return Loss ≥55dB ≥65dB | ≥35dB
Interchangeability ≤0.2dB
Salt Spray ≤0.1dB
Repeatability ≤0.1dB (1000 times)
Vibration ≤0.2dB (550Hz 1.5mm)
Temperature ≤0.2dB (-40+85 sustain 100 hours)
Humidity ≤0.2dB (+25+65 93 R.H.100 hours)
Apex Offset 0μm ~ 50μm
Radius of Curvature 7mm ~ 25mm
Standards-Compliant ROHS, IEC and GR-326
Specifications
Fiber type: Single mode: 9/125-G652D, 9/125-G657
Multi-mode: 50/125-OM2, 62.5/125-OM1, 50/125-OM3
Fiber: Corning, China Fiber, other
Connector: SC, FC, LC, ST, MU, DIN, MTRJ, E2000, MPO, SMA, D4 and others
Polishing: PC, UPC, APC, MTRJ Male connector, MTRJ female connector
Cord type: Simplex, Duplex
Cable diameter: 0.9mm, 2.0mm, 1.8mm, 3.0mm
Cable jacket: PVC, LSZH, OFNR, OFNP
Length (M): 0.5m, 1m, 3M, 5m, 10m, 20m, 200m or other

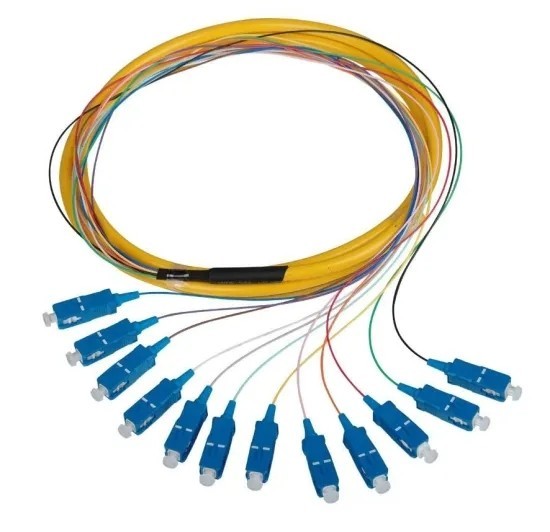

Product Appearance
SC APC Single Mode Optical Fiber Patch Cord Simplex / Duplex Fiber Optic Pigtails OEM
