PE Sheath 6 Core - 24 Core Armored Optical Cable Single Mode GYXTW GYTS GYTA53
PE Sheath 6 Core - 24 Core Armored Optical Cable Single Mode GYXTW GYTS GYTA53
PE Sheath 6 Core - 24 Core Armored Optical Cable Single Mode GYXTW GYTS GYTA53
PE Sheath 6 Core - 24 Core Armored Optical Cable Single Mode GYXTW GYTS GYTA53
PE Sheath 6 Core - 24 Core Armored Optical Cable Single Mode GYXTW GYTS GYTA53
PE Sheath 6 Core - 24 Core Armored Optical Cable Single Mode GYXTW GYTS GYTA53
PE Sheath 6 Core - 24 Core Armored Optical Cable Single Mode GYXTW GYTS GYTA53
PE Sheath 6 Core - 24 Core Armored Optical Cable Single Mode GYXTW GYTS GYTA53
PE Sheath 6 Core - 24 Core Armored Optical Cable Single Mode GYXTW GYTS GYTA53
PE Sheath 6 Core - 24 Core Armored Optical Cable Single Mode GYXTW GYTS GYTA53
Specifications
Brand Name :
Mingtong
Certification :
ISO
Place of Origin :
Dongguan CHINA
MOQ :
20km
Price :
500-5000RNB/KM
Payment Terms :
L/C,T/T
Delivery Time :
It depends on the actual situation.
Model Number :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Supply Ability :
200km/Day
Name :
Armored Optical Cable
Standardscompliance :
TIA/EIA, IEC, RoHS
Fiber Count :
6 Core - 24 Core
Inside :
Armored Tube
Description
Single Mode Armored Fiber Optic Cable 6 Core - 24 Core GYXTW GYTS GYTA53
Product Overview

Single Mode Armored Fiber Optic Cable available in 6-24 core configurations including GYXTW, GYTS, and GYTA53 types.

PE Sheath 6 Core - 24 Core Armored Optical Cable Single Mode GYXTW GYTS GYTA53

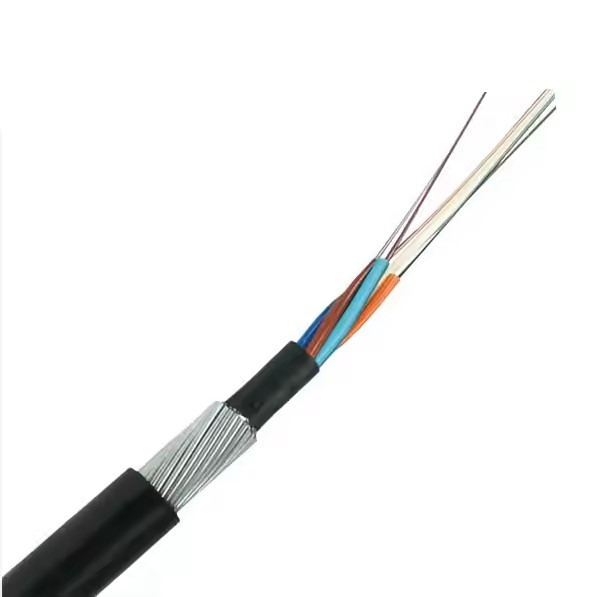

Complete armored fiber optic cable assembly
PE Sheath 6 Core - 24 Core Armored Optical Cable Single Mode GYXTW GYTS GYTA53

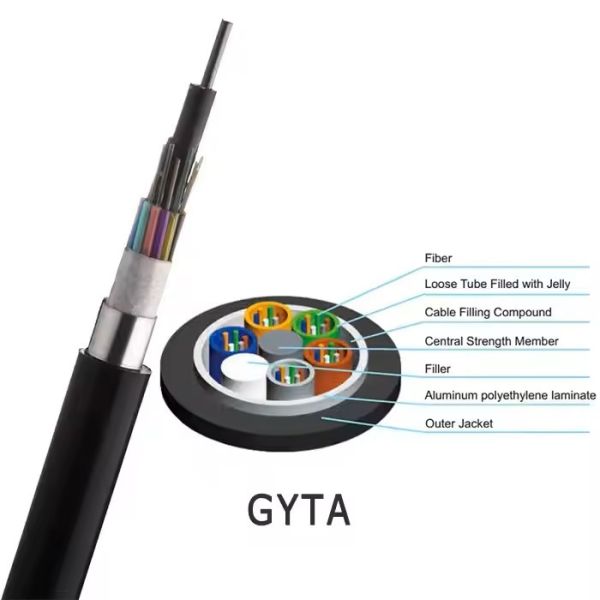

Detailed construction view of armored fiber optic cable
PE Sheath 6 Core - 24 Core Armored Optical Cable Single Mode GYXTW GYTS GYTA53

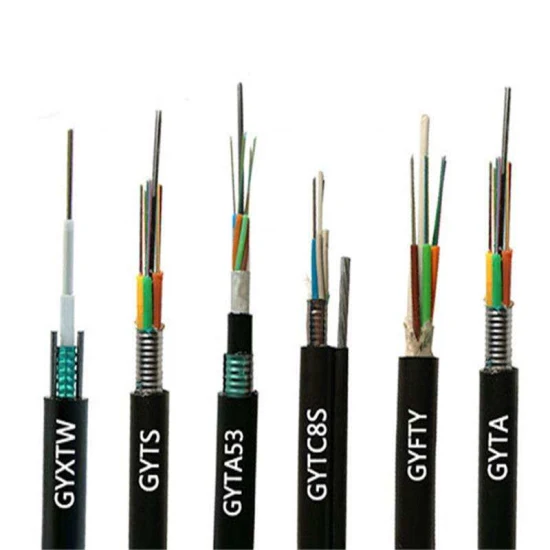

Technical diagram of cable structure and components
Construction Details

The 125μm fibers are positioned in a loose tube made of high modulus plastic. The tubes are filled with a water-resistant filling compound for optimal protection.

A steel wire, sometimes sheathed with polyethylene (PE) for cables with high fiber count, is located in the center as a metallic strength member. Tubes and fillers are stranded around this strength member to form a compact, circular cable core.

An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with filling compound to protect against water ingress. The cable is completed with a durable PE sheath.

Key Features
  • Excellent mechanical and temperature performance
  • Special tube filling compound ensures critical fiber protection and water resistance
  • Single steel wire central strength member to withstand axial loads
  • PE sheath protects cable from ultraviolet radiation
  • 100% core filling water protection to ensure cable watertight
  • AL tape longitudinal cover for moisture barrier protection
PE Sheath 6 Core - 24 Core Armored Optical Cable Single Mode GYXTW GYTS GYTA53

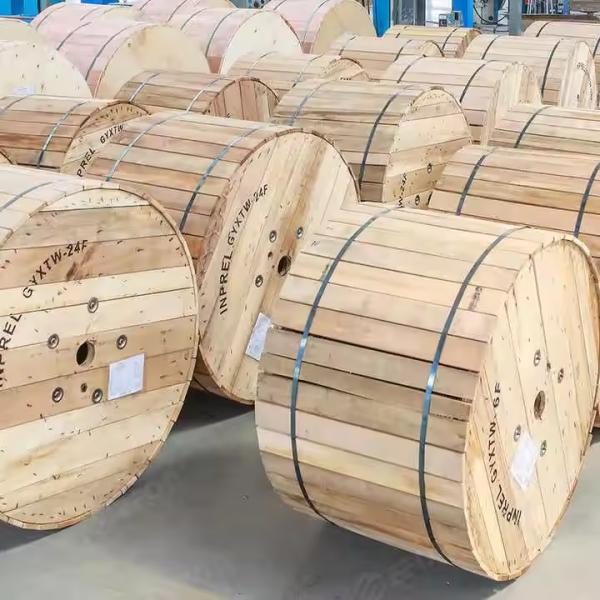

Cross-sectional view of armored fiber optic cable
PE Sheath 6 Core - 24 Core Armored Optical Cable Single Mode GYXTW GYTS GYTA53

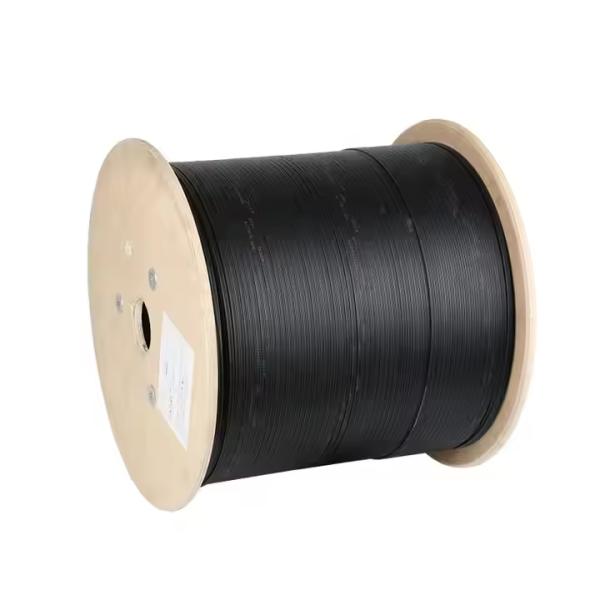

Installation example in industrial application
