Anti UV PE Jacket GYTS Stranded Fiber Optic Cable Armored 96 Core For Aerial / Duct Use
Anti UV PE Jacket GYTS Stranded Fiber Optic Cable Armored 96 Core For Aerial / Duct Use
Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dong Guan China
Price :
500-5000RNB/KM
Payment Terms :
L/C,T/T
Supply Ability :
200km/Day
Delivery Time :
It depends on the actual situation.
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Loose Tube Material: :
PBT Or Jelly
Outer Sheath Material: :
PE
Single Armour Material :
Corrugated Aluminium Tape
Outer Sheath Color :
Black
Waterblocking Material :
Water Blocking Tape Or Filling Compound
Highlight :
GYTS Armoured OFC Cable, 288 Cores Armoured OFC Cable, 2 Core armoured optical fiber cable
Name :
Armored Optical Cable
Description
GYTS PE Jacket Stranded Fiber Optic Cable 96 Core For Aerial / Duct
Product Overview

Outdoor GYTS Fiber Optical Cable (2-144 Cores) designed for aerial and duct applications. The 250μm fibers are positioned in high modulus plastic loose tubes filled with water-resistant compound. Features a central steel wire strength member and PE sheath for superior protection.

Application Fields
  • Aerial / Duct installations
  • Connecting communication equipment
  • Multi-core wiring systems in data centers

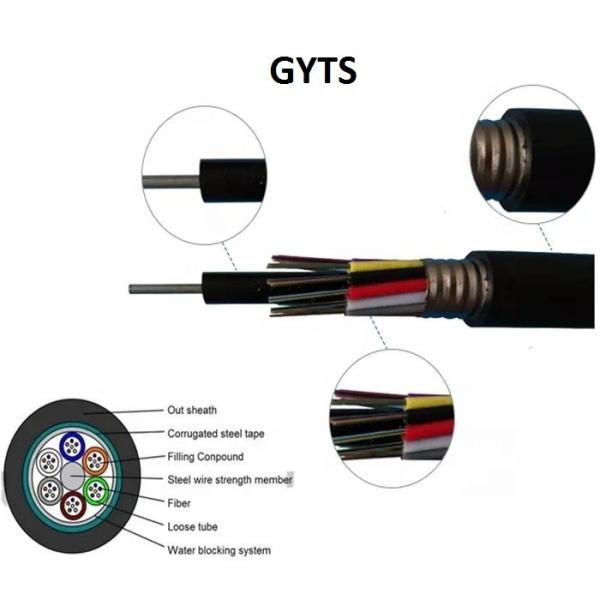

Structural Features
  • Corrugated steel tape provides high tension and crush resistance
  • Special gel in tubes offers critical fiber protection
  • Steel wire central strength member
  • Anti-UV PE jacket
  • Resistant to temperature cycling, anti-aging, and extended lifespan
Technical Specifications
Fiber Range Cable Outer Diameter (mm) Cable Weight (kg/km) Min. Bending Radius Allowable Tension (N) Max. Crush Loading (N/100mm)
Static Dynamic Short Term Long Term Short Term Long Term
2-30 9.8 115 -
32-36 10.6 140 -
38-60 11.0 140 10× cable diameter 20× cable diameter 1500 600 1000 300
62-72 11.6 165 -
74-96 13.2 205 -
98-120 14.7 245 -
122-144 16.1 285 -
146-216 16.6 300 -
218-240 19.8 395 -
242-288 22.0 470 -
Product Images
Anti UV PE Jacket GYTS Stranded Fiber Optic Cable Armored 96 Core For Aerial / Duct Use Anti UV PE Jacket GYTS Stranded Fiber Optic Cable Armored 96 Core For Aerial / Duct Use Anti UV PE Jacket GYTS Stranded Fiber Optic Cable Armored 96 Core For Aerial / Duct Use Anti UV PE Jacket GYTS Stranded Fiber Optic Cable Armored 96 Core For Aerial / Duct Use Anti UV PE Jacket GYTS Stranded Fiber Optic Cable Armored 96 Core For Aerial / Duct Use
Packaging & Delivery
  • Standard Length: 3000m/roll (custom lengths available)
  • Packaging: Wooden drum
  • Custom Packaging: Available per client requirements
  • Delivery Time: 7-15 days after receiving 30% T/T or L/C deposit
