36 72 96 Core Armored Fiber Optic Cable For Connecting Communication Equipments
36 72 96 Core Armored Fiber Optic Cable For Connecting Communication Equipments
Specifications
Brand Name :
MingTong
Model Number :
GYTS
Certification :
ISO
Place of Origin :
Dong Guan China
Price :
500-5000RNB/KM
Payment Terms :
L/C,T/T
Supply Ability :
200km/Day
Delivery Time :
It depends on the actual situation.
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Loose Tube Material: :
PBT Or Jelly
Outer Sheath Material: :
PE
Single Armour Material :
Corrugated Aluminium Tape
Outer Sheath Color :
Black
Waterblocking Material :
Water Blocking Tape Or Filling Compound
Messenger Material :
Steel Wires
Highlight :
96 Core Armored Fiber Optic Cable, GYTS Armored Fiber Optic Cable, 72 core shielded fiber optic cable
Name :
Armored Optical Cable
Description
36/72/96 Core Armored Fiber Optic Cable For Connecting Communication Equipment
Product Overview

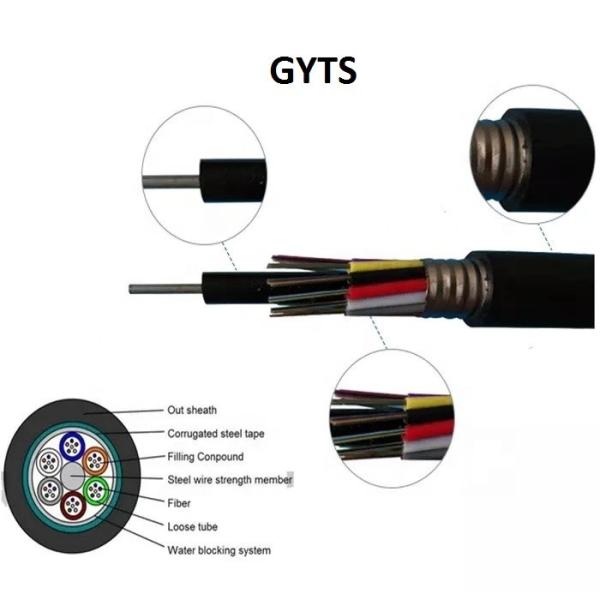

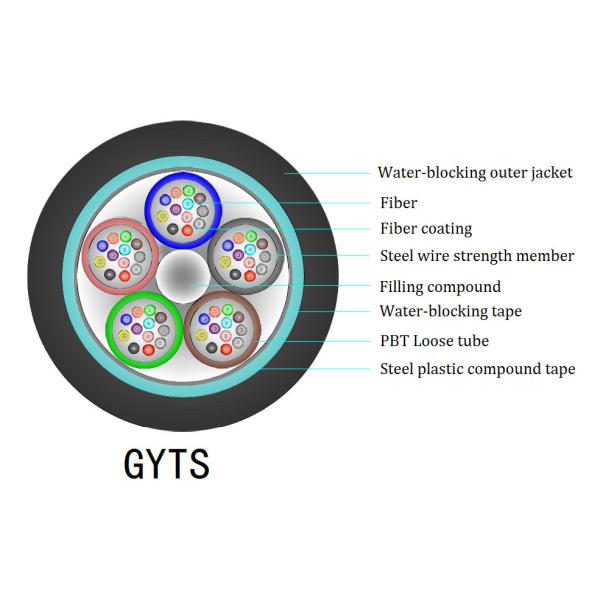

GYTS Armoured Duct Fiber Optical Cable available in 36, 72, and 96 core configurations for robust communication infrastructure connections.

36 72 96 Core Armored Fiber Optic Cable For Connecting Communication Equipments

Our comprehensive 2-288 core optical fiber cable portfolio includes outdoor, indoor, and FTTH variants, all certified with REACH, ISO9001, SGS, and RoHS compliance. With a production capacity of 300km per day, we offer diverse modules and accept custom OEM and ODM services.

36 72 96 Core Armored Fiber Optic Cable For Connecting Communication Equipments
Technical Specifications
Cable Count Outer Sheath Diameter (mm) Weight (kg) Minimum Tensile Strength (N) Minimum Crush Load (N/100mm) Minimum Bending Radius Storage Temperature (°C)
2-60 9.8 116 1500/600 1000/300 20D/10D -20 to +60
62-72 10.5 146 1500/600 1000/300 20D/10D -20 to +60
74-96 12.8 174 1500/600 1000/300 20D/10D -20 to +60
98-120 14.5 209 1500/600 1000/300 20D/10D -20 to +60
122-216 15.5 271 1500/600 1000/300 20D/10D -20 to +60
Optical Characteristics
  • Multimode: G.651, A1a:50/125, A1b:62.5/125 Graded-index fiber
  • Singlemode: G.652(A,B,C,D), B1.1: Conventional fiber
  • Specialty Fibers: B2: Zero dispersion shifted, G.655, B1.2: Cut-off wavelength shifted, G.657(A1,A2,B3), B4: Positive dispersion shifted single-mode fiber
Competitive Advantages
  • OEM fiber optic cable manufacturer with extensive customization capabilities
  • Premium fiber brands: YOFC, CORNING, FUJIKURA
  • Quality certifications: ISO9001, ROHS, REACH
  • Proven track record with major telecom projects in Vietnam, Thailand, Singapore, and Dubai
  • Renowned for excellent product quality, competitive pricing, fast delivery, and superior service
Shipping & Packaging

We offer comprehensive shipping solutions via courier, air, or sea transport. Customers can use appointed shipping companies or our trusted forwarders. Full cargo tracking is provided throughout the delivery process.
