3000m/Roll Armored Optical Cable GYTS Multi Core Fiber Cable SM Steel Wire 48 Core
3000m/Roll Armored Optical Cable GYTS Multi Core Fiber Cable SM Steel Wire 48 Core
Specifications
Brand Name :
MingTong
Model Number :
GYTS
Certification :
ISO
Place of Origin :
Dong Guan China
Price :
500-5000RNB/KM
Payment Terms :
L/C,T/T
Supply Ability :
200km/Day
Delivery Time :
It depends on the actual situation.
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Loose Tube Material: :
PBT Or Jelly
Outer Sheath Material: :
PE
Single Armour Material :
Corrugated Aluminium Tape
Outer Sheath Color :
Black
Waterblocking Material :
Water Blocking Tape Or Filling Compound
Fiber Count :
2-144Core
Name :
Armored Optical Cable
Description
48 Core Armored Optical Cable GYTS Multi Core Fiber Cable SM Steel Wire
Product Description
GYTS 48 Core Multi Core SM Armoured Optical Fiber Cable

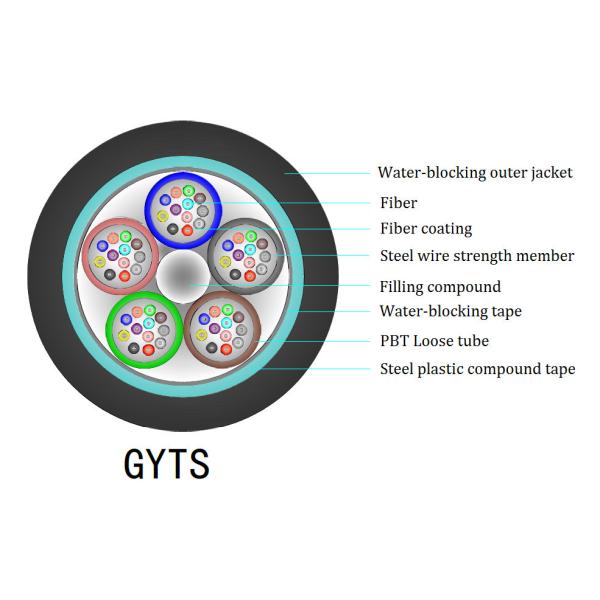

The fibers, 250μm, are positioned in a loose tube made of high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cables with high fiber count, locates in the center of the core as a metallic strength member.
Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The PSP is longitudinally applied over the cable core, which is filled with filling compound to protect it from water ingress. The cable is completed with a PE sheath.
Applicable Fields
  • Aerial / Duct
  • Connecting communication equipment
  • Multi-cores wiring system in data center
Technical Data
Fiber Range Cable Outer Diameter Cable Weight Min. Bending Radius Allowable Tension (N) Max. Crush Loading Force (N/1000mm)
Static Dynamic Short Term Long Term Short Term Long Term
2-30 9.8 115
32-36 10.6 140
38-60 11.0 140 10 times cable diameter 20 times cable diameter 1500 600 1000 300
62-72 11.6 165
74-96 13.2 205
98-120 14.7 245
122-144 16.1 285
146-216 16.6 300
218-240 19.8 395
242-288 22.0 470
Packing & Delivery
  • Length: 3000m/roll, other length available according to client's request
  • Packing: wooden drum
  • Other packing available according to client's request
  • Delivery Detail: 7-15 days after receiving 30% T/T or L/C
