Telecommunication Armoured SM Fiber Optic Cable Small Diameter OEM Color ISO Approved
Telecommunication Armoured SM Fiber Optic Cable Small Diameter OEM Color ISO Approved
Specifications
Brand Name :
MingTong
Model Number :
GYXTW
Certification :
ISO
Place of Origin :
Dong Guan China
Price :
500-5000RNB/KM
Payment Terms :
L/C,T/T
Supply Ability :
200km/Day
Delivery Time :
It depends on the actual situation.
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Loose Tube Material: :
PBT Or Jelly
Outer Sheath Material: :
MDPE / HDPE
Single Armour Material :
Corrugated Aluminium Tape
Outer Sheath Color :
Black
Waterblocking Material :
Water Blocking Tape Or Filling Compound
Highlight :
Sm Armoured Fiber Optic Cable, 2-12 F Armoured Fiber Optic Cable, 2-12 F unitube fiber optic cable
Name :
Armored Optical Cable
Description
Telecommunication Fiber Optic Cable Single Mode Armoured Outdoor Cable 2 core - 12 core
Product Overview

Telcom Fiber Optic Cable SM 2-12 F Unitube Outdoor

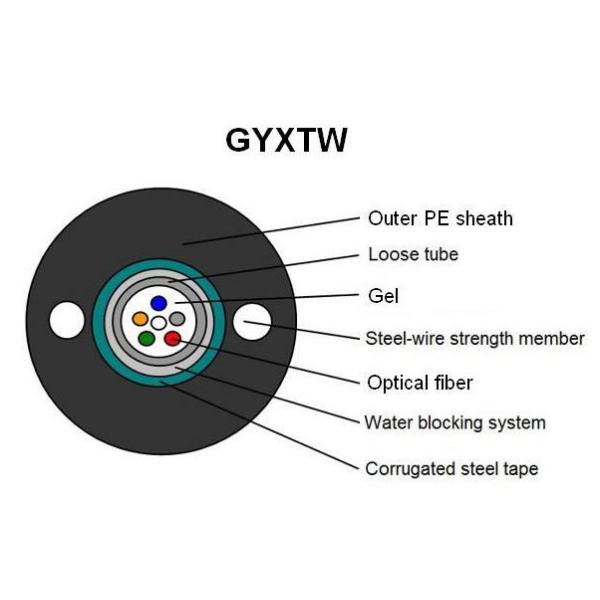

Loose tube with 250μm fibers, filled with water-resistant compound and wrapped with PSP layer longitudinally. Water-blocking material applied between PSP and tube for compactness. Cable has parallel steel wires and PE sheath.

Key Characteristics
  • Excellent mechanical and temperature performance
  • Hydrolysis-resistant loose tube with high strength
  • Critical fiber protection and crush resistance
  • Enhanced flexibility and moisture-proofing PSP
  • Parallel steel wires for superior strength
  • Small diameter and lightweight for easy installation
  • Long delivery lengths available
Standards Compliance
Telecommunication Armoured SM Fiber Optic Cable Small Diameter OEM Color ISO Approved
Optical Characteristics
Parameter G.652 G.655 50/125μm 62.5/125μm
Attenuation (+20ºC)
@850nm ≤3.0 dB/km ≤3.0 dB/km
@1300nm ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km
@1550nm ≤0.22 dB/km ≤0.23 dB/km
Bandwidth (Class A)
@850nm ≥500 MHz*km ≥200 MHz*km
@1300nm ≥1000 MHz*km ≥600 MHz*km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm ≤1480nm
Technical Parameters
Cable Type Fiber Count Cable Diameter (mm) Cable Weight (kg/km) Tensile Strength Long/Short Term (N) Crush Resistance Long/Short Term (N/100mm) Bending Radius Static/Dynamic (mm)
GYXS/GYXTW-2~12 2~12 10.0 105 600/1500 300/1000 10D/20D
GYXS/GYXTW-2~12 2~12 10.6 124 1000/3000 1000/3000 10D/20D
GYXS/GYXTW-14~24 14~24 12.5 149 1000/3000 1000/3000 10D/20D
GYXS/GYXTW-26~36 26~36 14.0 190 1000/3000 1000/3000 10D/20D
GYXS/GYXTW-38~48 38~48 15.0 216 1000/3000 1000/3000 10D/20D

Storage/Operating Temperature: -40ºC to +70ºC

Additional Technical Data
Fiber Num. Outer diameter (mm) Weight (kg/km) Min. Bending radius (mm) Tension (N) Crash loading (N/100mm)
2-12 8.9 90 10 times O.D. / 20 times O.D. 1500 / 600 1000 / 300
14-24 10.2 110
Telecommunication Armoured SM Fiber Optic Cable Small Diameter OEM Color ISO Approved Telecommunication Armoured SM Fiber Optic Cable Small Diameter OEM Color ISO Approved
