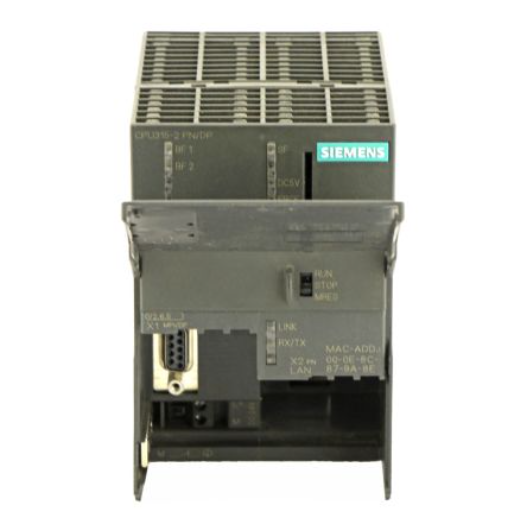

Figure 1 shows the front panel of 6ES7315-2EH13-0AB0.


Table 1 shows the Quick Specs
| Item | Specification |
|---|---|
| Type | CPU 315-2 PN/DP |
| Series | SIMATIC S7-300 |
| Work Memory | 256 KB |
| Interfaces | MPI/DP 12 Mbit/s; PROFINET |
| Power | 24 V DC |
| Storage | Micro Memory Card required |
| Parameter | Value |
|---|---|
| Order Number | 6ES7315-2EH13-0AB0 |
| CPU Type | Central Processing Unit |
| Working Memory | 256 KB (non-expandable) |
| Load Memory | Up to 8 MB via MMC |
| Interface 1 | MPI/DP, 12 Mbit/s |
| Interface 2 | PROFINET Ethernet |
| Supply Voltage | 24 V DC (20.4–28.8 V) |
| Current Consumption | 650 mA |
| Dimensions | 80 × 125 × 130 mm |
| Weight | approx. 460 g |
| Firmware | V2.6 |
| Programming | STEP 7 V5.4 SP2 or higher |
