Description
Siemens 1734-ib8 Overview

The Allen-Bradley 1734-IB8 is an 8-channel 24V DC sinking digital input module, part of the POINT I/O product family (Series C). Designed for industrial automation systems, it connects field devices (e.g., sensors, switches) to control systems via the POINT bus, supporting flexible DIN-rail mounting (requires a compatible 1734-TB/TBS base).

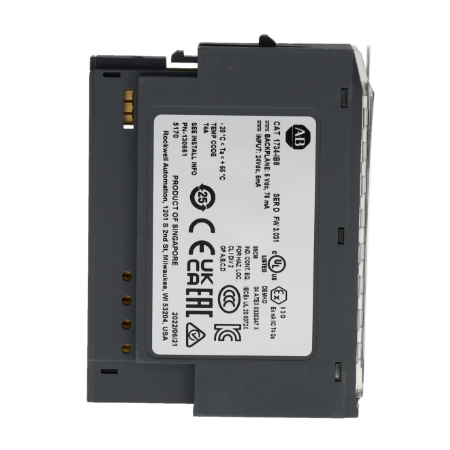

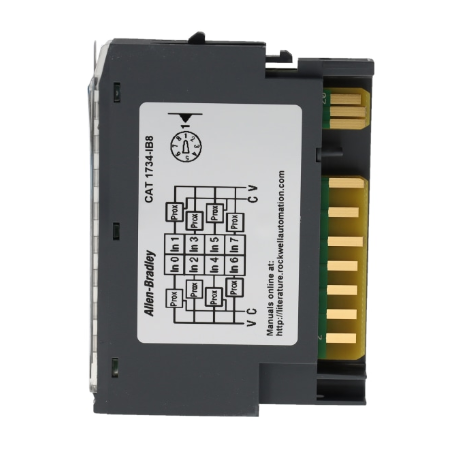

Figure 1 shows the front panel of 1734-ib8.

Allen-Bradley 1734-IB8 POINT I/O 8-Channel 24V DC Sinking Digital Input Module









Allen-Bradley 1734-IB8 POINT I/O 8-Channel 24V DC Sinking Digital Input Module















Quick Specs.

Table 1 shows the Quick Specs.

Parameter Value
Module Type Digital DC Sinking Input
Channels 8
Nominal Input Voltage 24V DC
Input Voltage Range 10–28.8V DC
Operating Temp Range -20°C to +55°C
Mounting Type DIN Rail
Point Bus Current 75 mA (5V DC)





Detailed Specification
Category Details
General Allen-Bradley 1734-IB8, POINT I/O Series, Series C
Inputs 8 channels, 24V DC sinking (PNP) type
Input Parameters - Voltage range: 10–28.8V DC

- On-state current: 2–5 mA (nominal 4 mA)

- Off-state voltage (max): 5V DC

- Input filter: 0.5 ms (hardware) + 0–63 ms (user-selectable)
Power - Point bus: 5V DC, 75 mA

- Power dissipation: 1.6 W (5.5 BTU/hr)
Environmental - Operating temp: -20°C to +55°C

- Storage temp: -40°C to +85°C

- Humidity: 95% non-condensing
Mechanical - Dimensions: 56×12×75.5 mm (2.2×0.47×2.97 in)

- Weight: ~31.8 g (1.12 oz)

- Mounting: DIN rail (requires 1734-TB/TBS base)
Certifications CE, UL, ATEX, IECEx (per product label)
