Omron CP1L‑EM40DT‑D Compact PLC CPU with Ethernet, 24 Inputs 16 Transistor Outputs
Omron CP1L‑EM40DT‑D Compact PLC CPU with Ethernet, 24 Inputs 16 Transistor Outputs
Omron CP1L‑EM40DT‑D Compact PLC CPU with Ethernet, 24 Inputs 16 Transistor Outputs
Omron CP1L‑EM40DT‑D Compact PLC CPU with Ethernet, 24 Inputs 16 Transistor Outputs
Omron CP1L‑EM40DT‑D Compact PLC CPU with Ethernet, 24 Inputs 16 Transistor Outputs
Omron CP1L‑EM40DT‑D Compact PLC CPU with Ethernet, 24 Inputs 16 Transistor Outputs
Specifications
Brand Name :
Siemens
Model Number :
CP1L-EM40DT-D
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
Product Name :
PLC Industrial Control
Part Number :
CP1L-EM40DT-D
Shipment :
DHL
Condition :
New
Lead Time :
2-3 days
WQR12038HBL :
1 year
Keywords :
CP1L-EM40DT-D
Description
Sinamics CP1L-EM40DT-D Overview
The CP1L‑EM40DT‑D is a high‑performance compact PLC from Omron, designed for reliable machine control and automation systems. It integrates 24 digital inputs, 16 NPN transistor outputs, and a built‑in Ethernet port for stable networking, monitoring, and remote access. With fast processing, ample memory, and built‑in positioning functions, it delivers modular‑PLC performance in a micro‑PLC form factor. Ideal for small‑to‑medium automation machines, it supports easy programming, flexible expansion, and seamless integration into industrial networks.

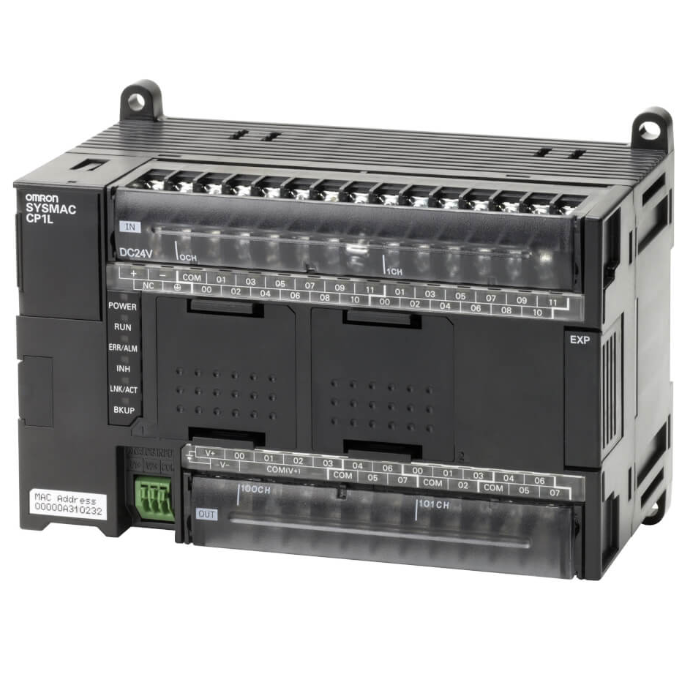

Figure 1 shows the front panel of CP1L-EM40DT-D.

Omron CP1L‑EM40DT‑D Compact PLC CPU with Ethernet, 24 Inputs 16 Transistor Outputs











Omron CP1L‑EM40DT‑D Compact PLC CPU with Ethernet, 24 Inputs 16 Transistor Outputs


















Quick Specs.

Table 1 shows the Quick Specs

Item Specification
Model CP1L‑EM40DT‑D
Power Supply 24 VDC
Digital Inputs 24 points (PNP/NPN)
Digital Outputs 16 points (NPN transistor)
Communication Built‑in Ethernet TCP/IP
Program Memory 20 K steps
Data Memory 32 K words






Detailed Specification
Parameter Details
Model CP1L‑EM40DT‑D
Supply Voltage 24 VDC
Digital Inputs 24 points, 24 VDC, PNP/NPN compatible
Digital Outputs 16 points, NPN transistor, 0.3 A per point
Logic Execution Time 0.55 μs
Program Capacity 20 K steps
Data Memory 32 K words
Communication 1× Ethernet TCP/IP port
High‑speed Counter 4 axes, 100 kHz
Pulse Output 2 axes, 100 kHz
Real‑time Clock Standard
Expansion Capability Up to 3 expansion units, max 160 I/O
Operating Temperature 0 ~ +55 °C
Dimensions (W×H×D) 150 × 90 × 85 mm
Weight Approx. 515 g
