Siemens SINAMICS S120 CU310 DP Control Unit (with PROFIBUS interface, 24V DC supply)
Siemens SINAMICS S120 CU310 DP Control Unit (with PROFIBUS interface, 24V DC supply)
Siemens SINAMICS S120 CU310 DP Control Unit (with PROFIBUS interface, 24V DC supply)
Siemens SINAMICS S120 CU310 DP Control Unit (with PROFIBUS interface, 24V DC supply)
Siemens SINAMICS S120 CU310 DP Control Unit (with PROFIBUS interface, 24V DC supply)
Siemens SINAMICS S120 CU310 DP Control Unit (with PROFIBUS interface, 24V DC supply)
Specifications
Brand Name :
Siemens
Model Number :
6SL3040-0LA00-0AA1
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
Product Name :
PLC Industrial Control
Part Number :
6SL3040-0LA00-0AA1
Shipment :
DHL
Condition :
New
Lead Time :
2-3 days
Warranty :
1 year
Keywords :
6SL3040-0LA00-0AA1
Description
Siemens 6SL3040-0LA00-0AA1 Overview

The Siemens SINAMICS S120 CU310 DP (6SL3040-0LA00-0AA1) is a compact, high-performance control unit designed for the SINAMICS S120 drive system. It serves as the core for coordinating single-axis drive applications (e.g., conveyors, pumps, or basic motion tasks), integrating drive control, I/O processing, and communication via a PROFIBUS DP interface (for seamless integration into PLC-based automation networks).

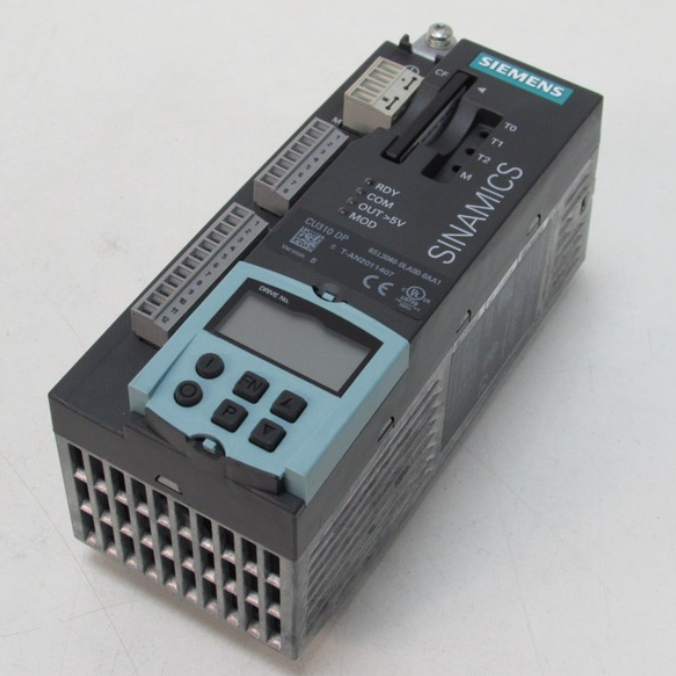

Figure 1 shows the front panel of 6SL3040-0LA00-0AA1.

Siemens SINAMICS S120 CU310 DP Control Unit (with PROFIBUS interface, 24V DC supply)










Siemens SINAMICS S120 CU310 DP Control Unit (with PROFIBUS interface, 24V DC supply)














Quick Specs.

Table 1 shows the Quick Specs.


Item Specification
Manufacturer Siemens
Product Type CU310 DP Control Unit
Operating Voltage 24 V DC
Digital I/O 4 floating inputs; 4 bidirectional I/O
Encoder Support TTL/HTL incremental encoders
Weight ~0.95 kg





Detailed Specification

Category Details
Power Supply - Voltage: 24 V DC

- Max Current: 0.35 A (CU310 DP) + 0.5 A (PM340)
Digital Inputs - Voltage Range: -3 to +30 V

- Response Time (Fast): 5 µs (L→H) / 50 µs (H→L)
Digital Outputs - Voltage: 24 V DC

- Max Load Current: 500 mA per channel
Encoder Interface - Cable Length: 100 m (unipolar) / 300 m (bipolar, HTL)

- Cut-off Frequency: 500 kHz
Physical - Dimensions: 73 mm (W) × 183.2 mm (H) × 89.6 mm (D)

- Power Loss: <20 W
Certifications CE, cULus
