Siemens 6FC5303-0AA00-2AA0 Overview

The Siemens SINUMERIK HT2 (Model 6FC5303-0AA00-2AA0) is a rugged handheld terminal designed for industrial control applications, specifically paired with SINUMERIK CNC systems. It features a 128×64-pixel monochrome display, a keypad for direct input, and a manual pulse generator (MPG) for precise axis positioning.

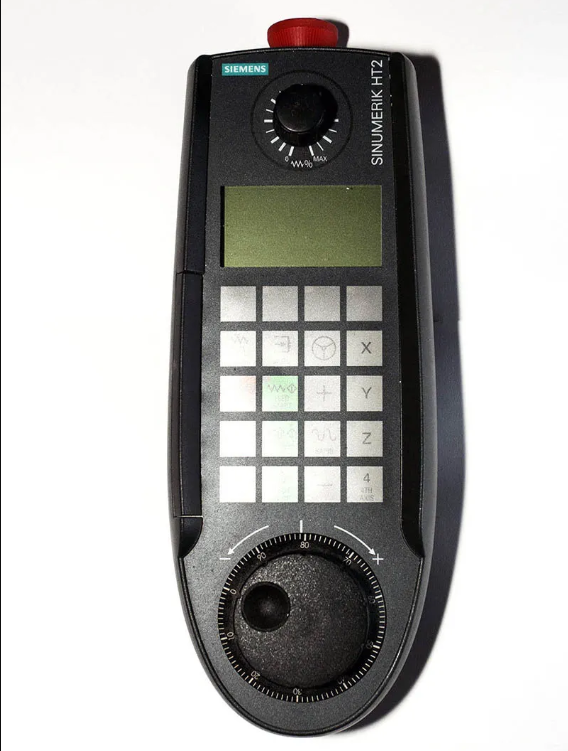

Figure 1 shows the front panel of 6FC5303-0AA00-2AA0.

Siemens SINUMERIK Handheld Terminal HT2 (128×64 Pixel Display)










Siemens SINUMERIK Handheld Terminal HT2 (128×64 Pixel Display)














Quick Specs.

Table 1 shows the Quick Specs.

Parameter Value
Model 6FC5303-0AA00-2AA0
Display Resolution 128×64 pixels
Supply Voltage DC 24V
Max Power Consumption 2.5W
Protection Class IP65
Net Weight 0.69kg (1.52lb)





Detailed Specification
Category Details
Display 128×64 pixel monochrome display
Power Input: DC 24V; Max power consumption: 2.5W
Environmental Operating temp: 0–55°C (32–131°F); Storage/transport: -20–55°C (-4–131°F); Humidity: 5–95% (25°C, non-condensing)
Dimensions Width: 100mm (3.94in); Height: 76.2mm (3in); Depth: 255mm (10.04in)
Protection IP65 (dust/water resistant)
Certifications CE, cULus
Weight 0.69kg (1.52lb)
