Siemens 6ES7136-6DB00-0CA0 Fail-Safe Digital Output Module for ET 200SP
Siemens 6ES7136-6DB00-0CA0 Fail-Safe Digital Output Module for ET 200SP
Siemens 6ES7136-6DB00-0CA0 Fail-Safe Digital Output Module for ET 200SP
Siemens 6ES7136-6DB00-0CA0 Fail-Safe Digital Output Module for ET 200SP
Siemens 6ES7136-6DB00-0CA0 Fail-Safe Digital Output Module for ET 200SP
Siemens 6ES7136-6DB00-0CA0 Fail-Safe Digital Output Module for ET 200SP
Siemens 6ES7136-6DB00-0CA0 Fail-Safe Digital Output Module for ET 200SP
Siemens 6ES7136-6DB00-0CA0 Fail-Safe Digital Output Module for ET 200SP
Specifications
Brand Name :
Siemens
Model Number :
6ES7136-6DB00-0CA0
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
PFX5-CCL-MS :
PLC Industrial Control
Part Number :
6ES7136-6DB00-0CA0
Shipment :
DHL
Condition :
New
Lead Time :
2-3 days
Warranty :
1 year
Keywords :
6ES7136-6DB00-0CA0
Description
Sinamics 6ES7136-6DB00-0CA0 Overview
The 6ES7136-6DB00-0CA0 is a compact, high‑performance fail‑safe digital output module designed for the Siemens SIMATIC ET 200SP distributed I/O system. It provides 4×24 V DC/2 A fail‑safe outputs with channel‑to‑backplane electrical isolation, meeting strict safety requirements up to SIL 3 (IEC 61508) and PL e (ISO 13849‑1).

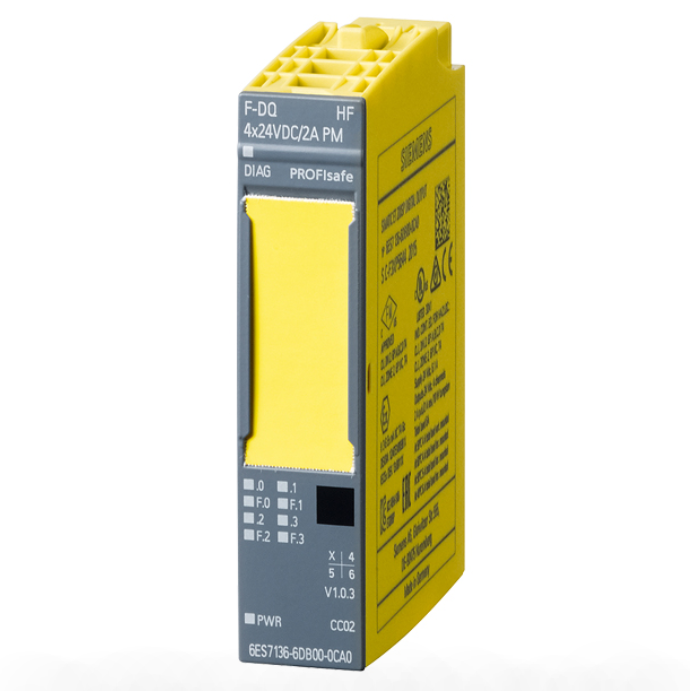

Figure 1 shows the front panel of 6ES7136-6DB00-0CA0.

Siemens 6ES7136-6DB00-0CA0 Fail-Safe Digital Output Module for ET 200SP













Siemens 6ES7136-6DB00-0CA0 Fail-Safe Digital Output Module for ET 200SP
















Quick Specs.

Table 1 shows the Quick Specs

Item Value
Part Number 6ES7136-6DB00-0CA0
Brand Siemens
Type F‑DQ 4×24 V DC/2 A
System ET 200SP
Safety SIL 3, PL e
Width 15 mm
Voltage 24 V DC




Full Specification Table

Specification Details
Product Type Electronics module for ET 200SP
Output Type 4-channel fail‑safe digital output
Output Voltage 24 V DC
Output Current 2 A per channel
Safety Standard IEC 61508 SIL 3, ISO 13849‑1 PL e
Dimensions 15 mm (W) × 73 mm (H) × 58 mm (D)
Base Unit BU type A0
Operating Temp 0 … +60 °C (horizontal), 0 … +50 °C (vertical)
Switching Time 0.4 ms (on/off)
Switching Frequency Max. 30 Hz (resistive load)
Engineering TIA Portal V12+, STEP 7 V5.5 SP3+
