Optical Phase Constant Microscope Laboratory Dark Field 40X 1000X Magnification
Optical Phase Constant Microscope Laboratory Dark Field 40X 1000X Magnification
Specifications
Brand Name :
Phidix
Model Number :
M17100
Certification :
IATF16949，CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 PCS/Month
Delivery Time :
15-20 Work Days
Packaging Details :
Carton
Color :
White
Customization :
OEM, ODM
Lead-time :
15-20 Work Days
Packing :
1 PC/Carton
Warranty :
1 year
Drawtube :
Trinocular
Theory :
Biological Microscope
Magnification :
40X-1000X
Optical system :
Infinity Plan Achromatic optical system
Eyepiece :
WF10X/22mm
Nosepiece :
Quadruple Nosepiece
Focusing System :
Coxial coarse and fine focusing
Illumination :
Halogen lamp or LED
Application :
Laboratory, Hospital, University
Description

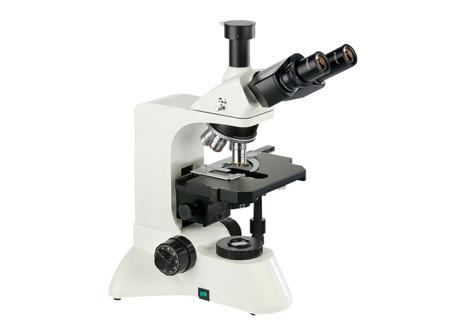

Trinocular Bright Field Dark Field Phase Contrast Laboratory Biological Optical Microscope With Camera

M17100 Trinocular Bright Field Dark Field Phase Contrast Laboratory Biological Optical Microscope With Camera The item could be widely used in various Lab applications with perfect performance. The features are shown as

- It is a multi-observation biological microscope.

- It can be used for water plant, medical lab, biological research lab.

- Optional: bright field, phase contrast, dark field.

Item Description / Value
Optical system: Infinity Plan Achromatic optical system
Observation:

Standard: Bright field.

Optional: Dark field, phase contrast
View tube: Trinocular, 30 ° inclined, 360°rotating. Diopter adjustment: ± 5 diopters. IPD adjustment: 50mm ~ 75mm. Slice biological microscope
Eyepiece: High eye level wide field WF10 × (Φ22mm). infinity Optional 16X(Φ16mm).
Objective(Optional):

Standard: Infinity Plan Achromatic objective: 4X/0.1, 10X/0.25, 40X/0.65(Spr.), 100X(Oil, Spr.)/1.25 .

Optional: Infinity Plan Achromatic phase contrast objective.
Nosepiece:

Standard: Four-position.

Optional: : Five-position.
Stage:

Double layer mechanical stage.

Stage size: 210*140mm.

Moving range: 75mm ×50mm , Precision: 0.2mm
Focusing system:

Coxial coarse and fine focusing system. Tightness and height limitation of coarse regulation are adjustable. Fine adjustment accuracy :0.002mm.

Focusing stoper for protecting the lens and specimen.
Illumination:

Halogen lamp or LED.

Brightness adjustable.
Condenser:

Abbe NA 1.25 condenser, with aperture iris diaphragm.

Optional: Dark field condenser.
Camera adapter: 0.5X or 1X C-Mount.
Digital camera: Optional.

Optical Phase Constant Microscope Laboratory Dark Field 40X 1000X Magnification
