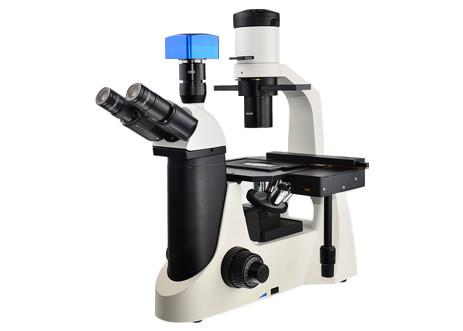

40X 640X Phase Contrast Microscope Magnification Dark Field Biological Inverted
40X 640X Phase Contrast Microscope Magnification Dark Field Biological Inverted
Specifications
Brand Name :
Phidix
Model Number :
M17108
Certification :
IATF16949，CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 PCS/Month
Delivery Time :
15-20 Work Days
Packaging Details :
1 PC/Carton
Color :
White
Customization :
OEM, ODM
Warranty :
1 year
Drawtube :
Trinocular
Theory :
Phase Contrast Microscope
Lead-time :
15-20 Work Days
Magnification :
40X~640X
Eyepiece :
WF10X/20mm
Focusing :
Coarse Focusing
Nosepiece :
Quadruple Nosepiece
Stage :
Double Layers Mechanical Stage
Description

40X 640X Phase Contrast Microscope Magnification Dark Field Biological Inverted

what does dark field microscopy test for?

M17108 40X 640X Phase Contrast Microscope Magnification Dark Field Biological Inverted. The M17108 Inverted Microscope is the premier choice for observing cell and tissue cultures. With ultra-sharp, Infinity-corrected Plan optics, an extra-long WD condenser, and fluorescence capability, the M11112 delivers research-grade observation ideal for cell detection and cell transfection. Choose from standard configurations, or our modular system, which allows for total customization for live cell observation including bright field, phase contrast, fluorescence, or any of these combinations.

Features:

- Allows for longer periods of research.

- Used for viewing larger specimens.

Item Specification M17108
Observation Tube: Trinocular head inclined at 30° ●
Interpupillary distance: From 48-75mm ●
Eyepiece: WF10X/18mm ●
Objectives: Infinity LWD Plan Achromatic objective 10X, 20X and 40X, LWD Phase Contrast Objective 20X ●
Stage:

Attachable mechanical stage with size 200x240mm, X-Y travel is 122x80mm

 ●
Nosepiece: Quadruple Nosepiece ●
Focusing: Coaxial focusing knob, fine focusing is graduated in increment of 1um ●
Condenser: Long working distance Condenser NA 0.30, suitable for Phase contrast/BF with Phase contrast slider and telescope ●
Illumination: 6V 30W halogen lamp ●
Power supply: 100-240V ●
Standard accessories: Dust cover, fuse, power cord ●
Optional accessories WF10X/22mm eyepiece ○
WF10X/20mm pointer eyepiece ○
20X achromatic objective ○
60X achromatic objective ○
C-mount adapter ○
digital camera adapter ○
digital camera eyepiece ○

Note: ● means standard, ○ means optional

40X 640X Phase Contrast Microscope Magnification Dark Field Biological Inverted
