Inverted Phase Contrast Electron Microscopy Trinocular 1000X Laboratory Optical
Inverted Phase Contrast Electron Microscopy Trinocular 1000X Laboratory Optical
Specifications
Brand Name :
Phidix
Model Number :
M17102
Certification :
IATF16949，CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 PCS/Month
Delivery Time :
15-20 Work Days
Packaging Details :
1 PC/Carton
Color :
White
Customization :
OEM, ODM
Packing :
1 PC/Carton
Warranty :
1 year
Drawtube :
Trinocular
Theory :
Biological Microscope
Lead-time :
15-20 Work Days
Magnification :
40~1000X
Eyepiece :
WF10X/20mm
Objective :
4X, 10X, 40X, 100X
Focusing :
Coarse And Fine Adjustment Focusing
Nosepiece :
Quadruple Nosepiece
Light Source :
6V30W Halogen Lamp
Description

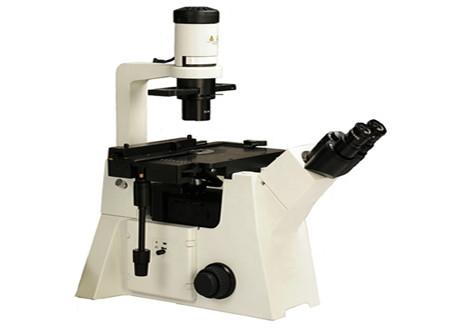

40X-1000X Trinocular Inverted Phase Contrast Microscope

M17102 40X-1000X Trinocular Inverted Phase Contrast Microscope. Phase-contrast microscope is an optical-microscope technique that converts phase shifts in light passing through a transparent specimen to brightness changes in the image. Phase shifts themselves are invisible, but become visible when shown as brightness variations.

Features:

- With camera it can connect to computer or screen, taking photo and recording video as well.

- Competent for scientific research, medicine, industry, agriculture and education.

- Uniform illumination with consistent color temperature.

- Excellent contrast via simple aperture iris operation.

- Enables users to remain comfortable during long periods of routine microscopy observations.

Item Description / Value
Optical system: UCIS Infinity independent achromatic optical system
Head: Seidentopf trinocular head 45° inclined, interpupillary distance 52-75mm
Eyepiece: WF10X/20mm, high eye-point up to 21mm, ±5 Diopter adjustment
Objective:

Infinity Achromatic objective 4X;

Infinity Achromatic phase-contrast objective 10X;

Infinity Achromatic phase-contrast objective 40X;

Infinity Achromatic phase-contrast objective 100X;
Nosepiece: Four-hole converter
Magnification: 40X~l000X
Focusing mechanism: Coaxial coarse and fine focus mechanism with markings. Fine focus sensitivity 0.001mm
Light source: 6V30W halogen illumination
Condensor: N.A. 0.30 Abbe condenser with iris diaphragm, with phase-contrast slide, long work distance 72mm
Stage: Right hand controls, brightness adjustable, low position, mechanical stage, 240mm x 260mm, movement range 135mm x 85mm
Adapter: 0.5x C-mount

Inverted Phase Contrast Electron Microscopy Trinocular 1000X Laboratory Optical
