Achromatic Phase Contrast Microscope Light Source 6V 20W Kohler Illumination System
Achromatic Phase Contrast Microscope Light Source 6V 20W Kohler Illumination System
Specifications
Brand Name :
Phidix
Model Number :
M17104
Certification :
IATF16949，CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 PCS/Month
Delivery Time :
15-20 Work Days
Packaging Details :
1 PC/Carton
Color :
White
Customization :
OEM, ODM
Warranty :
1 year
Drawtube :
Binocular
Theory :
Biological Microscope
Lead-time :
15-20 Work Days
Magnification :
40X~1000X
Eyepiece :
WF10X/18mm
Objective :
4X, 10X, 40X, 100X
Focusing :
Coarse And Fine Adjustment Focusing
Nosepiece :
Quadruple Nosepiece
Description

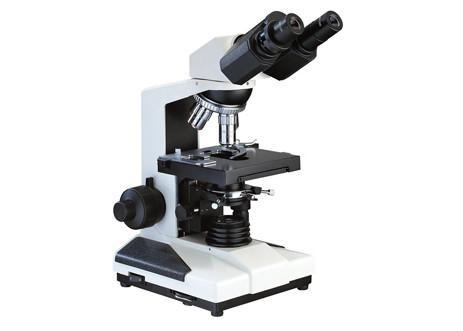

Built-in Illumination 40X-1000X Binocular Phase Contrast Microscope

M17104 Built-in Illumination 40X-1000X Binocular Phase Contrast Microscope. M17104 is a phase-contrast microscope with built-in illumination, 6V20W halogen lamp.

Features:

- Competent for scientific research, medicine, industry, agriculture and education.

- Uniform illumination with consistent color temperature.

- Enables users to remain comfortable during long periods of routine microscopy observations.

Item Description / Value
Objective: Achromatic 4X, 10X, 100X(Oil)
Nosepiece: Four-hole converter
Head: Sliding binocular head, 30° inclined
Eyepiece: WF10X/18mm
Magnification: 40X~l000X
Phase Contrast: Phase contrast objective 40X; Phase contrast slide 40X; Phase contrast condenser; Centering telescope 10X
Stage: Double layer mechanical stage, 140*140mm, moving range 50*75mm
Focusing mechanism: Coaxial coarse & fine focusing. Fine focusing scale 0.002mm, coarse focusing stroke 37.7mm/rotation, with tension adjustment, with up limit, base bearing black plastic cap.
Light source: Built-in illumination 6V20W halogen lamp, 100~240V
Condensor: N.A.1.25 Abbe condenser, iris diaphargm, with filter holder
Filter: Blue, Yellow, Green

Achromatic Phase Contrast Microscope Light Source 6V 20W Kohler Illumination System
