40X 1000X Trinocular Phase Contrast Microscope Bright Field Light WF10X/20mm
40X 1000X Trinocular Phase Contrast Microscope Bright Field Light WF10X/20mm
Specifications
Brand Name :
Phidix
Model Number :
M17103
Certification :
IATF16949，CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 PCS/Month
Delivery Time :
15-20 Work Days
Packaging Details :
1 PC/Carton
Color :
White
Customization :
OEM, ODM
Warranty :
1 year
Drawtube :
Binocular
Theory :
Biological Microscope
Lead-time :
15-20 Work Days
Magnification :
40~1000X
Eyepiece :
WF10X/20mm
Objective :
4X, 10X, 40X, 100X
Focusing :
Coarse And Fine Adjustment Focusing
Nosepiece :
Quadruple Nosepiece
Description

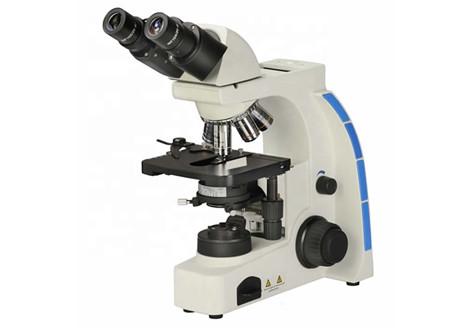

40X-1000X Binocular Phase Contrast Microscope

M17103 40X-1000X Binocular Phase Contrast Microscope. M17103 is designed as phase-contrast microscope, which is an optical-microscope technique that converts phase shifts in light passing through a transparent specimen to brightness changes in the image. Phase shifts themselves are invisible, but become visible when shown as brightness variations.

Features:

- Uniform illumination with consistent color temperature.

- Enables users to remain comfortable during long periods of routine microscopy observations.

- Competent for scientific research, medicine, industry, agriculture and education.

Item Description / Value
Optical system: UCIS Infinity independent achromatic optical system
Head: Seidentopf binocular head 30° inclined, 360 ° rotatable interpupillary distance 52-75mm
Eyepiece: WF10X/20mm
Objective:

Infinity Achromatic objective 4X;

Infinity Achromatic phase-contrast objective 10X;

Infinity Achromatic phase-contrast objective 40X;

Infinity Achromatic phase-contrast objective 100X;
Nosepiece: Four-hole converter
Magnification: 40X~l000X
Focusing mechanism: Coaxial coarse and fine focus mechanism with markings. Fine focus sensitivity 0.001mm
Light source:

6V20W halogen illumination, brightness adjustable;

6V30W halogen illumination, brightness adjustable;

3W LED, brightness adjustable
Condensor: N.A. 1.25 Phase contrast condenser, center adjustable
Stage: Mechanical stage with double layers, 156mmx138mm, movement range 76mmx 52mm
