Infinity 195mm 160mm Achromatic Lens Microscope Objectives Metallurgical
Infinity 195mm 160mm Achromatic Lens Microscope Objectives Metallurgical
Specifications
Brand Name :
Phidix
Model Number :
M21104
Certification :
IATF16949，CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 PCS/Month
Delivery Time :
15-20 Work Days
Packaging Details :
1 PC/Carton
Customization :
OEM, ODM
Packing :
1 PC/Carton
Warranty :
1 year
Lead-time :
15-20 Work Days
Color :
Black Or Silver
Magnification :
4X/5X/10X/20X/40X/50X/100X
Application :
Biological And Metallurgical Microscopes
Description

Infinity 160mm 195mm Objective Lens For Both Biological And Metallurgical Microscope

M21104 Infinity 160mm 195mm Objective Lens For Both Biological And Metallurgical Microscope. M21104 is a series of objective lens for both biological and metallurgical microscopes. And the exact magnification and color needed should be confirmed before purchasing.

Features:

- Universal industrial objective lens for both biological and metallurgical microscopes.

- Long life span.

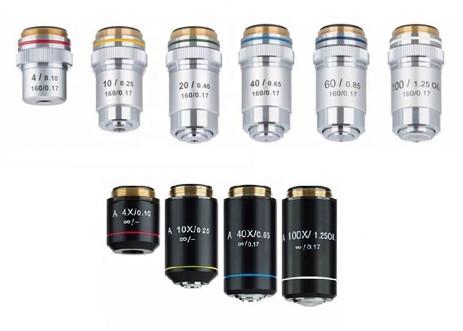

Item Description / Value
4X, Silver 4/0.10, 160/0.17
5X, Silver 5/0.15, 160/0.17
10X, Silver 10/0.25, 160/0.17
20X, Silver 20/0.40, 160/0.17
40X, Silver 40/0.65, 160/0.17
60X, Silver 60/0.85, 160/0.17
100X, Silver 100/1.25 Oil, 160/0.17
4X, Black A 4X/0.10, ∞/-
10X, Black A 10X/0.25, ∞/-
40X, Black A 40X/0.65, ∞/0.17
100X, Black A 100X/1.25 Oil, ∞/0.17

Remarks: the A/M objectives are designed for upright microscopes with different types as below:

1. Infinity Plan achromatic objective

  • PL 4X/0.10
  • PL 10X/0.25
  • PL 20X/0.40
  • PL 40X/0.65(Spr.)
  • PL 60X/0.85
  • PL 100X/1.25(Spr., Oil)

2. Infinity Plan achromatic phase contrast objective

  • PL 10X/0.25 PHP
  • PL 20X/0.40 PHP
  • PL 40X/0.65 PHP(Spr.)
  • PL 100X/1.25 PHP(Spr. Oil.)

3. Plan achromatic objective

  • PL 4X/0.10
  • PL 10X/0.25
  • PL 20X/0.40
  • PL 40X/0.65(Spr.)
  • PL 60X/0.85(Spr.)
  • PL 100X/1.25(Spr., Oil)

4. Achromatic objective

  • 4X/0.10
  • 10X/0.25
  • 20X/0.4
  • 40X/0.65
  • 60X/0.85(Spr.)
  • 100X/1.25(Spr., Oil)

Infinity 195mm 160mm Achromatic Lens Microscope Objectives Metallurgical
