HDMI Digital Microscope Camera USB 16MP Video Microscope Camera
HDMI Digital Microscope Camera USB 16MP Video Microscope Camera
Specifications
Brand Name :
Phidix
Model Number :
M21147
Certification :
IATF16949，CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 PCS/Month
Delivery Time :
15-20 Work Days
Packaging Details :
1 PC/Carton
Customization :
OEM, ODM
Packing :
1 PC/Carton
Warranty :
1 year
Lead-time :
15-20 Work Days
Color :
Black
Resolution :
1920*1080
Pixels :
16MP
Frame Rate :
10fps
Interface :
USB2.0, HDMI, WIFI, Bluetooth
Sensor :
1/2.3'' Color CMOS
Memory :
Hdd or USB flash disk
Screen Size :
12'' Touchpad
Application :
Biological And Metallurgical Microscopes
Description

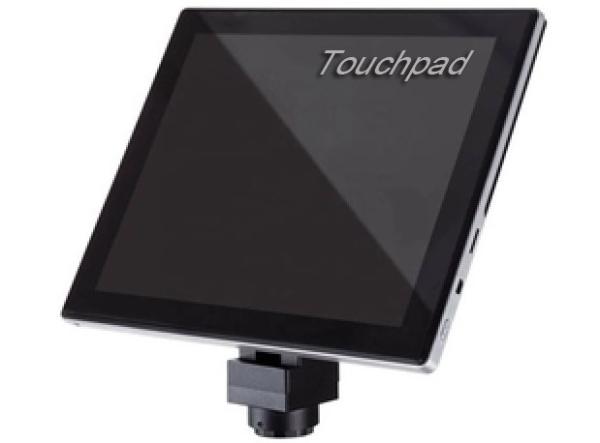

HDMI & USB Output 12 Inch Touchpad with Built-in 16MP Mmicroscope Camera

M21147 is a universal industrial touchpad for both biological and metallurgical microscopes, 12 inch touchpad with built-in 16MP microscope camera.

Features:

- Universal industrial touchpad for both biological and metallurgical microscopes.

- 12 inch touchpad with built-in 16MP microscope camera.

- Long life span.

Item Description / Value M21147
Touchpad Tablet
Operation system: Windows 10 64-bit ●
Language: Multilanguages already installed ●
LCD monitor: 12 inch HD monitor, touch screen ●
CPU: Intel® Atom™ , Quad core, 1.92 GHz ●
Resolution: 1920x1080, 16/9 Full HD ●
Storage: Hdd or USB flash disk ●
Input/output port: USB2.0, HDMI, WIFI, Bluetooth ●
Wifi: 2.4GHz/5GHz WIFI, 802.11a/b/g/n/ac ●
BlueTooth: Bluetooth 4.0 ●
Control: By mouse and by touching ●
Power supply: Power Adapter, input AC200-240V, 50/60Hz. Output: 2V/2A ●
Software:

Vision Lite (full view function is also included for a Live Camera view).

Continuous auto exposure, image size, image capture, compressed video capture, measurement.

Continuous control of Brightness, gain, exposur time, colors, color enhancement.

 ●
Touchpad camera
Resolution: 16MP ●
Signal output: USB2.0 ●
Sensor Size: 1/2.3” ●
Sensor technology: CMOS ●
Image format: 16:9 ●
Full image size: Max image 4608*3456, video 1920*1080P ●
Pixel size: 1.335um*1.335um ●
Frame rate full resolution: 10fps ●
Frame rate other resolutions: 15 fps (1920x1080), 30 fps (640x480) ●
Sensitivity: 0.5 V/Lux-second (550 nm) ●
Signal / noise ratio: 45 dB ●
Dynamic range: 70 dB ●
Max exposure time: 15s ●
ADC conversion: 12 Bit ●
Color depth: 8 Bit ●
On camera IR filter: 650nm ●
Automatic white balance: Auto/Manual ●
Automatic gain control: Auto/Manual ●
Automatic back light control: Auto/Manual ●
Exposure control: Auto/Manual ●

Note: ● means standard, ○ means optional
