CNC Industrial 20M Pixel Digital Camera With Maximum Resolution 5472x3648
CNC Industrial 20M Pixel Digital Camera With Maximum Resolution 5472x3648
CNC Industrial 20M Pixel Digital Camera With Maximum Resolution 5472x3648
CNC Industrial 20M Pixel Digital Camera With Maximum Resolution 5472x3648
CNC Industrial 20M Pixel Digital Camera With Maximum Resolution 5472x3648
CNC Industrial 20M Pixel Digital Camera With Maximum Resolution 5472x3648
Specifications
Brand Name :
Phidix
Model Number :
M21123
Certification :
IATF16949，CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 PCS/Month
Delivery Time :
15-20 Work Days
Packaging Details :
1 PC/Carton
Customization :
OEM, ODM
Packing :
1 PC/Carton
Warranty :
1 year
Lead-time :
15-20 Work Days
Theory :
Industrial Camera
Target :
1/1.2
Output Mode :
USB3.0
Frame Rate :
30FPS
Resolution :
5472 x 3648
Description

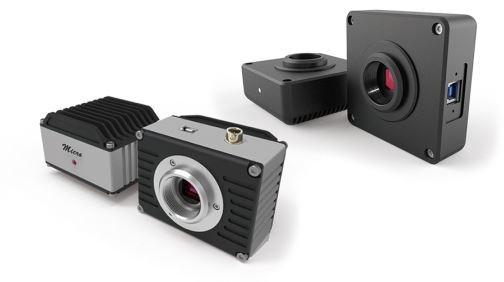

20M Pixel Digital Camera With Maximum Resolution 5472x3648

M21123 20M Pixel Digital Camera With Maximum Resolution 5472x3648. This series is a high-speed and high-resolution camera specially designed for microscope.

Features:

  • Built-in latest color correction algorithm of image, which makes the image clarity and color reproduction. Extremely high degree, delicate and real image.
  • All models of cameras have frame memory, which makes the image output stable and the image transmission smoother.
  • Appearance of high-end atmosphere, CNC fine milling.
  • Equipped with USB2.0 and USB3.0 interfaces. The maximum resolution is 20 million pixels, The target surface size reaches 1/1.2.

Item M21122A M21122B M21122C M21122D M21122E M21122F M21122G
Interface: USB2.0 USB2.0 USB3.0 USB3.0 USB3.0 USB3.0 USB3.0
Pixel: 300 500 300 500 600 1200 2000
Resolution: 2048x1536 2592x1944 2048x1536 2592x1944 3073x2048 4000x3000 5472x3648
Pixel size: 3.2μm 2.2μm 3.2μm 2.2μm 2.4μm 1.85μm 2.4μm
Target: 1/2 1/2.5 1/2 1/2.5 1/1.8 1/1.7 1/1.2
Data: 8bit 8bit 8bit 8bit 12bit 12bit 12bit
Exposure: line by line
FPS Output: 12FPS 7FPS 12FPS 14FPS 30FPS

Bin(2x2):30FPS

All-pixel:15FPS

Bin(2x2):15FPS

All-pixl:9FPS
Color Output: Colorful

CNC Industrial 20M Pixel Digital Camera With Maximum Resolution 5472x3648
