Maximum Pixel 5M USB 2.0 Digital Microscope Camera 22FPS Frame Rate
Maximum Pixel 5M USB 2.0 Digital Microscope Camera 22FPS Frame Rate
Maximum Pixel 5M USB 2.0 Digital Microscope Camera 22FPS Frame Rate
Maximum Pixel 5M USB 2.0 Digital Microscope Camera 22FPS Frame Rate
Maximum Pixel 5M USB 2.0 Digital Microscope Camera 22FPS Frame Rate
Maximum Pixel 5M USB 2.0 Digital Microscope Camera 22FPS Frame Rate
Maximum Pixel 5M USB 2.0 Digital Microscope Camera 22FPS Frame Rate
Maximum Pixel 5M USB 2.0 Digital Microscope Camera 22FPS Frame Rate
Maximum Pixel 5M USB 2.0 Digital Microscope Camera 22FPS Frame Rate
Maximum Pixel 5M USB 2.0 Digital Microscope Camera 22FPS Frame Rate
Specifications
Brand Name :
Phidix
Model Number :
M21142
Certification :
IATF16949，CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 PCS/Month
Delivery Time :
15-20 Work Days
Packaging Details :
Carton
Color :
White
Customization :
OEM, ODM
Warranty :
1 year
Lead-time :
15-20 Work Days
Exposure :
Auto/Manual
Resolution :
2560x1920
Application :
For Microscopes
Pixel :
5M
Target :
1/2.8"
Frame Rate :
22FPS
Data Interface :
USB2.0
Description

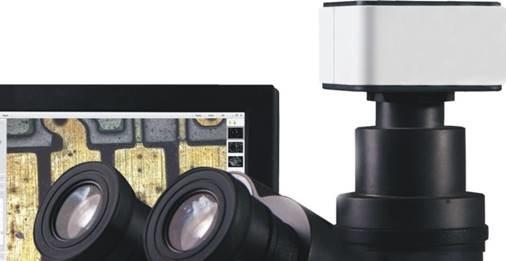

USB2.0 Interface Digital Graphics Accelerated Microscope Camera With Maximum Pixel 5M

M21142 USB2.0 Interface Digital Graphics Accelerated Microscope Camera With Maximum Pixel 5M. Innovative technology whilst maintaining the fidelity of the original image output simple and economical microscopy imaging.

Features:

- The camera uses USB2.0 interface to transmit images.

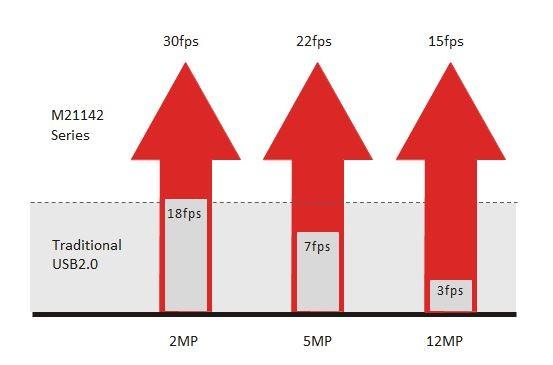

- Graphics Accelerated Microscope Camera To Get Higher FPS.

Item Description / Value M21142A M21142B M21142C
Interface: USB2.0 ● ● ●
Sensor Model: Sony ● ●
Panasonic ●
Sensor Size: 1/2.9" ●
1/2.8" ●
1/2.33" ●
Resolution: 2MP, 1920x1080 ●
5MP, 2560x1920 ●
12MP, 4000x3000 ●
Pixel size: 2.8μmx2.8μm ●
2.0 μmx2.0μm ●
1.335μmx1.335μm ●

Frame Rate:

 30fps ●
22fps ●
15fps ●
Color/Mono: Color ● ● ●
Shutter Type: Rolling Shutter ● ● ●
Exposure Mode: Auto/Manual ● ● ●
Picture Format: TIFF/JPG/PNG/DICOM ● ● ●
Operating System: Windows 7/8/10 (32 Bit/64 Bit) ● ● ●
PC Software: Self-developed ● ● ●
SDK: C/C++, C#, Directshow ● ● ●
Optical Interface: C-Mount ● ● ●
Data Interface: USB2.0 ● ● ●

Operating

Temperature:

 0-60℃ ● ● ●

Operating

Humidity:

 10%-85% ● ● ●
Camera Size: 68X68X42.5mm ● ● ●
Camera Weight: 253g ● ● ●

Remarks: ● means standard configuration ○ means optional
