1080P Digital Camera Microscope Accessories 4 Channels Support USB2.0
1080P Digital Camera Microscope Accessories 4 Channels Support USB2.0
1080P Digital Camera Microscope Accessories 4 Channels Support USB2.0
1080P Digital Camera Microscope Accessories 4 Channels Support USB2.0
1080P Digital Camera Microscope Accessories 4 Channels Support USB2.0
1080P Digital Camera Microscope Accessories 4 Channels Support USB2.0
1080P Digital Camera Microscope Accessories 4 Channels Support USB2.0
1080P Digital Camera Microscope Accessories 4 Channels Support USB2.0
1080P Digital Camera Microscope Accessories 4 Channels Support USB2.0
1080P Digital Camera Microscope Accessories 4 Channels Support USB2.0
Specifications
Brand Name :
Phidix
Model Number :
M21121
Certification :
IATF16949，CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 PCS/Month
Delivery Time :
15-20 Work Days
Packaging Details :
1 PC/Carton
Customization :
OEM, ODM
Packing :
1 PC/Carton
Warranty :
1 year
Lead-time :
15-20 Work Days
Theory :
Industrial Camera
Pixels :
5MP
Output Mode :
USB3.0 or USB2.0
Frame Rate :
1080P@60FPS
Resolution :
1920*1080
Description

1080P/60FPS Digital Camera 4 Channels Support USB3.0 & USB2.0

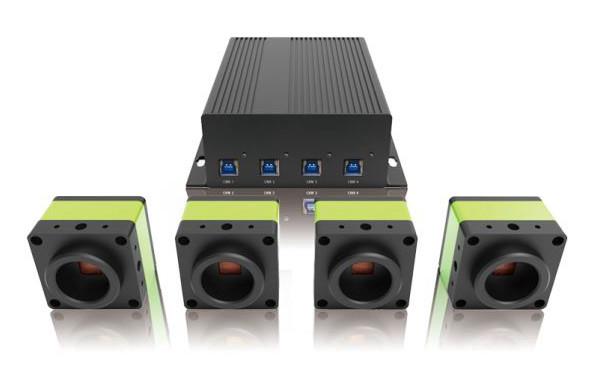

M21121 4 Channels Of 1080P/60FPS Camera. This series of cameras have a changeable combination of two numbered cameras, which could divid the screen into four equal parts, and be able to individually be enlarged to the original size, with the aid of a spcial designed 4-port-box.

Features:

  • Up to 4 channels of 1080P/60FPS camera plotting;
  • 8 split screen modes, which can be switched at will;
  • The camera separately measures, adjusts the parameters and adjusts the crosshair;
  • High-definition photo taking, picture echo, overall screenshot;
  • When the screen is divided into four equal parts, one camera can be individually enlarged to the original size;
  • Any combination of two numbered cameras, plug and play;
  • Support GigE interface SDK development package;
  • USB 3.0/2.0 can be connected with USB flash drive, mouse and keyboard.

Item Description / Value M21121A M21121B
Pixel size: 2.75μm x 2.75μm ● ○
3.75μm x 3.75μm ○ ●
Target: 1/3” ● ○
1/2” ○ ●
Resolution: 1920 x 1080 ● ●
Data: 12bit ● ●
Exposure: Line by line ● ●
Color Output: Colorful ● ●
FPS Output: 60FPS ● ●
Interface: USB3.0 ● ●
Size: 46mmx46mmx38mm ● ●
Weight: 117g ●

●

Remarks: ● means standard configuration ○ means not available

Spectrogram of M21121A:

1080P Digital Camera Microscope Accessories 4 Channels Support USB2.0

Spectrogram of M21121B:

1080P Digital Camera Microscope Accessories 4 Channels Support USB2.0

1080P Digital Camera Microscope Accessories 4 Channels Support USB2.0

Dimension of box:

1080P Digital Camera Microscope Accessories 4 Channels Support USB2.0

1080P Digital Camera Microscope Accessories 4 Channels Support USB2.0

1080P Digital Camera Microscope Accessories 4 Channels Support USB2.0

Specifications of box:

Item Description / Value BOX-1 BOX-2
Camera Input: 2X-USB3.0 ● ○
4X-USB3.0 ○ ●
Resolution: 1920 x 1080 ● ●
FPS Output: 60FPS ● ●
Color Output: Colorful ● ●
Processor: ARM Cortex A9 dual-core@1.4GHz ● ●
RAM: 2GB DDR3 ● ●
Interface: 1*HDMI,1*USB3.0,1*USB2.0,1*GIGE ● ●
Power: DC 12V/3A ● ●
Size: 147mmx55mmx155mm ● ●
Weight: 513g ● ●

Remarks: ● means standard configuration ○ means not available

1080P Digital Camera Microscope Accessories 4 Channels Support USB2.0
