Overview

The ONV-POE33052PFM is a Gigabit managed PoE switch independently developed by ONV. It features 48×10/100/1000Base-T adaptive RJ45 ports and 4×100/1000Base-X uplink SFP fiber ports. Ports 1-48 support the IEEE 802.3af/at PoE standard with single-port PoE power up to 30W. As a PoE power supply device, it automatically detects and identifies compliant powered devices and powers them through network cables. It can power PoE terminal equipment such as wireless APs, IP cameras, VoIP phones, and building access-control intercoms, meeting network environments that require high-density PoE power supplies. Ideal for hotels, campuses, parks, supermarkets, scenic spots, factory dormitories, and small-to-medium enterprises seeking cost-effective networking solutions.

The ONV-POE33052PFM offers L3 network management functions, supporting IPv4/IPv6 management and dynamic routing forwarding. It includes comprehensive security protection mechanisms, ACL/QoS policies, and rich VLAN functions for easy management and maintenance. Supports multiple network redundancy protocols: STP/RSTP/MSTP (<50ms) and ERPS (<20ms), enhancing link backup and network reliability. Provides multiple network management methods including Web, CLI, SNMP, and Telnet for flexible configuration of PoE management, port management, routing address management, port flow control, VLAN segmentation, IGMP, and security policies.

Technical Specifications

Network Management Features

• Port real-time flow management (Flow Interval)
• Broadcast storm suppression based on port rate
• SFP optical module DDMI real-time digital diagnosis
• Port EEE Green Ethernet Energy-Saving configuration and status view
• IEEE802.3x flow control (Full duplex), Port exception protection mechanism
• Limit the rate of packet traffic on incoming and outgoing ports; the mini granularity is 16Kbps and max 1Gbps
• L3 network management functions and IPv4/IPv6 dual-stack management
• L3 routing, forwarding, and communication between different network segments and VLANs
• Access, Trunk, and Hybrid port configurations
• Voice VLAN, QinQ configuration, Port-based VLAN (4K), IEEE 802.1q Protocol-based VLAN, MAC address-based VLAN, GVRP VLAN protocol
• LACP dynamic aggregation, Static aggregation, Max 26 aggregation groups and max 8 ports per group
• STP BPDU Guard, BPDU filtering and BPDU forwarding
• STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s)
• ERPS ring network, Recovery time less than 20ms, ITU-T G.8032
• MVR (Multicast VLAN Registration), User quick log out, MLD Snooping
• Multicast VLAN, IGMP Snooping v1/v2/v3 and 256 multicast groups at most
• Bidirectional traffic mirroring for basic ports one-to-multiple mirroring, supports up to 4 port sessions.
• Queue Scheduling Algorithm (SP, WRR, SP+WRR)
• 8×Output queues of each port, 802.1p/DSCP priority mapping
• Flow-based Rate Limiting, Flow-based redirection, Flow-based Packet Filtering, Diff-Serv QoS, Priority Mark/Remark
• ACL deployment based on port and VLAN
• L2-L4 packet filtering, can match the first 80 bytes of a packet
• DoS attack protection, Host data backup mechanism
• IP source address protection, ARP intrusion detection
• SSH 2.0, providing a secure, encrypted channel for user login
• IEEE 802.1X authentication based on ports and MAC addresses
• MAC address black hole, IP Source Guard function, Port isolation
• SSL, ensuring secure data transmission, MAC address learning limit
• User hierarchical management and password protection, ARP packet rate limiting.
• Port broadcast packet suppression.
• IP+MAC+VLAN+port four-element binding function.
• AAA, RADIUS, and TACACS+ authentication
• DHCP Client, DHCP Snooping, DHCP Server
• NMS platform cluster management (LLDP+SNMP)
• Ping detection, Web network management (HTTPS)
• Console/ SSH/ Telnet/ CLI command line configuration
• NTP clock, System work log, One-click recovery, Cable length detection
• HTTP, TFTP file upload and download management, SNMP V1/V2C/V3
• View CPU real-time utilization status, Link Layer Discovery Protocol LLDP

System Requirements

Web browser: Google Chrome V42 or later, Mozilla Firefox 2.5 or later, Microsoft Internet Explorer 10 or later. Category 5 or higher Ethernet cable. TCP/IP, network adapter, and network operating system (such as Linux, or Mac OS X) installed on each computer in the network.

Key Features

• Gigabit line speed access with uplink SFP fiber ports: Supports non-blocking wire-speed forwarding, full-duplex based on IEEE802.3x and half-duplex based on Backpressure. Gigabit RJ45 port and uplink SFP port combination enables flexible networking for various scenarios.
• Smart PoE power supply: Complies with IEEE802.3af/at PoE power supply standard, automatically identifies PoE equipment for power supply. Supports PoE network management functions including PoE on/off, port power status monitoring, and time scheduling. 48×10/100/1000Base-T RJ45 ports support PoE power for security monitoring, conference call systems, wireless coverage, and other applications.
• Strong business processing capability: Supports ERPS ring network and STP/RSTP/MSTP to eliminate layer 2 loops and enable link backup. Supports IEEE802.1Q VLAN, Voice VLAN, and QinQ configuration. Supports static and dynamic aggregation to increase link bandwidth, load balancing, and link reliability. Supports QoS with port-based, 802.1P-based, and DSCP-based priority modes and four queue scheduling algorithms. Supports ACL for flexible security access control policies. Supports IGMP V1/V2/V3 multicast protocol for multi-terminal high-definition video surveillance and video conference requirements.
• Security: Supports IP+MAC+Port+VLAN four-way binding function. Supports port isolation and port broadcast storm suppression. Supports 802.1X authentication for LAN computers with controlled port authorization based on authentication results.
• Stable and reliable: CE, FCC, RoHS certified. User-friendly panel with LED indicators for PWR, PoE, and Link status. Self-developed power supply with high redundancy design provides long-term stable PoE power output. Low power consumption with fan, galvanized steel metal housing, and excellent heat dissipation for stable operation.
• Easy O&M management: Supports CPU monitoring, memory monitoring, and Ping detection. HTTPS, SSLV3, SSHV1/V2 encryption for secure management. RMON, system log, and port traffic statistics for network optimization. LLDP for network management system link status queries. Multiple management methods including Web network management, CLI command line (Console, Telnet), SNMP (V1/V2/V3).

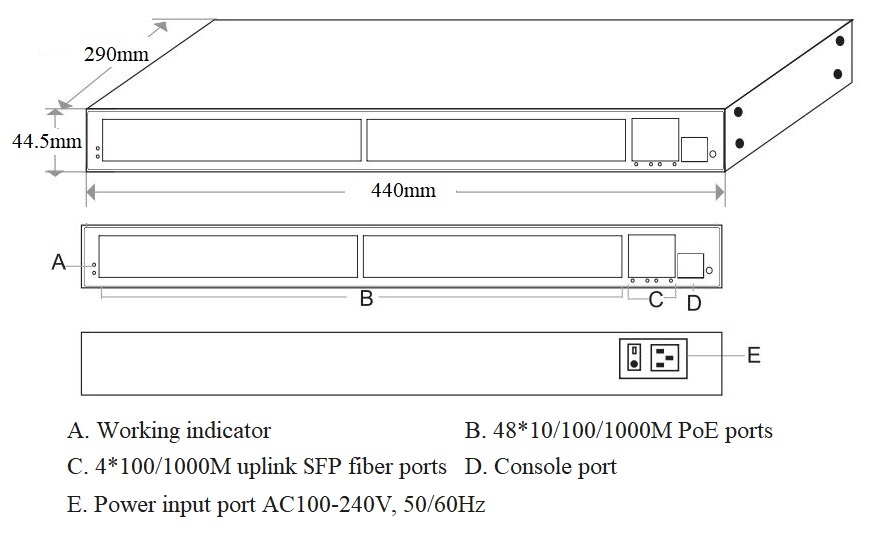

Dimensions

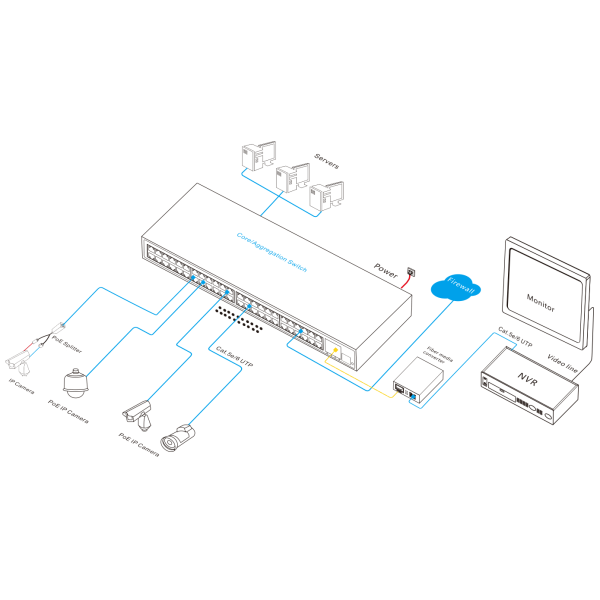

Application

Ordering Information

Note: The optical module is not included and needs to be purchased separately.

Packing List

Optical Module Options
