Specifications
PoE Standard :
IEEE802.3af/at
Place of Origin :
China
Forwarding Rate :
35.71Mpps
Dimensions :
166×150×90mm
Jumbo Frame :
9.6K
MOQ :
1
Packaging Details :
Packaging dimensions: 265*205*108mm, weight: 2.3kg, Carton dimensions: 490*440*270mm, 8 pcs/carton, weight: 20kg
Supply Ability :
500000 pcs/month
Brand Name :
ONV
Switching Capacity :
52Gbps
Net Weight :
2.1kg
MAC Address Table :
8K
Certification :
CE, FCC, RoHS
Payment Terms :
T/T,Western Union
Delivery Time :
2-7 work days
Model Number :
ONV-IPS33024PM-8F
Operating Temperature :
-40°C to +80°C
Max PoE Power :
30W per port
Port Count :
24 (16 RJ45, 8 SFP)
Description
24-port Gigabit Managed Industrial PoE Switch
Product Overview

The ONV-IPS33024PM-8F is a Gigabit managed industrial PoE switch independently developed by ONV. It features 16×10/100/1000Base-T adaptive RJ45 ports and 8×100/1000Base-X SFP fiber ports. Ports 1-16 support IEEE802.3af/at PoE standard with single-port PoE power up to 30W.

As a PoE power supply device, it automatically detects and recognizes standard power-receiving equipment and supplies power through network cables. It can power PoE terminal equipment such as wireless APs, IP cameras, VoIP phones, and industrial sensors, meeting high-density PoE power supply requirements in network environments.

Ideal for intelligent transportation, rail transit, electric power, mining, metallurgy, green energy, and industrial applications requiring cost-effective and stable communication networks.

Technical Specifications
Model ONV-IPS33024PM-8F
Fixed Port Power-off alarm switch (FAULT)
1×RS232 console port(115200,N,8,1)
8×100/1000Base-X uplink SFP ports (Data)
16×10/100/1000Base-T PoE ports (Data/Power)
2 set V+, V- redundant DC power ports (6P industrial Phoenix terminal)
Ethernet Port Port 1-16 support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission 10BASE-T: Cat3,4,5 UTP (≤100 meters)
100BASE-TX: Cat5 or later UTP (≤100 meters)
1000BASE-T: Cat5e or later UTP (≤100 meters)
Optical Fiber Port Gigabit optical fiber interface, default no include optical module (optional single-mode/multi-mode, single fiber/dual fiber optical module. LC)
Network Management Type L2+
Switching Capacity 52Gbps (non-blocking)
Forwarding Rate@64byte 35.71Mpps
PoE Port Port 1-16
Max Power Per Port 30W, IEEE802.3af/at
Input Voltage/Interface DC44-57V, 6P industrial Phoenix terminal, support anti-reverse protection
Operation Temperature/Humidity -40°C~+80°C, 5%~90% RH non-condensing
Dimension (L×W×H) 166×150×90mm

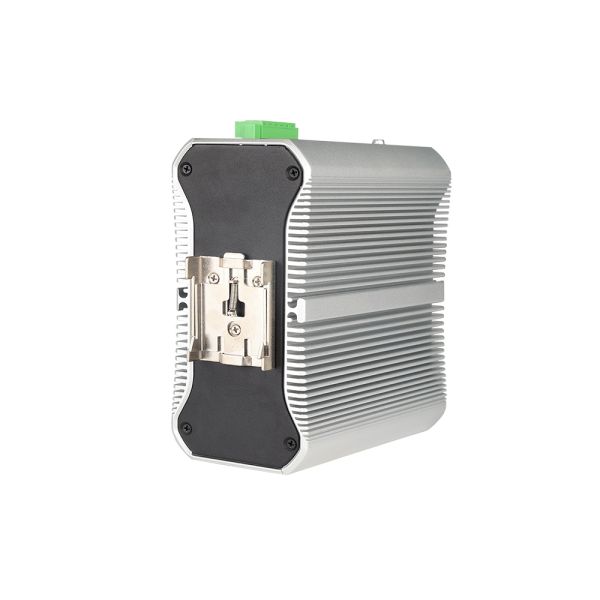

Installation Desktop, 35mm DIN Rail
Warranty 5 years, lifelong maintenance
L2+ Managed 24 Port Gigabit Industrial Fiber PoE Switch With 52Gbps Switching Capacity
Product Features
  • Gigabit Access: Non-blocking wire-speed forwarding, full/half duplex support, flexible RJ45 and SFP port combination
  • Smart PoE Power Supply: PoE network management, IEEE802.3af/at compliance, automatic device identification, priority mechanism
  • Strong Business Processing: ERPS ring network, STP/RSTP/MSTP support, VLAN flexibility, aggregation, QoS, ACL, IGMP multicast
  • Security: Port isolation, storm control, IP+MAC+port+VLAN binding, 802.1X authentication
  • Stable & Reliable: CE, FCC, RoHS certifications, LED status indicators, low power consumption, excellent heat dissipation
  • Easy O&M Management: CPU monitoring, HTTPS/SSL/SSH encryption, RMON, system logs, diverse management methods

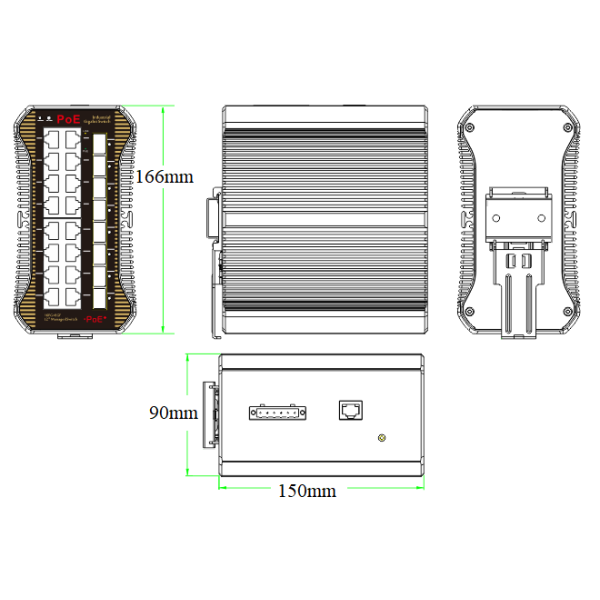

Product Dimension
L2+ Managed 24 Port Gigabit Industrial Fiber PoE Switch With 52Gbps Switching Capacity

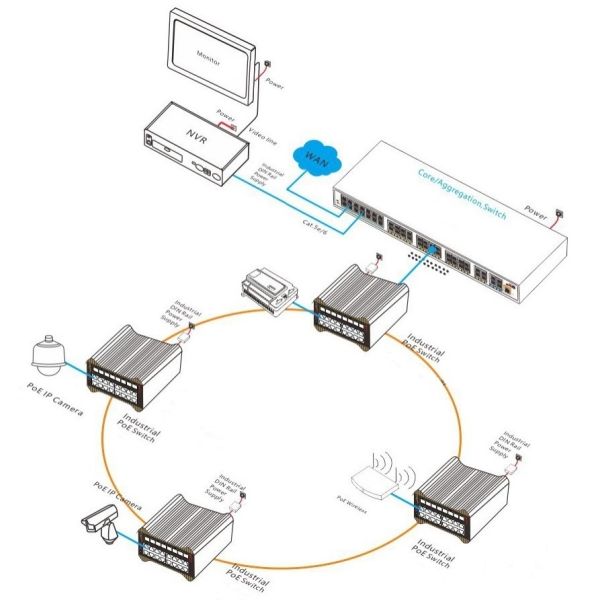

Application Scenario
L2+ Managed 24 Port Gigabit Industrial Fiber PoE Switch With 52Gbps Switching Capacity
Ordering Information
Model Description Recommended Power Supply
ONV-IPS33024PM-8F L2+ managed industrial PoE fiber switch with 16×10/100/1000M RJ45 ports and 8×100/1000M uplink SFP fiber ports. Port 1-16 support IEEE802.3af/at PoE standard. Supports dual DC redundant power input and DIN rail mounting. 240W/480W
Note: The optical module and power supply are not included and need to be purchased separately.

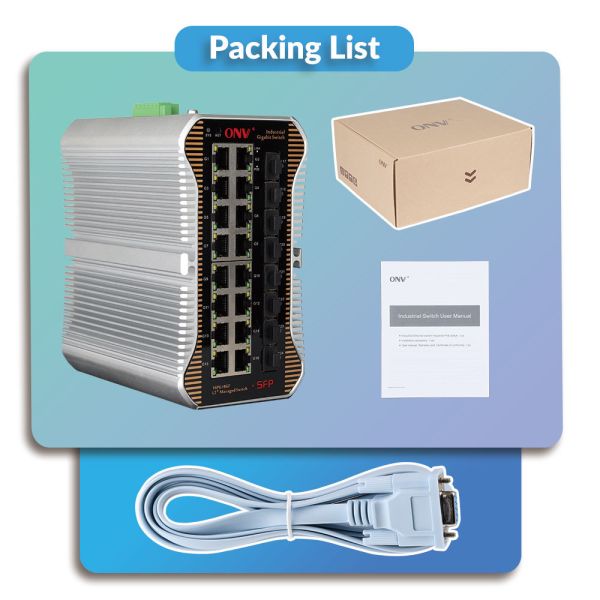

Packing List
Item Qty Unit
24-port Gigabit managed industrial PoE switch 1 Set
RJ45-DB9 Adapter Cable 1 PC
User Guide 1 PC
Warranty Card and Certificate of Conformity 1 PC
Related Products
Model Description
ONV-IPS33084PFM L2+ managed industrial PoE fiber switch with 4×10/100/1000M RJ45 ports and 4×100/1000M uplink SFP fiber ports
ONV-IPS33108PFM L2+ managed industrial PoE fiber switch with 8×10/100/1000M RJ45 ports and 2×100/1000M uplink SFP fiber ports
ONV-IPS33148PFM L2+ managed industrial PoE fiber switch with 10×10/100/1000M RJ45 ports and 4×100/1000M uplink SFP fiber ports
ONV-IPS33168PFM L2+ managed industrial PoE fiber switch with 8×10/100/1000M RJ45 ports and 8×100/1000M uplink SFP fiber ports
ONV-IPS33168PFM-4GF L2+ managed industrial PoE fiber switch with 12×10/100/1000M RJ45 ports and 4×100/1000M uplink SFP fiber ports
