10 Port Gigabit Managed PoE Switch With 30W Per Port And 20Gbps Switching Capacity
10 Port Gigabit Managed PoE Switch With 30W Per Port And 20Gbps Switching Capacity
10 Port Gigabit Managed PoE Switch With 30W Per Port And 20Gbps Switching Capacity
10 Port Gigabit Managed PoE Switch With 30W Per Port And 20Gbps Switching Capacity
10 Port Gigabit Managed PoE Switch With 30W Per Port And 20Gbps Switching Capacity
10 Port Gigabit Managed PoE Switch With 30W Per Port And 20Gbps Switching Capacity
10 Port Gigabit Managed PoE Switch With 30W Per Port And 20Gbps Switching Capacity
10 Port Gigabit Managed PoE Switch With 30W Per Port And 20Gbps Switching Capacity
10 Port Gigabit Managed PoE Switch With 30W Per Port And 20Gbps Switching Capacity
10 Port Gigabit Managed PoE Switch With 30W Per Port And 20Gbps Switching Capacity
10 Port Gigabit Managed PoE Switch With 30W Per Port And 20Gbps Switching Capacity
10 Port Gigabit Managed PoE Switch With 30W Per Port And 20Gbps Switching Capacity
Specifications
Payment Terms :
T/T,Western Union
Delivery Time :
2-8 work days
Packaging Details :
Packaging dimensions: 311*245*74mm, weight: 1.9kg, Carton dimensions: 480*430*352mm, 10 pcs/carton, weight: 20kg
Switch capacity :
20Gbps
Function :
POE,VLAN Support,QoS,LACP
Max PoE power :
30W per port
Dimensions :
270*181*44.5mm
Forwarding rate :
14.88Mpps
Place of Origin :
China
Total PoE power :
130W/250W
Brand Name :
ONV
MOQ :
1
Operating temperature :
-20°C~55°C
Model Number :
ONV-POE33108PFM
Certification :
CE, FCC, RoHS
Transmission rate :
10/100/1000Mbps
Supply Ability :
500000 pcs/month
Port count :
10
Power consumption :
Standby<8W, full load<120W
Description
10-port Gigabit Managed PoE Switch
Overview

The ONV-POE33108PFM is a Gigabit managed PoE switch independently developed by ONV. It features 8×10/100/1000Base-T adaptive RJ45 ports and 2×100/1000Base-X SFP fiber ports. Ports 1-8 support IEEE802.3af/at PoE standards with single-port PoE power up to 30W. As a PoE power supply device, it automatically detects and identifies compliant power-receiving devices, providing power through network cables to wireless APs, IP cameras, IP phones, building access control systems, and other PoE terminal devices. Ideal for hotels, campuses, parks, supermarkets, scenic spots, factory dormitories, and small-to-medium enterprises seeking economical, high-density PoE networking solutions.
The ONV-POE33108PFM supports L2+ network management, IPv4/IPv6 management, software/static routing, comprehensive security mechanisms, ACL/QoS strategies, and rich VLAN functionality for easy management. It features multiple network redundancy protocols including STP/RSTP/MSTP (<50ms) and ERPS (<20ms) for enhanced link backup and reliability. Configuration options include Web, CLI, SNMP, and Telnet management.

Technical Specifications
ModelONV-POE33108PFMONV-POE33108PFM-at
Interface Characteristics
Fixed Port1×Console RS232 port, 8×10/100/1000Base-T PoE ports, 2×100/1000Base-X SFP fiber ports
Ethernet PortPort 1-8 support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission10BASE-T: Cat3,4,5 UTP (≤100m); 100BASE-TX: Cat5+ UTP (≤100m); 1000BASE-T: Cat5e+ UTP (≤100m)
Optical Fiber PortNo optical module included (optional single/multi-mode, single/dual fiber modules)
Chip Parameters
Switching Capacity20Gbps (non-blocking)
Forwarding Rate14.88Mpps @64byte
PoE & Power Supply
PoE PortsPort 1-8
Max Power Per Port30W, IEEE802.3af/at
Total Power/Input Voltage130W/AC100-240V250W/AC100-240V
Physical Parameters
Dimensions270×181×44.5mm
Net/Gross Weight1.3kg/1.9kg1.5kg/2.1kg
Certification & Warranty
CertificationCE, FCC Part 15, RoHS
Warranty3 years, lifelong maintenance
10 Port Gigabit Managed PoE Switch With 30W Per Port And 20Gbps Switching Capacity
Key Features
  • Gigabit Access with SFP Uplink: Non-blocking wire-speed forwarding, full/half-duplex support, flexible RJ45 and SFP port combinations
  • Smart PoE Power Supply: IEEE802.3af/at compliant, automatic device identification, port priority mechanism, comprehensive PoE management
  • Advanced Business Processing: ERPS ring network, STP/RSTP/MSTP support, VLAN flexibility, aggregation, QoS, ACL, and multicast protocols
  • Enhanced Security: Port+MAC binding, port isolation, 802.1X authentication, broadcast storm suppression
  • Reliable Operation: CE, FCC, RoHS certified, self-developed power supply, excellent heat dissipation, low power consumption
  • Easy Management: Comprehensive monitoring, multiple encryption methods, various management interfaces including Web, CLI, and SNMP

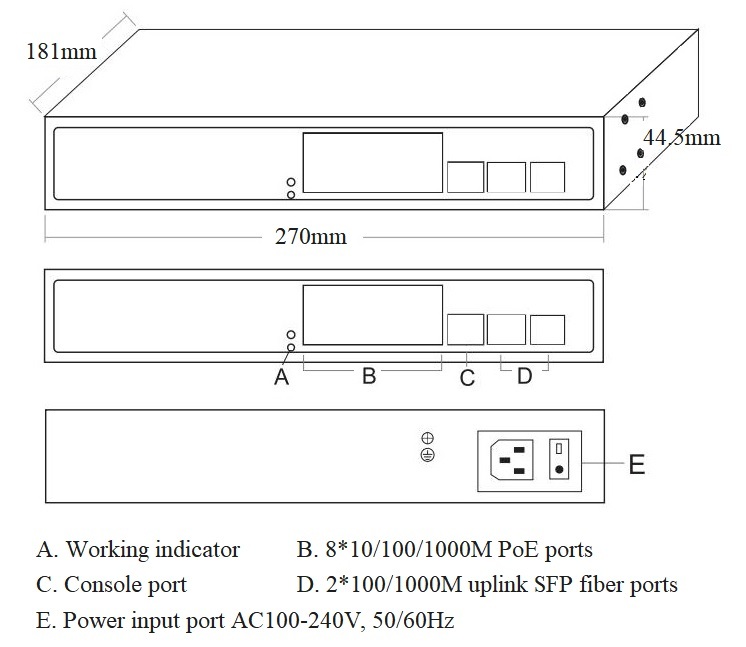

Dimensions
10 Port Gigabit Managed PoE Switch With 30W Per Port And 20Gbps Switching Capacity

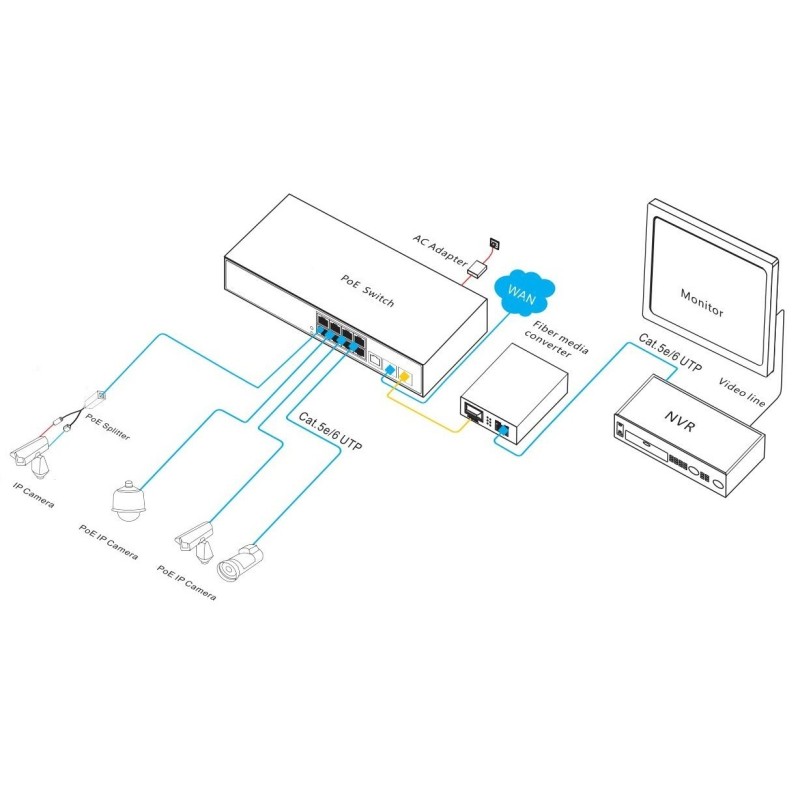

Application
10 Port Gigabit Managed PoE Switch With 30W Per Port And 20Gbps Switching Capacity
Ordering Information
ModelDescriptionBuilt-in Power Supply
ONV-POE33108PFML2+ managed PoE switch with 8×10/100/1000M RJ45 ports and 2×100/1000M uplink SFP fiber ports130W
ONV-POE33108PFM-at250W

Note: Optical module not included and must be purchased separately.

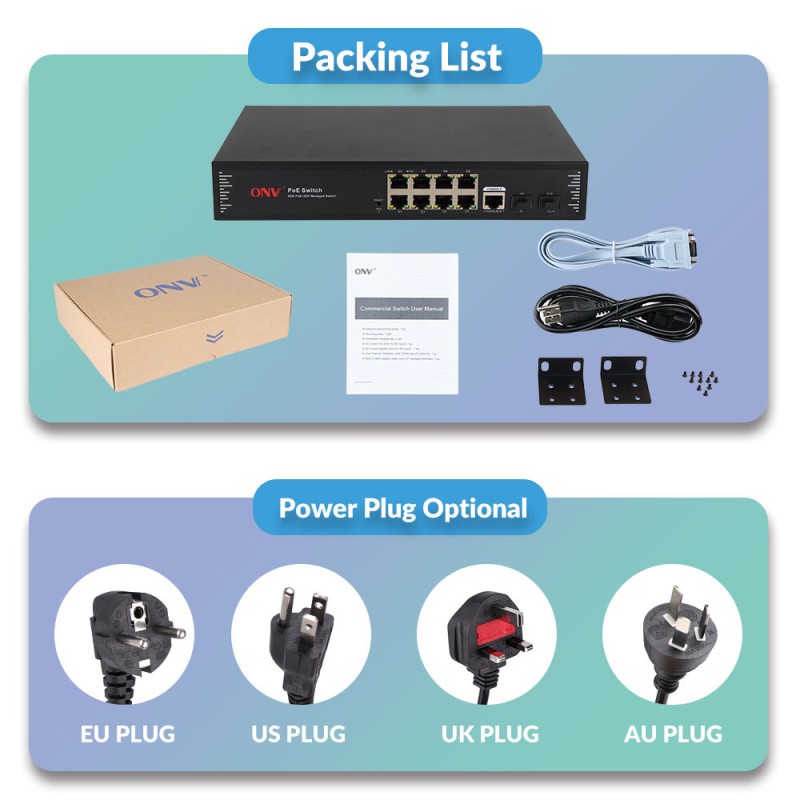

Packing List
ItemQuantityUnit
10-port Gigabit managed PoE switch1Set
RJ45-DB9 Adapter Cable1PC
AC Power Cable1PC
Mounting Kit1Set
User Guide1PC
Warranty Card and Certificate1PC
Related Products
ModelDescription
ONV-POE33018PFM16×10/100/1000M RJ45 + 2×SFP, 250W built-in power
ONV-POE36028PFM24×10/100/1000M RJ45 + 4×SFP+, 400W built-in power
ONV-POE36036PFM24×10/100/1000M RJ45 + 8×SFP + 4×SFP+, 400W built-in power
ONV-POE36048PFM48×10/100/1000M RJ45 + 4×SFP+, 600W built-in power
