48 Port PoE L3 Managed Switch with 10G Uplink for High-Density Power Supply
48 Port PoE L3 Managed Switch with 10G Uplink for High-Density Power Supply
48 Port PoE L3 Managed Switch with 10G Uplink for High-Density Power Supply
48 Port PoE L3 Managed Switch with 10G Uplink for High-Density Power Supply
48 Port PoE L3 Managed Switch with 10G Uplink for High-Density Power Supply
48 Port PoE L3 Managed Switch with 10G Uplink for High-Density Power Supply
48 Port PoE L3 Managed Switch with 10G Uplink for High-Density Power Supply
48 Port PoE L3 Managed Switch with 10G Uplink for High-Density Power Supply
48 Port PoE L3 Managed Switch with 10G Uplink for High-Density Power Supply
48 Port PoE L3 Managed Switch with 10G Uplink for High-Density Power Supply
48 Port PoE L3 Managed Switch with 10G Uplink for High-Density Power Supply
48 Port PoE L3 Managed Switch with 10G Uplink for High-Density Power Supply
Specifications
Switching Capacity :
216Gbps (non-blocking)
Model Number :
ONV-POE58052PFM
Payment Terms :
T/T,Western Union
Forwarding Rate :
131Mpps @64byte
Certification :
CE, FCC, RoHS
Supply Ability :
500000pcs/month
PoE Port :
Port 1-48
Place of Origin :
China
Delivery Time :
2-7 work days
Max Power Per Port :
30W, IEEE802.3af/at
Packaging Details :
Packaging dimensions: 525*390*95mm, weight: 5.7kg, Carton dimensions: 550*410*500mm, 3 pcs/carton, weight: 18.5kg
Ethernet Port :
Ports 1-48 can support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption
Brand Name :
ONV
MOQ :
1
Description
52-port 10G Uplink L3 Managed PoE Switch

The ONV-POE58052PFM is a 10G uplink managed PoE fiber switch independently developed by ONV. It features 48×10/100/1000Base-T adaptive RJ45 ports and 4×1/10G uplink SFP+ fiber ports. Ports 1-48 support the IEEE 802.3af/at PoE standard with maximum PoE power of 30W per port. As a PoE power supply device, it automatically detects and recognizes compliant power-receiving equipment and supplies power through network cables to PoE terminal equipment such as wireless APs, IP cameras, VoIP phones, and building visual access control intercoms.

Technical Specifications
Model ONV-POE58052PFM
Fixed Ports 1×Console RS232 port, 4×1/10G uplink SFP+ fiber ports, 48×10/100/1000Base-T PoE ports
Ethernet Port Ports 1-48 support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission 10BASE-T: Cat3,4,5 UTP (≤100m), 100BASE-TX: Cat5 or later UTP (≤100m), 1000BASE-T: Cat5e/6 or later UTP (≤100m)
Optical Fiber Port Default does not include optical module (optional single-mode/multi-mode, single fiber/dual fiber optical module, LC)
Switching Capacity 216Gbps (non-blocking)
Forwarding Rate 131Mpps @64byte
PoE Ports Port 1-48
Max Power Per Port 30W, IEEE802.3af/at
Power Consumption Standby <30W, full load <600W
Dimension 440×290×44.5mm
Installation Desktop, 1U/19" cabinet
Warranty 3 years, lifelong maintenance
Key Features
  • Gigabit Access with 1/10G SFP+ Fiber Ports: Non-blocking wire-speed forwarding, flexible networking for various scenarios
  • Smart PoE Power Supply: PoE network management, automatic device identification, 48×PoE ports for security monitoring and wireless coverage
  • Strong Business Processing Capability: ERPS ring network, STP/RSTP/MSTP, VLAN, aggregation, QoS, ACL, IGMP multicast
  • Security: Port isolation, IP+MAC+port+VLAN binding, 802.1X authentication
  • Stable & Reliable: CE, FCC, RoHS certified, excellent heat dissipation, stable operation
  • Easy O&M Management: Multiple management methods including Web, CLI, SNMP, Telnet
Product Images
48 Port PoE L3 Managed Switch with 10G Uplink for High-Density Power Supply 48 Port PoE L3 Managed Switch with 10G Uplink for High-Density Power Supply

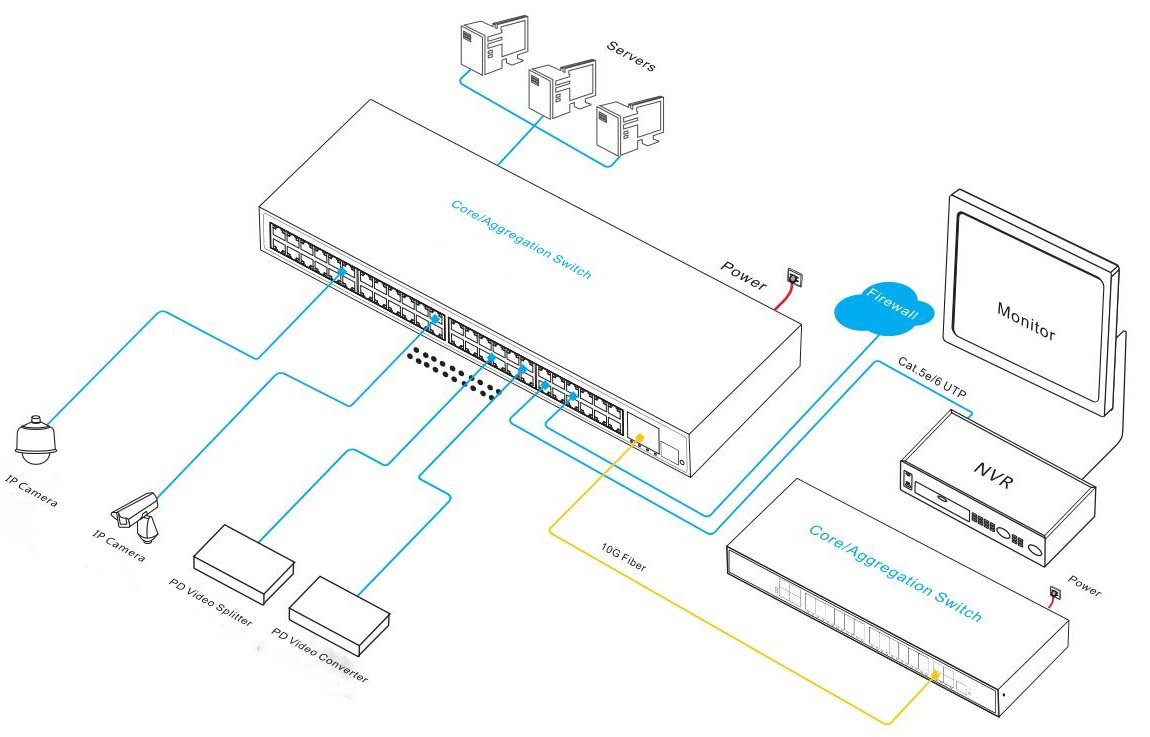

Application Diagram
48 Port PoE L3 Managed Switch with 10G Uplink for High-Density Power Supply
Ordering Information
Model Description Built-in Power Supply
ONV-POE58052PFM L3 managed PoE switch with 48×10/100/1000M RJ45 ports and 4×1/10G uplink SFP+ fiber ports 600W

Note: Optical module is not included and needs to be purchased separately.

Packing List
Item Qty Unit
52-port 10G uplink managed PoE switch 1 PC
RJ45-DB9 Adapter Cable 1 PC
AC Power Cable 1 PC
Mounting Kit (Hanging Ear) 1 Pair
User Guide 1 PC
Warranty Card and Certificate of Conformity 1 PC
Related Products
Model Description
ONV-POE58028PFM L3 managed PoE switch with 24×10/100/1000M RJ45 ports and 4×1/10G uplink SFP+ fiber ports
ONV-POE58036PFM L3 managed PoE switch with 24×10/100/1000M RJ45 ports and 8×100/1000Base-X SFP fiber combo ports and 4×1/10G uplink SFP+ fiber ports
