Specifications
Switching Capacity :
240Gbps (non-blocking)
Model Number :
ONV-IPS57128PFM-bt
Place of Origin :
China
Forwarding Rate :
89.28Mpps @64byte
MOQ :
1
Dimension :
166*150*75mm
Supply Ability :
500000pcs/month
Packaging Details :
Packaging dimensions: 265*205*108mm, weight: 2.1kg, Carton dimensions: 490*440*270mm, 8 pcs/carton, weight: 18kg
Operation Temperature :
-40°C~+80°C
Delivery Time :
2-7 work days
Fixed Port :
4*1/10G uplink SFP+, 8*10/100/1000/2500Base-T bt PoE
Brand Name :
ONV
Certification :
CE, FCC, RoHS
Max Power Per Port :
90W, IEEE802.3 af/at/bt
Payment Terms :
T/T
Description
12-port 2.5G Managed Industrial BT PoE Switch
Product Overview

The ONV-IPS57128PFM-bt is a 2.5G managed industrial BT PoE switch independently developed by ONV. It features 8×10/100/1000/2500Base-T auto-sensing RJ45 ports and 4×1/10G SFP+ fiber ports. Ports 1-8 support IEEE 802.3af/at/bt PoE standards, with a single port delivering up to 90W of PoE power.

As a PoE power supply device, it automatically detects and identifies compliant powered devices and supplies power via network cable. It can power high-power wireless APs, network PTZ cameras, high-power PoE lighting, industrial sensors, and high-power network control equipment, meeting the needs of network environments requiring high-density, high-power PoE power.

Ideal for building economical, efficient, stable, and reliable communication networks in industrial scenarios including intelligent transportation, rail transit, power, mining, metallurgy, and green energy construction.

Technical Specifications
Model ONV-IPS57128PFM-bt
Fixed Ports Power failure alarm switch port (FAULT), 1×Console RS232 port, 4×1/10G uplink SFP+ fiber ports, 8×10/100/1000/2500Base-T bt PoE ports, 2 set V+, V- redundant DC power ports
Ethernet Port Ports 1-8 support 10/100/1000/2500Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission 10BASE-T: Cat3,4,5 UTP (≤100m), 100BASE-TX: Cat5 or later UTP (≤100m), 1000BASE-T: Cat5e or later UTP (≤100m), 2500BASE-T: Cat6a or later UTP (≤100m)
Optical Fiber Port Default does not include optical module (optional single-mode/multi-mode, single fiber/dual fiber optical module, LC)
Network Management Type L3
Switching Capacity 240Gbps (non-blocking)
Forwarding Rate 89.28Mpps @64byte
PoE Ports Port 1-8
Max Power Per Port 90W, IEEE802.3 af/at/bt
Power Consumption Standby <13W, full load af <120W, at <240W, bt <480W
Operation Temperature/Humidity -40°C to +80°C, 5% to 90% RH non-condensing
Dimension (L×W×H) 166×150×75mm
Installation Desktop, 35mm DIN Rail
Warranty 5 years, lifelong maintenance
Key Features
2.5G Access with 1/10G SFP+ Uplink
  • Support non-blocking wire-speed forwarding
  • Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure
  • Flexible 2.5G RJ45 port and 1/10G uplink SFP+ fiber port combination for various scenarios
Smart PoE Power Supply
  • Comply with IEEE802.3 af/at/bt PoE standard
  • Automatically identify PoE devices for power supply without damaging non-PoE devices
  • 8×10/100/1000/2500Base-T RJ45 ports support bt PoE power
  • Support PoE network management functions including port on/off, power status check, and time scheduling
Advanced Business Processing
  • Support ERPS ring network and STP/RSTP/MSTP for link backup and loop elimination
  • Support IEEE802.1Q VLAN with flexible VLAN division, Voice VLAN, and QinQ configuration
  • Support static and dynamic aggregation for increased bandwidth and load balancing
  • Comprehensive QoS with multiple priority modes and queue scheduling algorithms
  • ACL support for flexible security access control policies
  • IGMP V1/V2/V3 multicast protocol support for multi-terminal video applications
Enhanced Security
  • Port isolation and port broadcast storm suppression
  • IP+MAC+port+VLAN quadruple flexible combination binding
  • 802.1X authentication for LAN computer authorization control
Reliability & Durability
  • CE, FCC, RoHS certifications
  • User-friendly LED indicators for device status monitoring
  • Low power consumption with aluminum alloy housing for excellent heat dissipation
Easy Operation & Maintenance
  • Support CPU monitoring, memory monitoring, and Ping detection
  • Secure management via HTTPS, SSLV3, SSHV1/V2 encryption
  • System log and port traffic statistics for network optimization
  • LLDP support for link status monitoring
  • Multiple management methods: Web, CLI, SNMP, Telnet

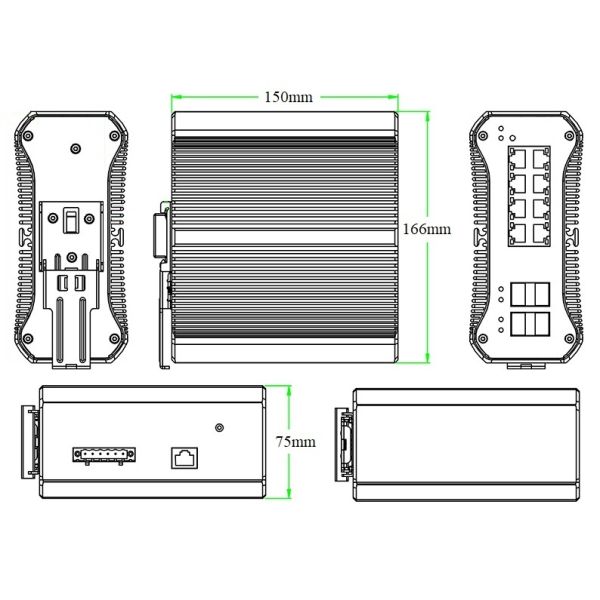

Dimensions
2.5G Managed Industrial BT PoE Switch with 90W PoE and L3 Network Management

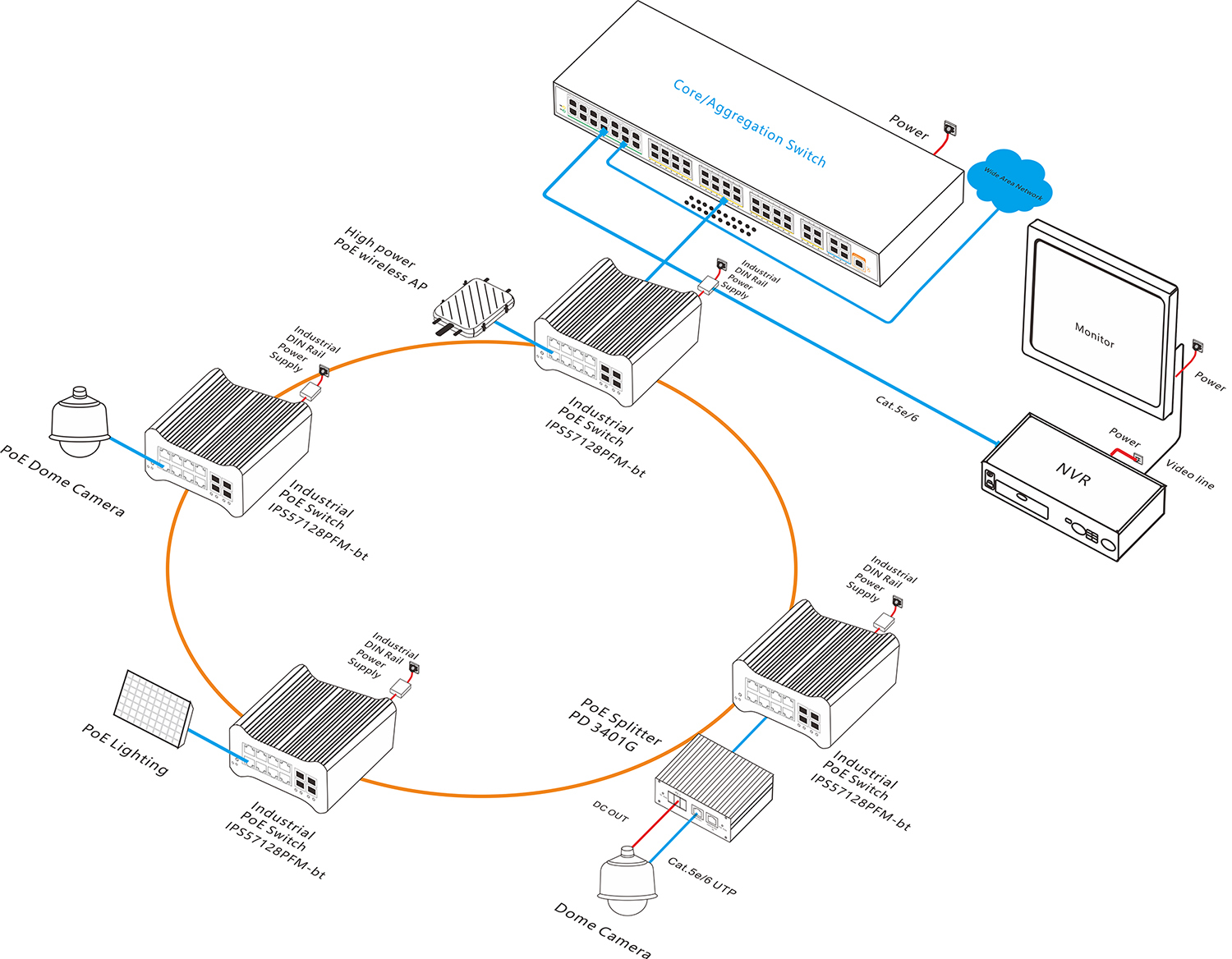

Application Scenarios
2.5G Managed Industrial BT PoE Switch with 90W PoE and L3 Network Management
Ordering Information
Model Description Recommended Power Supply
ONV-IPS57128PFM-bt L3 managed industrial BT PoE switch with 8×10/100/1000/2500M RJ45 ports and 4×1/10G uplink SFP+ fiber ports. Ports 1-8 support IEEE 802.3 af/at/bt PoE standard. Supports dual DC redundant power input and DIN rail mounting. 120W/240W/480W
Note: The optical module and power supply are not included and need to be purchased separately.
Packing List
Item Quantity Unit
12-port 2.5G managed industrial BT PoE switch 1 PC
RJ45-DB9 Adapter Cable 1 PC
User Guide 1 PC
Warranty Card and Certificate of Conformity 1 PC
Optional Optical Modules
Product Model Description Unit
1.25G Optical Module 2630-G Industrial SFP optical module, 1.25G, multi-mode dual fiber 850nm, 550m, LC, DDM PC
2632-G Industrial SFP optical module, 1.25G, single-mode dual fiber 1310nm, 20km, LC, DDM PC
2612-T-G Industrial SFP optical module, 1.25G, single-mode single fiber TX1310nm/RX1550nm, 20km, LC, DDM PC
2613-R-G Industrial SFP optical module, 1.25G, single-mode single fiber TX1550nm/RX1310nm, 20km, LC, DDM PC
2612-T-SC-G Industrial SFP optical module, 1.25G, single-mode single fiber TX1310nm/RX1550nm, 20km, SC, DDM PC
2613-R-SC-G Industrial SFP optical module, 1.25G, single-mode single fiber TX1550nm/RX1310nm, 20km, SC, DDM PC
10G Optical Module 6630-G Industrial SFP+ optical module, 10G, multi-mode dual fiber 850nm, 300m, LC, DDM PC
7832-G Industrial SFP+ optical module, 10G, single-mode dual fiber 1310nm, 20km, LC, DDM PC
7832-33-G Industrial SFP+ optical module, 10G, single-mode single fiber TX1330nm/RX1270nm, 20km, LC, DDM PC
7832-27-G Industrial SFP+ optical module, 10G, single-mode single fiber TX1270nm/RX1330nm, 20km, LC, DDM PC
Power Supply Options
Product Model Description Unit
120W DIN Rail Industrial Power Supply GWS-DP120-48 DIN Rail 120W single output, AC100V-240V input, DC48V 2.5A output, -40℃ to 70℃ operation PC
240W DIN Rail Industrial Power Supply GWS-DP240-48 DIN Rail 240W single output, AC100V-240V input, DC48V 5.0A output, -40℃ to 70℃ operation PC
480W DIN Rail Industrial Power Supply GWS-DP480-48 DIN Rail 480W single output, AC100V-240V input, DC48V 10.0A output, -40℃ to 70℃ operation PC
