Specifications
Place of Origin :
China
Certification :
CE, FCC, RoHS
Packaging Details :
Packaging dimensions: 250*205*87mm, weight: 1.3kg, Carton dimensions: 470*425*525mm, 20 pcs/carton, weight: 27.5kg
Forwarding rate :
23.81Mpps
Max power per port :
30W
MOQ :
1
ower consumption :
Standby<10W, full load<120W
Brand Name :
ONV
Delivery Time :
2-8 work days
Model Number :
ONV-IPS33168PFM
Function :
POE,QoS,VLAN Support,SNMP,LACP
Poe standard :
IEEE802.3af/at
Supply Ability :
500000pcs/month
Switching Capacity :
52Gbps
Input voltage :
DC44-57V
Payment Terms :
T/T,Western Union
PoE ports :
8
Port count :
16
Description
Product Overview
The ONV-IPS33168PFM is a Gigabit managed industrial PoE switch independently developed by ONV. It features 8×100/1000Base-X SFP fiber ports and 8×10/100/1000Base-T adaptive RJ45 ports. Ports 1-8 support IEEE 802.3af/at PoE standard with single-port PoE power up to 30W. As a PoE power supply device, it automatically detects and recognizes compliant devices, supplying power through network cables to PoE terminal equipment such as wireless APs, IP cameras, VoIP systems, and industrial sensors. Ideal for high-density PoE power supply requirements in intelligent transportation, rail transit, power industry, mining, petroleum, shipping, metallurgy, and green energy construction applications.
This switch offers L2+ network management functionality, supporting IPv4/IPv6 management, static route forwarding, security protection mechanisms, ACL/QoS policies, and VLAN configurations for easy management and maintenance. It supports multiple network redundancy protocols including STP/RSTP/MSTP (<50ms) and ERPS (<20ms) to enhance link backup and network reliability. When network failures occur, communication is quickly restored to ensure uninterrupted operation for critical applications.
Technical Specifications
Model ONV-IPS33168PFM
Fixed Ports 1×Console RS232 port, 8×10/100/1000M PoE ports, 8×100/1000M SFP fiber ports, 2×DC power ports
Ethernet Ports Ports 1-8 support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaptation
Twisted Pair Transmission 10BASE-T: Cat3,4,5 UTP (≤100m), 100BASE-TX: Cat5+ UTP (≤100m), 1000BASE-T: Cat5e+ UTP (≤100m)
Optical Fiber Ports Gigabit SFP ports (optical modules optional)
Switching Capacity 52Gbps (non-blocking)
Forwarding Rate 23.81Mpps @64byte
PoE Ports Ports 1-8
Max Power Per Port 30W (IEEE 802.3af/at)
Input Voltage DC44-57V
Operating Temperature -40°C to +80°C
Dimensions 165×148×54mm
Installation Desktop or 35mm DIN Rail
Certifications CE, FCC, RoHS
Warranty 5 years, lifelong maintenance
16 Port Gigabit Industrial PoE Switch Vibration Resistant for Long Distance NetworksKey Features
Gigabit Access
  • Non-blocking wire-speed forwarding
  • Full-duplex based on IEEE802.3x and half-duplex based on Backpressure
  • Gigabit RJ45 port and SFP fiber port combination for flexible networking
Smart PoE Power Supply
  • PoE network management for power allocation, priority setting, status viewing, and time scheduling
  • Compliant with IEEE 802.3af/at standards, automatically identifies PoE devices
  • PoE port priority ensures high-priority ports receive power during limited capacity
  • 8×10/100/1000Base-T RJ45 ports support PoE for security monitoring and industrial automation
Advanced Business Processing
  • ERPS ring network and STP/RSTP/MSTP for layer 2 loop elimination and link backup
  • IEEE802.1Q VLAN with flexible VLAN division, Voice VLAN, and QinQ configuration
  • Static and dynamic aggregation for increased bandwidth and load balancing
  • QoS with port-based, 802.1P-based, and DSCP-based priority modes
  • ACL for data packet filtering and security access control
  • IGMP V1/V2/V3 multicast protocol for video surveillance and conference requirements
Enhanced Security
  • Port isolation and storm control
  • IP+MAC+port+VLAN quadruple binding function
  • 802.1X authentication for LAN computer access control
Reliable Operation
  • CE, FCC, RoHS certifications
  • User-friendly LED indicators for device status monitoring
  • Low power consumption with aluminum alloy housing for optimal heat dissipation
Easy Operation & Maintenance
  • CPU monitoring, memory monitoring, Ping detection, and cable detection
  • Secure management with HTTPS, SSLV3, SSH V1/V2 encryption
  • RMON, system logs, and port traffic statistics for network optimization
  • LLDP for link communication status monitoring
  • Multiple management methods: Web, CLI, SNMP, Telnet

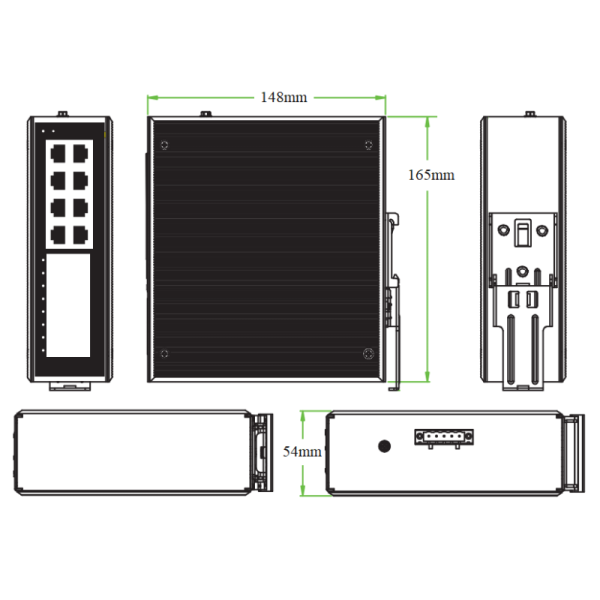

Product Dimensions
16 Port Gigabit Industrial PoE Switch Vibration Resistant for Long Distance Networks

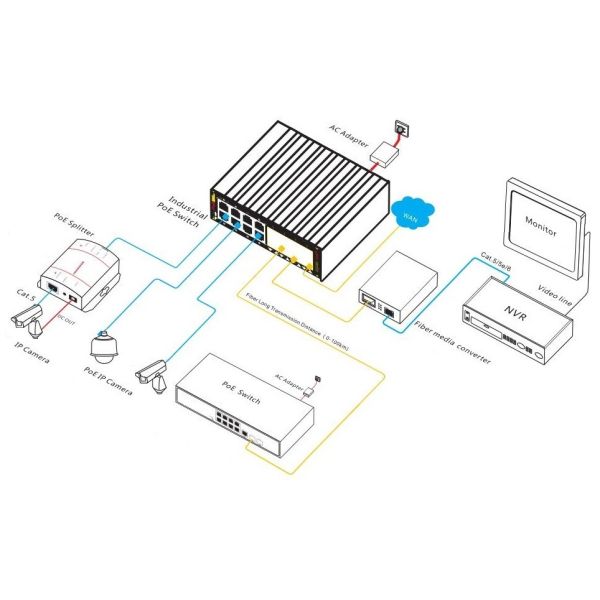

Application Scenarios
16 Port Gigabit Industrial PoE Switch Vibration Resistant for Long Distance Networks
Designed for demanding industrial environments including intelligent transportation systems, rail transit networks, power industry applications, mining operations, petroleum facilities, shipping infrastructure, metallurgy plants, and green energy construction projects.
Ordering Information
Model Description Recommended Power Supply
ONV-IPS33168PFM L2+ managed industrial PoE switch with 8×100/1000M SFP fiber ports and 8×10/100/1000M RJ45 ports (Ports 1-8 support IEEE 802.3af/at PoE) 120W/240W
Note: Optical modules and power supply are not included and must be purchased separately.
Packing List
Item Quantity Unit
16-port Gigabit managed industrial PoE switch 1 Set
RJ45-DB9 Adapter Cable 1 PC
User Guide 1 PC
Warranty Card and Certificate of Conformity 1 PC
Related Products
Model Description
ONV-IPS33064PFM L2+ managed industrial PoE switch with 4×RJ45 ports and 2×SFP fiber ports
ONV-IPS33084PFM L2+ managed industrial PoE switch with 4×RJ45 ports and 4×SFP fiber ports
ONV-IPS33108PFM L2+ managed industrial PoE switch with 8×RJ45 ports and 2×SFP fiber ports
ONV-IPS33148PFM L2+ managed industrial PoE switch with 10×RJ45 ports and 4×SFP fiber ports
ONV-IPS33168PFM-4GF L2+ managed industrial PoE switch with 12×RJ45 ports and 4×SFP fiber ports
